Warning: 128 Bit remotes code to 64 Bit openers, but 64 Bit remotes will not code to 128 Bit gate & garage openers.
The older version B&D openers with 64 Bit (Tri Tran v1, v2 and Mini) are compatible with the B&D Garage door remote – TB5 and TB6 but the 64 Bit B&D garage remotes (Tri Tran v1, v2 and Mini) are not compatible with the newer version 128 Bit openers (using TB6 and TB5). This means that if you upgrade your 64 Bit opener to a new 128 Bit opener your older remotes will not work along side the new remotes.
This PREMIUM quality remote replaces the classic version 1&2 B&D TRI-TRAN. It features 4 black buttons in a round configuration for ease of use and has a metal back bone. A built in key-ring connection makes attachment easy and the well rounded edges gives the remote an exciting modern look.
Working on three frequencies one either side of 433.92MHz with B&D’s own rolling code algorithm, this stylish remote looks & works to perfection.
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
B&D Motors (Installed prior to 2021) direct to receiver
Press the CODE SET button and release
The CODE SET LED will illuminate to indicate the opener is in Code Learn Mode. If a valid code is not stored within 15 seconds the opener will exit this mode.
Press the remote button you wish to open/close the door
The CODE SET LED will begin to flash
Press the Same button again
The Code SET LED will illuminate for one second then go out.
B&D Motors (Installed prior to 2021) clear ALL stored transmitter codes
If the CODE SET button is pressed and held for 6 seconds the CODE SET LED will blink rapidly for one second to indicate that all codes have been erased.
B&D Smart Motors (Installed 2021 onwards) programming Remote to Remote.
Note: You will need a genuine ATA working remote
Take your working ATA remote:
Press the button for the function you require until the door/gate is activated and release.
Then using a small needle or paperclip press on the Coding Bump in the middle of the remote firmly for two seconds – LED lights.
With your NEW Remote:
Within 10 seconds,press the remote button you would like to use to open/close the device for two seconds.
Pause for two seconds then press the same button again for two seconds – button should now be coded.
Wait for 10 seconds, then press the just coded remote button to confirm that it operates the device.
B&D Smart Motors (Installed 2021 onwards) programming direct from receiver
Remove the controls cover to access the buttons.

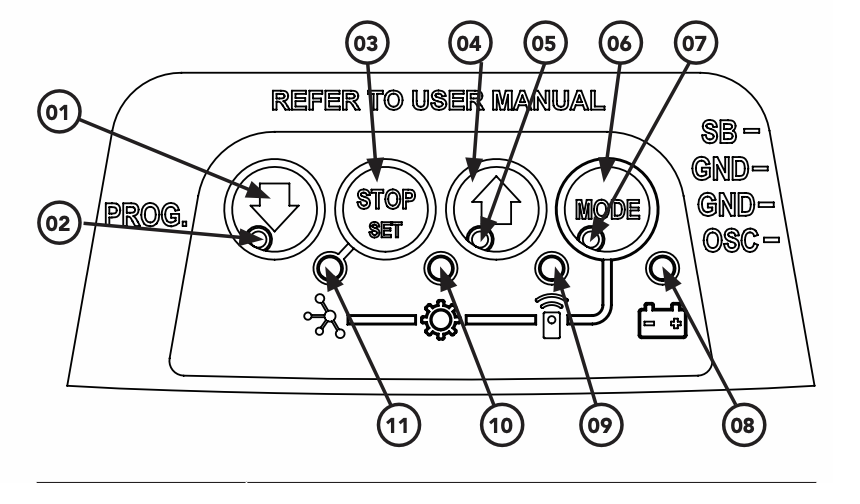

Press the MODE (6) button repetitively until the REMOTE INDICATOR (9) is lit
Press and HOLD the CLOSE (1) button to set OPEN/STOP/CLOSE function. The main light will start to flash rapidly.
On your New Remote:
Within 10 seconds, press the remote button you would like to use to open/close the device for two seconds.
Pause for two seconds then press the same button again for two seconds – button should now be coded.
Release both buttons. Press the MODE (6) button to exit and refit the control covers.
Warning: 128 Bit remotes code to 64 Bit openers, but 64 Bit remotes will not code to 128 Bit gate & garage openers.
The older version B&D openers with 64 Bit (Tri Tran v1, v2 and Mini) are compatible with the B&D Garage door remote – TB5 and TB6 but the 64 Bit B&D garage remotes (Tri Tran v1, v2 and Mini) are not compatible with the newer version 128 Bit openers (using TB6 and TB5). This means that if you upgrade your 64 Bit opener to a new 128 Bit opener your older remotes will not work along side the new remotes.
This PREMIUM quality remote replaces the classic version 1&2 B&D TRI-TRAN. It features 4 black buttons in a round configuration for ease of use and has a metal back bone. A built in key-ring connection makes attachment easy and the well rounded edges gives the remote an exciting modern look.
Working on three frequencies one either side of 433.92MHz with B&D’s own rolling code algorithm, this stylish remote looks & works to perfection.
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
B&D Motors (Installed prior to 2021) direct to receiver
Press the CODE SET button and release
The CODE SET LED will illuminate to indicate the opener is in Code Learn Mode. If a valid code is not stored within 15 seconds the opener will exit this mode.
Press the remote button you wish to open/close the door
The CODE SET LED will begin to flash
Press the Same button again
The Code SET LED will illuminate for one second then go out.
B&D Motors (Installed prior to 2021) clear ALL stored transmitter codes
If the CODE SET button is pressed and held for 6 seconds the CODE SET LED will blink rapidly for one second to indicate that all codes have been erased.
B&D Smart Motors (Installed 2021 onwards) programming Remote to Remote.
Note: You will need a genuine ATA working remote
Take your working ATA remote:
Press the button for the function you require until the door/gate is activated and release.
Then using a small needle or paperclip press on the Coding Bump in the middle of the remote firmly for two seconds – LED lights.
With your NEW Remote:
Within 10 seconds,press the remote button you would like to use to open/close the device for two seconds.
Pause for two seconds then press the same button again for two seconds – button should now be coded.
Wait for 10 seconds, then press the just coded remote button to confirm that it operates the device.
B&D Smart Motors (Installed 2021 onwards) programming direct from receiver
Remove the controls cover to access the buttons.
Press the MODE (6) button repetitively until the REMOTE INDICATOR (9) is lit
Press and HOLD the CLOSE (1) button to set OPEN/STOP/CLOSE function. The main light will start to flash rapidly.
On your New Remote:
Within 10 seconds, press the remote button you would like to use to open/close the device for two seconds.
Pause for two seconds then press the same button again for two seconds – button should now be coded.
Release both buttons. Press the MODE (6) button to exit and refit the control covers.
