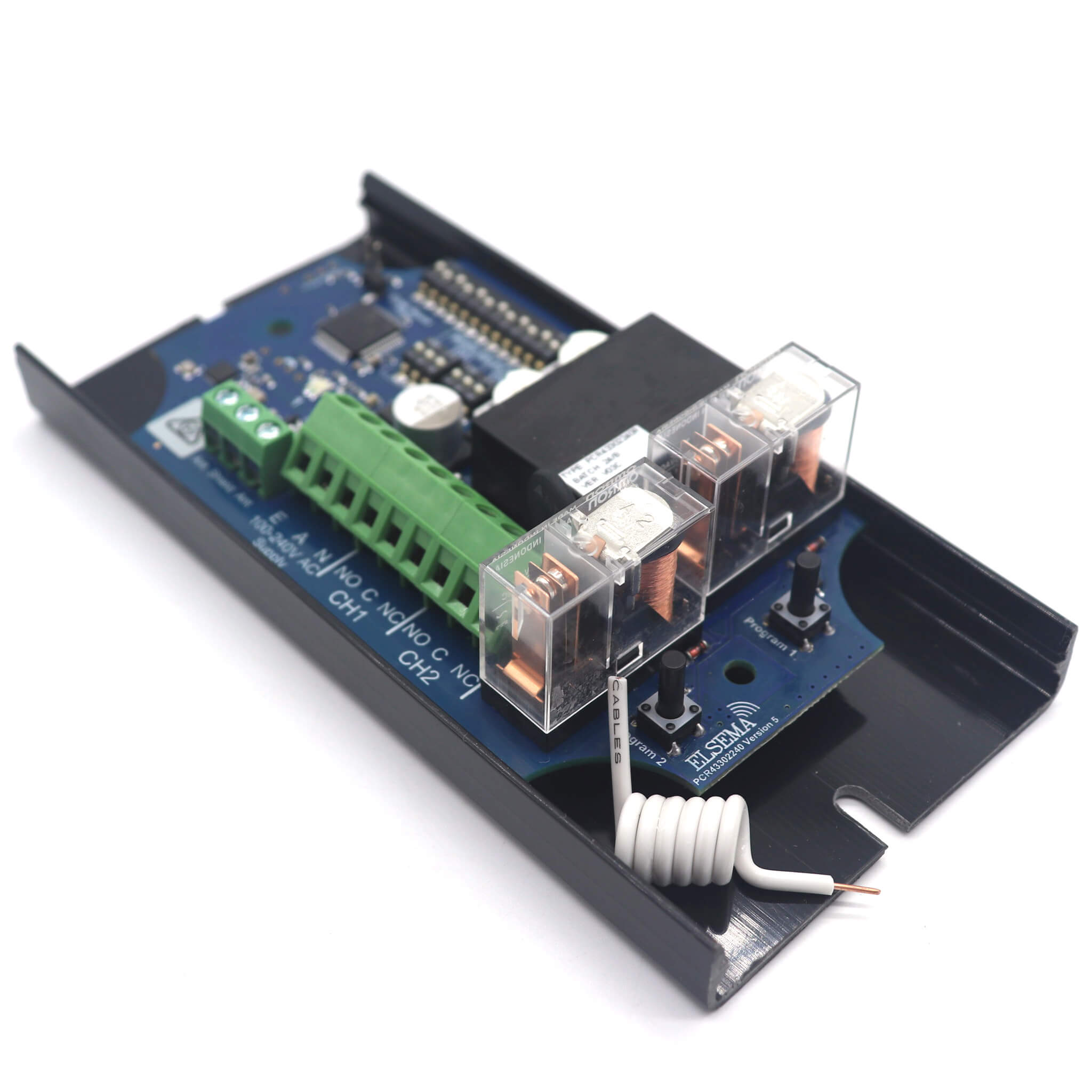

Elsema Penta PCR43302240R - 240V 2 Channel Receiver

Brand: Elsema

Elsema Logo

Elsema Penta PCR43302240R – 240V 2 Channel Receiver

Brand: Elsema

Elsema Logo

Includes:

  • Genuine Elsema Wire-In 2 Channel Receiver – 240V
  • Quick Mount
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

$115.95

Availability:

In stock

Availability:

In stock

Includes:

  • Genuine Elsema Wire-In 2 Channel Receiver - 240V
  • Quick Mount
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Includes:

  • Genuine Elsema 240V 2 Channel Receiver
  • Quick Mount
  • Coil Antenna
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

Features:

    • 240V 2 Channel Receiver with independent relay outputs (rated at 8 Amps, 240V AC)
    • Operates directly on 100-240V AC mains supply
    • Frequency hopping (433.10 to 434.70MHz) for secure and interference-free communication
    • Dual coding system: 12-way dip switch coding or encrypted coding with over 17 billion combinations
    • Unlimited remote pairing with PentaFOB® and PentaCODE® remotes
    • User-selectable output modes: momentary, latching, delayed off, and roller shutter modes
    • Antenna diversity for enhanced range and signal reliability
    • On-board diagnostic LEDs for quick troubleshooting and operation status
    • Compatible with FOB433 and PCK remote series

Applications for use:

  • Keyless access control for roller shutters, automatic gates, and garage doors
  • Equipment and machinery control in factories and warehouses
  • Home automation, such as controlling garden lights or swimming pool systems
  • Wireless security and lighting control
  • Industrial and agricultural equipment automation

Note:  This item is also available to purchase in enclosure – PCR43302240RE

The Elsema Penta PCR43302240R 240V 2 Channel Receiver is a powerful, reliable solution for controlling various devices wirelessly, operating directly on a 100-240V AC mains power supply. This receiver is equipped with two independent relay outputs, capable of switching loads up to 8 Amps at 240V AC, making it suitable for controlling roller shutters, automatic gates, doors, machinery, and other automated systems. With Elsema’s PentaFOB® and PentaCODE® remotes compatibility, it allows unlimited remote pairings, making it ideal for large-scale installations or multi-user environments.

The Elsema PCR43302240R operates on the 433.10 to 434.70MHz frequency band with frequency hopping technology, ensuring robust communication with minimal interference. The receiver offers flexible coding options, allowing installers to choose between the easy-to-set 12-way dip switch coding or encrypted coding with over 17 billion possible combinations for added security.

User-selectable relay output modes, including momentary, latching, delayed off, and roller shutter modes, provide versatility to meet various control needs. Antenna diversity ensures enhanced signal strength and extended range for consistent and reliable operation. This receiver is designed for industrial and commercial environments but is also adaptable for home automation and security applications.

Frequently Asked Questions:

What power supply does the Elsema PCR43302240R require?
The Elsema PCR43302240R is powered by a 100-240V AC mains supply, making it compatible with standard power systems.

How many remotes can I pair with this 240V 2 Channel Receiver?
This receiver supports unlimited remote pairings, making it scalable for both small and large installations, allowing multiple users to operate the system.

What coding options are available for this receiver?
The PCR43302240R offers dual coding options: 12-way dip switch coding for simple installations and encrypted coding with over 17 billion combinations for enhanced security.

What output modes does the Elsema PCR43302240R support?
The receiver supports several user-selectable modes, including momentary, latching, delayed off, and roller shutter mode, allowing flexibility in various applications.

Can this receiver be used for long-range applications?
Yes, the receiver features antenna diversity, ensuring robust and extended range communication. For longer-range needs, it is recommended to use the ANT433 series antenna.

Is there an enclosed version of the PCR43302240R?
Yes, the Elsema PCR43302240RE is the enclosed version of the receiver, offering additional protection for outdoor or industrial environments.

Weight.40 kg
Channels

2 channels

MPN

Does Not Apply

UPC

Does not apply

Brand

Elsema

Type

Application

, , , ,

AS62368.1 Battery Compliant

Not Applicable

Features

Easy Installation, Genuine, Multiple Frequency Hopper

Frequency

433.92 MHz

Items Included

Installation Instructions, Quick Mount, Receiver

Power Source

Requires Wiring to Power

Voltage

240V

Warranty

2 Years*

Supply Voltage100 to 240 Volts AC
Mains Frequency Band433.100 to 434.700MHz
Operating Temperature Range-5 to 50°C
Receiver Memory StorageUnlimited Remotes
Decoding SystemEncrypted 17 billion codes combinations or On board 12-way code switch
Outputs2 Voltage free change over relay outputs, rated at 8 Amps at 240Volts AC
Relay ContactsCommon (C), Normally Closed (NC) & Normally Open (NO)
ConnectionsScrew type terminal block
AntennaANT433 series for long range applications. Antenna wire for short range applications
Operating RangeRefer to the remote control or transmitter datasheet
Dimensions120 x 70 x 30mm
Weight140grams
Useable TransmittersFOB433 series and PCK series.

Block Diagram for Elsema PCR43302240R

Programming Instructions for PentaFOB® and PentaCODE® Remotes with the Elsema PCR43302240R Receiver

PentaFOB® Remote Programming

Method 1: Remote to Receiver

  1. Ensure that all switches on the receiver’s 12-way dip switch are set to “OFF.”
  2. Press and hold the program button on the receiver.
  3. Press the button on the PentaFOB® remote for 2 seconds.
    • The receiver’s LED will flash and then turn green.
  4. Release the button on the receiver and the remote.
  5. Test the remote by pressing its button to ensure the receiver responds.

Method 2: Remote to Remote (Near Receiver)

  1. Open the case of an already programmed remote.
  2. Press and release the program button on the back of the board (receiver enters learning mode).
  3. Press the button on the already programmed remote to activate the receiver.
  4. Press the button on the new remote you want to program for 2 seconds.
  5. Press the program button again on the already programmed remote to exit learning mode.
  6. Test the newly programmed remote to confirm it works.

Deleting Receivers Memory for PentaFOB® Remotes

  • Delete All Remotes: Short the Code Reset pins on the receiver for 10 seconds. This will erase all the remotes stored in the receiver’s memory.

PentaCODE® Remote Programming

Method 1: 12-Way Dip Switch Coding

  1. Set a unique code on the receiver’s 12-way dip switch by flipping the switches “On” or “Off” (do not use the factory default setting).
  2. Open the battery cover of the PentaCODE® remote.
  3. Match the 12-way dip switch on the remote to the code set on the receiver’s dip switch.
  4. Press button 1 on the remote. The receiver output should activate, confirmed by the receiver’s LED.
  • Programming Buttons 2, 3, or 4 to Other Receivers: To use buttons 2, 3, or 4 with other receivers, adjust dip switches 11 and 12 on the respective receivers as follows:
    ReceiverDip Switch 11Dip Switch 12
    1OffOff
    2OnOff
    3OffOn
    4OnOn
  • Ensure that dip switches 1 to 10 are the same on both the remotes and receivers.

Method 2: Encrypted Coding (All 12-Way Dip Switches “Off”)

  1. Press and hold the program button on the receiver.
  2. Press the button you want to program on the PentaCODE® remote for 2 seconds.
    • The receiver’s LED will flash green.
  3. Release the button on the receiver and the remote.
  4. The LED on the PentaCODE® remote will flash to confirm successful coding.

Method 3: Remote to Remote / Remote to Receiver Broadcasting

  • Broadcasting the Remote’s Code:
    1. Ensure all 12 dip switches on the remote are “Off.”
    2. Press and hold button 1, then toggle dip switch 12 “On” and then back to “Off.”
    3. The LED will stay on for 10 seconds, indicating the remote is broadcasting its code.



  • Broadcasting the Receiver’s Code:
    1. Ensure all 12 dip switches on the receiver are “Off.”
    2. Toggle dip switch 12 “On” and then back to “Off.”
    3. The green LED will remain on for 10 seconds, indicating the receiver is broadcasting its code.



  • Programming the New Remote:
    1. While broadcasting, press button 1 on the new remote for 1 second.
    2. Release the button. The LED will flash twice to confirm successful programming.

Broadcasting will remain active for 10 seconds or stop if any dip switch is turned on.

Deleting Receivers Memory for PentaCODE® Remotes

  • Delete All Remotes: Short the CC pin on the receiver for 10 seconds. This will erase all remotes stored in the receiver’s memory.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Includes:

  • Genuine Elsema 240V 2 Channel Receiver
  • Quick Mount
  • Coil Antenna
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

Features:

    • 240V 2 Channel Receiver with independent relay outputs (rated at 8 Amps, 240V AC)
    • Operates directly on 100-240V AC mains supply
    • Frequency hopping (433.10 to 434.70MHz) for secure and interference-free communication
    • Dual coding system: 12-way dip switch coding or encrypted coding with over 17 billion combinations
    • Unlimited remote pairing with PentaFOB® and PentaCODE® remotes
    • User-selectable output modes: momentary, latching, delayed off, and roller shutter modes
    • Antenna diversity for enhanced range and signal reliability
    • On-board diagnostic LEDs for quick troubleshooting and operation status
    • Compatible with FOB433 and PCK remote series

Applications for use:

  • Keyless access control for roller shutters, automatic gates, and garage doors
  • Equipment and machinery control in factories and warehouses
  • Home automation, such as controlling garden lights or swimming pool systems
  • Wireless security and lighting control
  • Industrial and agricultural equipment automation

Note:  This item is also available to purchase in enclosure – PCR43302240RE

The Elsema Penta PCR43302240R 240V 2 Channel Receiver is a powerful, reliable solution for controlling various devices wirelessly, operating directly on a 100-240V AC mains power supply. This receiver is equipped with two independent relay outputs, capable of switching loads up to 8 Amps at 240V AC, making it suitable for controlling roller shutters, automatic gates, doors, machinery, and other automated systems. With Elsema’s PentaFOB® and PentaCODE® remotes compatibility, it allows unlimited remote pairings, making it ideal for large-scale installations or multi-user environments.

The Elsema PCR43302240R operates on the 433.10 to 434.70MHz frequency band with frequency hopping technology, ensuring robust communication with minimal interference. The receiver offers flexible coding options, allowing installers to choose between the easy-to-set 12-way dip switch coding or encrypted coding with over 17 billion possible combinations for added security.

User-selectable relay output modes, including momentary, latching, delayed off, and roller shutter modes, provide versatility to meet various control needs. Antenna diversity ensures enhanced signal strength and extended range for consistent and reliable operation. This receiver is designed for industrial and commercial environments but is also adaptable for home automation and security applications.

Frequently Asked Questions:

What power supply does the Elsema PCR43302240R require?
The Elsema PCR43302240R is powered by a 100-240V AC mains supply, making it compatible with standard power systems.

How many remotes can I pair with this 240V 2 Channel Receiver?
This receiver supports unlimited remote pairings, making it scalable for both small and large installations, allowing multiple users to operate the system.

What coding options are available for this receiver?
The PCR43302240R offers dual coding options: 12-way dip switch coding for simple installations and encrypted coding with over 17 billion combinations for enhanced security.

What output modes does the Elsema PCR43302240R support?
The receiver supports several user-selectable modes, including momentary, latching, delayed off, and roller shutter mode, allowing flexibility in various applications.

Can this receiver be used for long-range applications?
Yes, the receiver features antenna diversity, ensuring robust and extended range communication. For longer-range needs, it is recommended to use the ANT433 series antenna.

Is there an enclosed version of the PCR43302240R?
Yes, the Elsema PCR43302240RE is the enclosed version of the receiver, offering additional protection for outdoor or industrial environments.

Weight.40 kg
Channels

2 channels

MPN

Does Not Apply

UPC

Does not apply

Brand

Elsema

Type

Application

, , , ,

AS62368.1 Battery Compliant

Not Applicable

Features

Easy Installation, Genuine, Multiple Frequency Hopper

Frequency

433.92 MHz

Items Included

Installation Instructions, Quick Mount, Receiver

Power Source

Requires Wiring to Power

Voltage

240V

Warranty

2 Years*

Supply Voltage100 to 240 Volts AC
Mains Frequency Band433.100 to 434.700MHz
Operating Temperature Range-5 to 50°C
Receiver Memory StorageUnlimited Remotes
Decoding SystemEncrypted 17 billion codes combinations or On board 12-way code switch
Outputs2 Voltage free change over relay outputs, rated at 8 Amps at 240Volts AC
Relay ContactsCommon (C), Normally Closed (NC) & Normally Open (NO)
ConnectionsScrew type terminal block
AntennaANT433 series for long range applications. Antenna wire for short range applications
Operating RangeRefer to the remote control or transmitter datasheet
Dimensions120 x 70 x 30mm
Weight140grams
Useable TransmittersFOB433 series and PCK series.

Block Diagram for Elsema PCR43302240R

Programming Instructions for PentaFOB® and PentaCODE® Remotes with the Elsema PCR43302240R Receiver

PentaFOB® Remote Programming

Method 1: Remote to Receiver

  1. Ensure that all switches on the receiver’s 12-way dip switch are set to “OFF.”
  2. Press and hold the program button on the receiver.
  3. Press the button on the PentaFOB® remote for 2 seconds.
    • The receiver’s LED will flash and then turn green.
  4. Release the button on the receiver and the remote.
  5. Test the remote by pressing its button to ensure the receiver responds.

Method 2: Remote to Remote (Near Receiver)

  1. Open the case of an already programmed remote.
  2. Press and release the program button on the back of the board (receiver enters learning mode).
  3. Press the button on the already programmed remote to activate the receiver.
  4. Press the button on the new remote you want to program for 2 seconds.
  5. Press the program button again on the already programmed remote to exit learning mode.
  6. Test the newly programmed remote to confirm it works.

Deleting Receivers Memory for PentaFOB® Remotes

  • Delete All Remotes: Short the Code Reset pins on the receiver for 10 seconds. This will erase all the remotes stored in the receiver’s memory.

PentaCODE® Remote Programming

Method 1: 12-Way Dip Switch Coding

  1. Set a unique code on the receiver’s 12-way dip switch by flipping the switches “On” or “Off” (do not use the factory default setting).
  2. Open the battery cover of the PentaCODE® remote.
  3. Match the 12-way dip switch on the remote to the code set on the receiver’s dip switch.
  4. Press button 1 on the remote. The receiver output should activate, confirmed by the receiver’s LED.
  • Programming Buttons 2, 3, or 4 to Other Receivers: To use buttons 2, 3, or 4 with other receivers, adjust dip switches 11 and 12 on the respective receivers as follows:
    ReceiverDip Switch 11Dip Switch 12
    1OffOff
    2OnOff
    3OffOn
    4OnOn
  • Ensure that dip switches 1 to 10 are the same on both the remotes and receivers.

Method 2: Encrypted Coding (All 12-Way Dip Switches “Off”)

  1. Press and hold the program button on the receiver.
  2. Press the button you want to program on the PentaCODE® remote for 2 seconds.
    • The receiver’s LED will flash green.
  3. Release the button on the receiver and the remote.
  4. The LED on the PentaCODE® remote will flash to confirm successful coding.

Method 3: Remote to Remote / Remote to Receiver Broadcasting

  • Broadcasting the Remote’s Code:
    1. Ensure all 12 dip switches on the remote are “Off.”
    2. Press and hold button 1, then toggle dip switch 12 “On” and then back to “Off.”
    3. The LED will stay on for 10 seconds, indicating the remote is broadcasting its code.



  • Broadcasting the Receiver’s Code:
    1. Ensure all 12 dip switches on the receiver are “Off.”
    2. Toggle dip switch 12 “On” and then back to “Off.”
    3. The green LED will remain on for 10 seconds, indicating the receiver is broadcasting its code.



  • Programming the New Remote:
    1. While broadcasting, press button 1 on the new remote for 1 second.
    2. Release the button. The LED will flash twice to confirm successful programming.

Broadcasting will remain active for 10 seconds or stop if any dip switch is turned on.

Deleting Receivers Memory for PentaCODE® Remotes

  • Delete All Remotes: Short the CC pin on the receiver for 10 seconds. This will erase all remotes stored in the receiver’s memory.
