Features:

• Frequency Hopping Technology: Operates between 915MHz and 928MHz, providing exceptional resistance to interference and jamming.
• Sixteen Channels: Allows simultaneous reception across all channels, enabling seamless control of multiple devices.
• Dual Digital Coding:

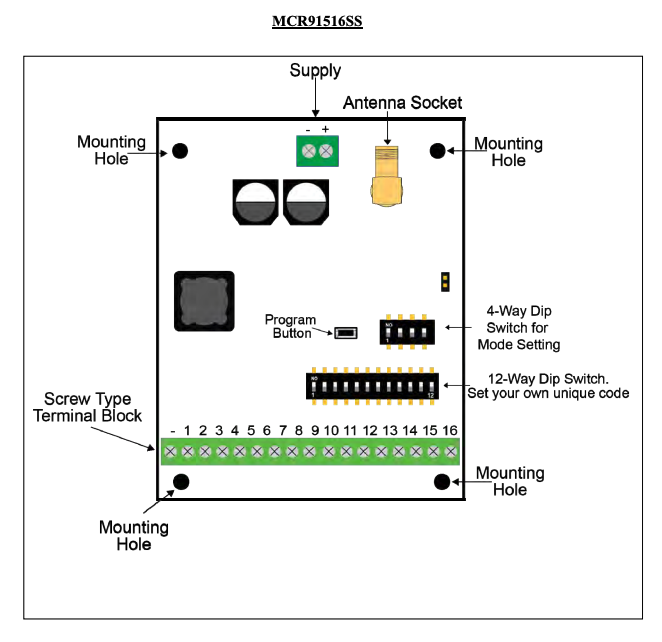

  • 12-Way Dipswitch: Simple programming by matching transmitter and receiver settings.
  • Encrypted Coding: Offers over 16 million unique codes for high-security applications.
• Open Collector Outputs: Each channel can switch up to 40VDC and 120mA, providing versatile low-current control options.
• Selectable Output Modes:
  • Momentary: Outputs remain active while the transmitter button is pressed.
  • Latching: Outputs toggle on/off with each button press.
  • Security Latching: Outputs stay active until power to the receiver is interrupted.
• Wide Voltage Range: Operates on 12–24V DC, making it compatible with various power supplies.
• LED Indicators: On-board red LED provides visual feedback for signal reception.
• Expandable System: Supports unlimited transmitter connections, ensuring scalability for growing needs.

Includes:

• 1 x Genuine Elsema MCR915016SS Receiver
• Programming Instructions

Applications:

• Industrial Automation: Ideal for controlling cranes, winches, and cement truck operations.
• Equipment and Machinery Control: Ensures reliable operation in heavy-duty environments.
• Security Systems: Perfect for alarms, gates, and advanced access control.
• Home Automation: Use it to control gates, garden lights, swimming pools, and more.

Note:  This item cannot be sold in the following countries due to Frequency Band licences:

• United Kingdom, Netherlands, Germany and Singapore – No licence available
• New Zealand – MCT series must be modified to operate between 921 to 929 MHz (Please Contact Us for Special Order with Elsema)
• US & Canada – Please Contact Us for Special Order with Elsema – Modifications to Frequency Hopping and Radiated Power

The Elsema MCR915016SS is an advanced 16-channel receiver designed to meet the demands of industrial and commercial automation. Featuring open collector outputs and dual digital coding technology, it delivers exceptional performance, flexibility, and security for controlling a wide range of devices. Operating on the 915MHz frequency band with Frequency Hopping Spread Spectrum (FHSS) technology, the MCR915016SS ensures interference-free operation, even in environments with multiple devices.
