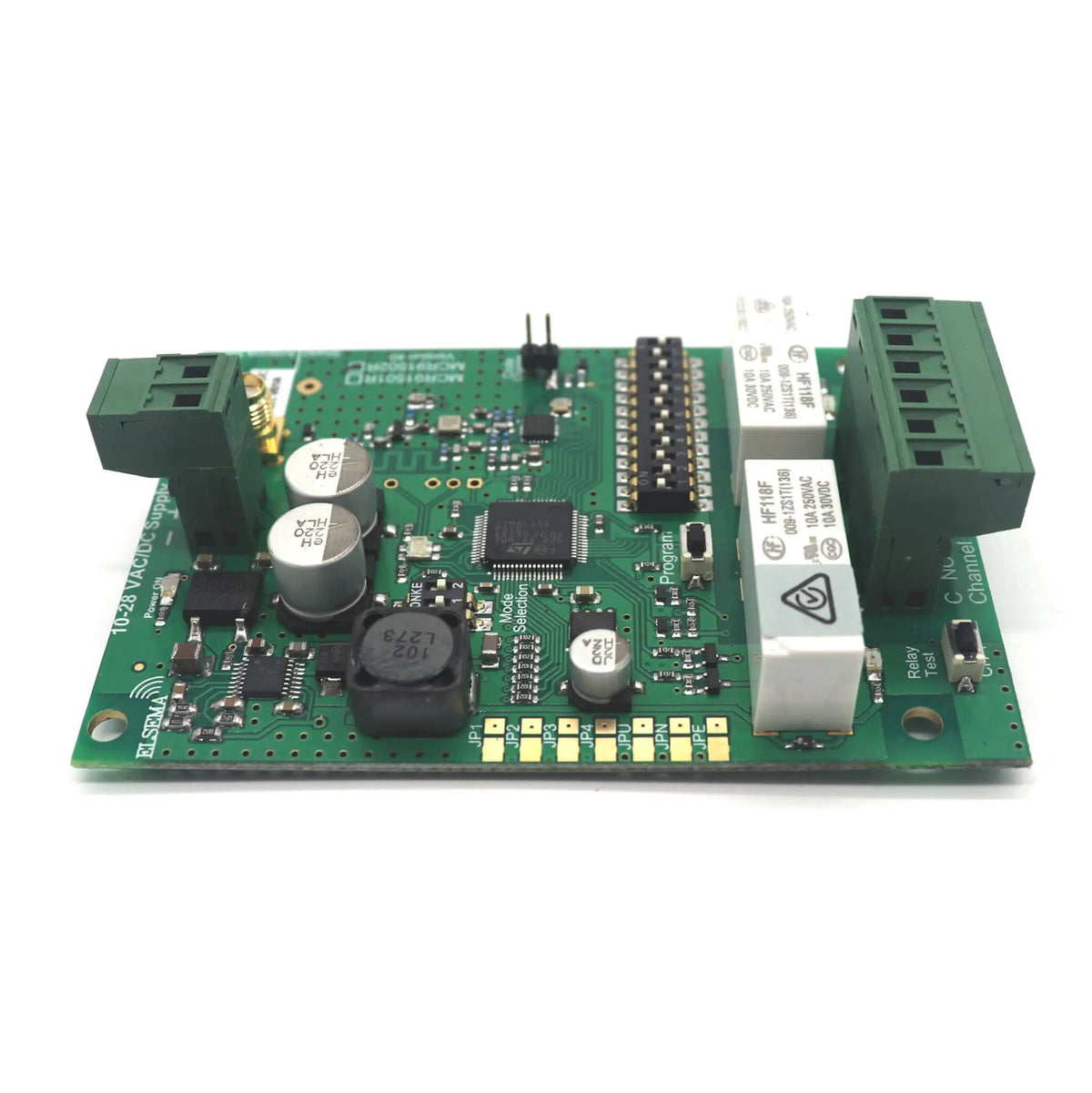

Elsema Multicode 915MHz 2 Ch Receiver MCR91502R

Brand: Elsema

Elsema Logo

Elsema Multicode 915MHz 2 Ch Receiver MCR91502R

Brand: Elsema

Elsema Logo

Includes:

  • Genuine Elsema MCR91502R 2 Channel Receiver with Relay Output
  • Quick Mount
  • Micro Antenna
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

$119.95

Availability:

In stock

Availability:

In stock

Includes:

  • Genuine Elsema MCR91502R 2 Channel Receiver with Relay Output
  • Quick Mount
  • Micro Antenna
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Features:

  • Fast Frequency Hopping – Reduces interference or jamming between 915 to 928MHz
  • Digital Coding, 12-Way Dipswitch or Encrypted Coding
  • Wide operating Supply Voltage and Low Current consumption
  • Ability to operate multiple receivers and transmitters in close proximity without interferences or jamming
  • 9 Selectable user modes via an additional 4-way Dipswitch
  • On-board red LED to indicate reception of a signal
  • Crystal controlled for high stability and accuracy

Includes:

  • Genuine Elsema MCR91502R 2 Channel Receiver with Relay Output
  • Quickmount
  • Micro Antenna
  • Programming Instructions
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

Applications for use:

  • Automatic Gates and Garage Doors
  • Wireless Security Activation
  • Lighting Control
  • Industrial Automation; control machinery, equipment, or processes remotely, enabling efficient and convenient operation
  • Access Control: Controlling entry points, such as doors or gates, ensuring secure access with compatible remote controls
  • Remote Switching: With its multiple output options, including relay, open collector it can be used for remote switching applications in various settings, such as turning on/off pumps, motors, or other devices wirelessly.

Note:  This item cannot be sold in the following countries due to Frequency Band licences:

  • United Kingdom, Netherlands, Germany and Singapore – No licence available
  • New Zealand – MCT series must be modified to operate between 921 to 929 MHz (Please Contact Us for Special Order with Elsema)
  • US & Canada – Please Contact Us for Special Order with Elsema – Modifications to Frequency Hopping and Radiated Power
Weight0.22 kg
Brand

Elsema

Channels

2 channels

MPN

Does Not Apply

UPC

Does not apply

Type

Application

AS62368.1 Battery Compliant

Not Applicable

Country/Region of Manufacture

Fiji

Features

Easy Installation, Genuine, Multiple Frequency Hopper

Frequency

915 to 928 MHz for Australia

Items Included

Antenna, Installation Instructions, Quick Mount, Receiver

Supply Voltage12 – 24 Volts AC or DC. Can use Elsema’s AC power pack (12PP-1000)
Current Consumption30 mA stand by at 12VDC, 70mA with 2 relays “On”
Frequency Band915 to 928 MHz for Australia

915 to 927 MHz for New Zealand

921 to 928 for United States of America and Canada

Operating Temperature Range-5 to 50°C
Decoding SystemOn Board 12-Way Code Switch (4096 Codes); Encrypted Coding (Over 16 Million Codes)
OutputsTwo change over relay outputs, rated at 8 Amps 240VAC each
Relay ContactsRelay Contacts Common (C) , Normally Closed (NC) & Normally Open (NO)
AntennaANT915S-SMA
Mounting hole Size3.97mm
Dimensions95 x 70 x 30mm
Useable TransmittersAll Elsema MCT915 Series
Operating RangeUp to 400 metres

Programming Instructions for Elsema MCR91502R
