Features:

• Single-Channel Receiver with Relay Output: Provides flexible control options, perfect for applications requiring reliable signal transmission.
• Weather-Proof Enclosure
• Over 4 Billion Code Combinations: Offers an exceptionally high level of security, virtually eliminating the risk of code grabbing or interference.
• Unlimited Transmitter Capacity: Can store an unlimited number of transmitters, making it ideal for large-scale operations.
• User-Selectable Output Modes: Supports momentary, latching, and security latching output modes, allowing customisation to suit different operational needs.
• Versatile Power Supply: Compatible with both 12 – 24 Volts AC or DC, offering flexibility in installation and application.
• Highly Sensitive Receiver Input Stage: Ensures reliable performance with an operating range of up to 350 meters when paired with GLT433 transmitters.
• High Load Switching Capacity: Capable of switching loads up to 8 Amps, making it suitable for heavy-duty industrial applications.
• Crystal Controlled Stability: The crystal-controlled design guarantees high stability and performance, ensuring consistent operation under varying conditions.
• Advanced Microcontroller Technology: This receiver uses re-programmable microcontroller technology, allowing it to be adapted to unique applications and providing future-proofing for evolving needs.
• Power ON LED Indicator: Easy monitoring of the receiver’s power status for quick diagnostics.

Compatible with:

• GLT43301
• GLT43302
• GLT43304
• GLT43308
• ANT433 LP (Antenna)
• ANT433 S (Antenna)
• ANT433 M (Antenna)

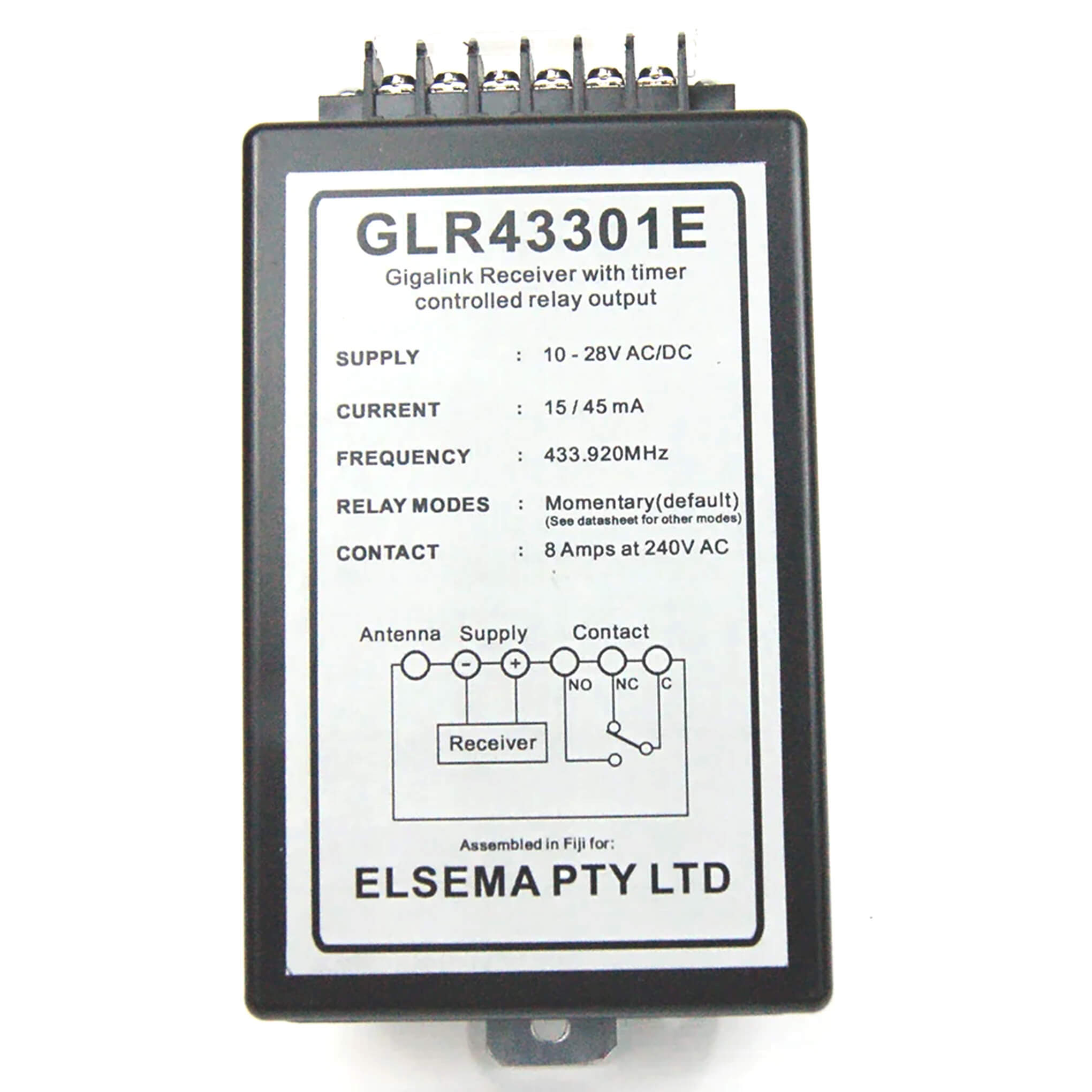

The Elsema GLR43301E 1 Channel Receiver in Enclosure is a reliable single-channel Gigalink® receiver, perfect for a variety of automation tasks, including controlling gates, garage doors, and other industrial applications. This receiver features a powerful relay output that can switch currents up to 8 Amps, providing robust performance in demanding environments. The GLR43301E includes an on-board relay test switch and LED indicators for easy monitoring of both power and relay status. The versatile relay output can be configured using a 4-way dipswitch to operate in momentary, latching, delayed off, pulsing, or security latch modes, ensuring flexibility for different system requirements.

Designed for security and ease of use, the Elsema GLR43301E Receiver can store an unlimited number of transmitters, utilizing a 32-bit encrypted digital code for high-level security. The included Gigalink® programming cable makes installation and transmitter setup simple and efficient.

Here are the programming instructions for the Elsema GLR43301 – 1 Channel Receiver:

Single Channel Programming

To program a single channel on the GLR43301 receiver, follow these steps:

1. Power Up the Receiver:
   Connect power to the GIGALINK™ receiver and ensure that all switches on the mode dipswitch are turned off.
2. Set Random Code (Optional):
   • Momentarily short the two CC pins on the receiver board to set all channels to a random code.
   • Note: If you short the CC pins, any previously programmed transmitters will be erased, and they will need to be reprogrammed. If you wish to keep the existing transmitters, skip this step.
3. Connect Transmitter to Receiver:
   • Insert the GIGALINK™ cable into the 2.5-mm coding socket of both the transmitter and the receiver. This will activate programming mode.
   • The red LED on the transmitter should light up and remain “on” during this process.
4. Program the Transmitter:
   • Press and hold one of the selected buttons on the transmitter for about 1 second.
   • The LED on the transmitter should blink twice to confirm successful code programming, then turn off.
5. Disconnect the GIGALINK™ Cable:
   • Once programming is confirmed, remove the GIGALINK™ cable.
6. Repeat for Additional Channels:
   • To program another transmitter or channel, repeat steps 3 to 5.
   • Important: If you’re programming additional transmitters, do not short the CC pins again, as this will delete all previously programmed transmitters.

Forward Programming

Forward programming allows you to program the transmitter code into multiple GIGALINK™ receivers, enabling the transmitter to activate several receivers simultaneously.

Steps for Forward Programming:

1. Power Up Both the Receiver and Transmitter:
   Ensure that both the receiver and the transmitter are powered on.
2. Jumper the CC Pins:
   Place a jumper across the CC pins on the receiver.
3. Connect the Transmitter and Receiver:
   Use the coding cable to connect the transmitter and receiver.
4. Program the Transmitter:
   • Press the desired button on the transmitter for 2 seconds.
   • This will transfer the code from the transmitter to the receiver.
5. Remove the Coding Cable:
   After the code is programmed, disconnect the coding cable.
6. Remove the Jumper:
   Remove the jumper from the CC pins to complete the programming process.
7. Repeat for Additional Receivers:
   Follow the same steps to program more receivers with the same transmitter code.

By following these instructions, you can easily program the Elsema GLR43301 – 1 Channel Receiver for both single-channel and forward programming scenarios.

Click HERE for full instructions
