Elsema Eclipse Double MC Board and Transformer 24V (MC24E)

Brand: Elsema

Elsema Logo

Elsema Eclipse Double MC Board and Transformer 24V (MC24E)

Brand: Elsema

Elsema Logo

Includes:

  • MC Control Board
  • IP66 Rated Enlcosure
  • Transformer
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Note:  Does not include remotes or battery backup.

$317.95

Availability:

In stock

Availability:

In stock

Includes:

  • MC Control Board
  • IP66 Rated Enlcosure
  • Transformer
  • Free Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*
Note:  Does not include remotes or battery backup.

Features:

  • Genuine Elsema Control Board with Transformer suitable for both single and double swing or sliding gates,
  • Automatic Gate Control Card: Easily control your gate’s operation with this powerful motor controller.
  • Large 4-line LCD Display: Real-time status and setup instructions displayed for simple navigation and control.
  • 1-Touch Setup: User-friendly control with automatic profiling using the latest intelligent technology.
  • Adjustable Settings: Speed, force, auto close, obstruction load, and pedestrian access can all be finely tuned.
  • Versatile Inputs: Supports various inputs such as push button, open only, close only, stop, pedestrian, and photoelectric beam.
  • Energy Efficient: Low standby current (12mA) makes it ideal for solar-powered gates, reducing running costs.
  • Supports limit switch inputs or mechanical stops.
  • Adjustable lock and courtesy light outputs.
  • Variable photoelectric safety beam functions.
  • Service counters, password protection, and holiday mode for enhanced control and security.
  • 12 and 24 Volt DC output to power accessories.

Includes:

  • MC Control Board
  • IP66 Rated Enlcosure
  • Transformer
  • Free Tracked Shipping Australia-Wide*
  • 2 Years Manufacturers Warranty*

Does not include remotes or battery backup.

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

The Elsema MC24E Control Board, powered by the advanced Eclipse® operating system, is a cutting-edge motor control solution for automatic swing and sliding gates. This intelligent control card is suitable for both single and double gates, designed with direct customer feedback and the latest in technology to ensure a seamless and user-friendly experience from installation to daily operation.

The MC24E is engineered with simplicity and efficiency in mind, featuring a large LCD display that guides users through clear, step-by-step instructions, making setup and adjustments effortless. With its intuitive 1-touch control system, managing and configuring the control card requires minimal effort, even for less technical users.

This control card is perfect for residential, commercial, and industrial applications, handling gates with or without limit switches with ease. Its reliable performance, adaptability, and competitive pricing make it one of the most popular choices on the market. Offering excellent value without compromising on quality, the Elsema MC24E is ideal for anyone looking for a high-performance, durable, and cost-effective gate control system.

Upgrade your gate automation with the Elsema MC24E Control Board and experience reliability, ease of use, and advanced motor control at its best!

Weight2 kg
UPC

Does not apply

Brand

Elsema

MPN

Does Not Apply

Type

Application

, ,

AS62368.1 Battery Compliant

Not Applicable

Features

Easy Installation, Genuine, Multiple Frequency Hopper, Self Learning Technology, Soft Start and Soft Stop, Water Resistant

Warranty

2 Years*

Voltage

24V

Power Source

Requires Wiring to Power

Frequency

433.92 MHz

Input Voltage: 12 or 24 Volts AC/DC

Motor Voltage: 12 or 24 Volts DC

Suited for:  Single or Double Gate

Display & Control: Lare LCD Screen with One touch control

Gate Limit Options: Limit Switch or Current Sensing

Remote Compatibility:  Elsema PentaFOB series, PentaCODE series (dipswitches turned off for encrypted coding)

MC Control Card Dimensions:  140 x 130 x 45 mm

Operating Systems: Eclipse Operating System (EOS)

Enclosure Rating: IP66

Manual

Elsema Eclipse MC Board Manual

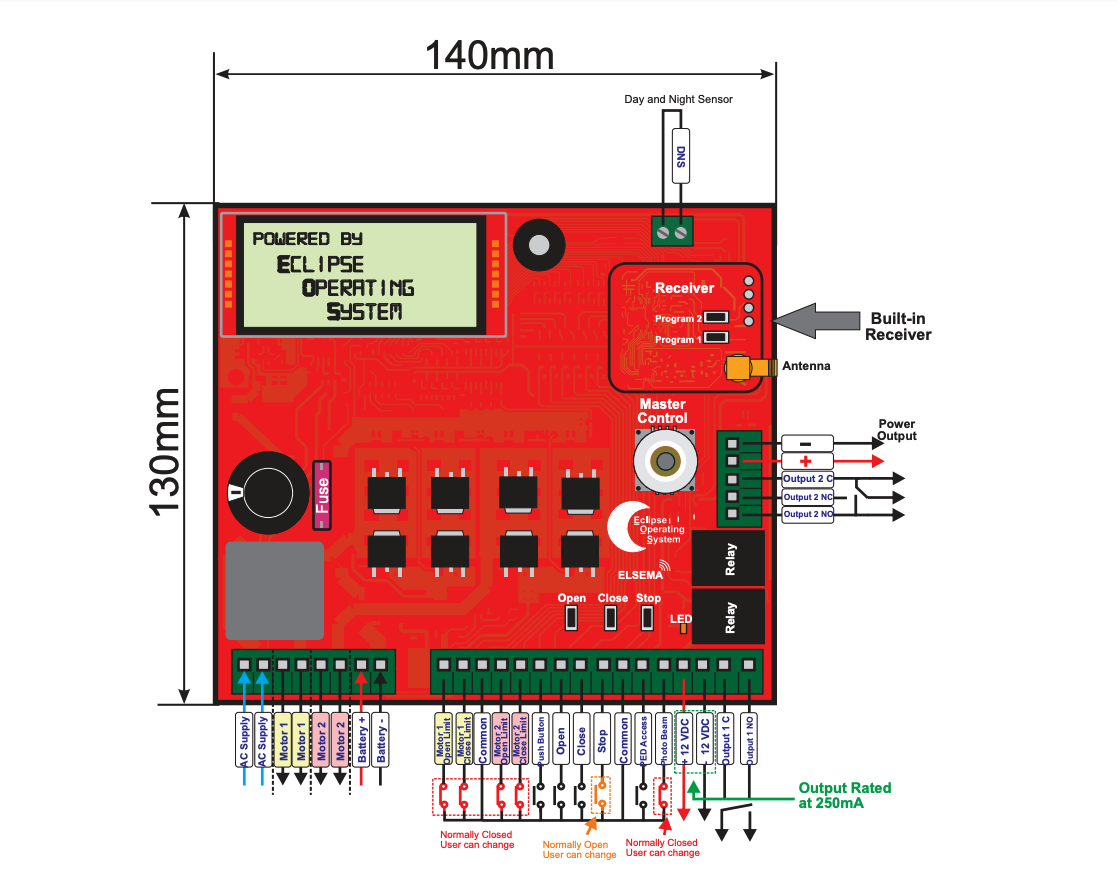

Connection Details

MC Connection Diagram
