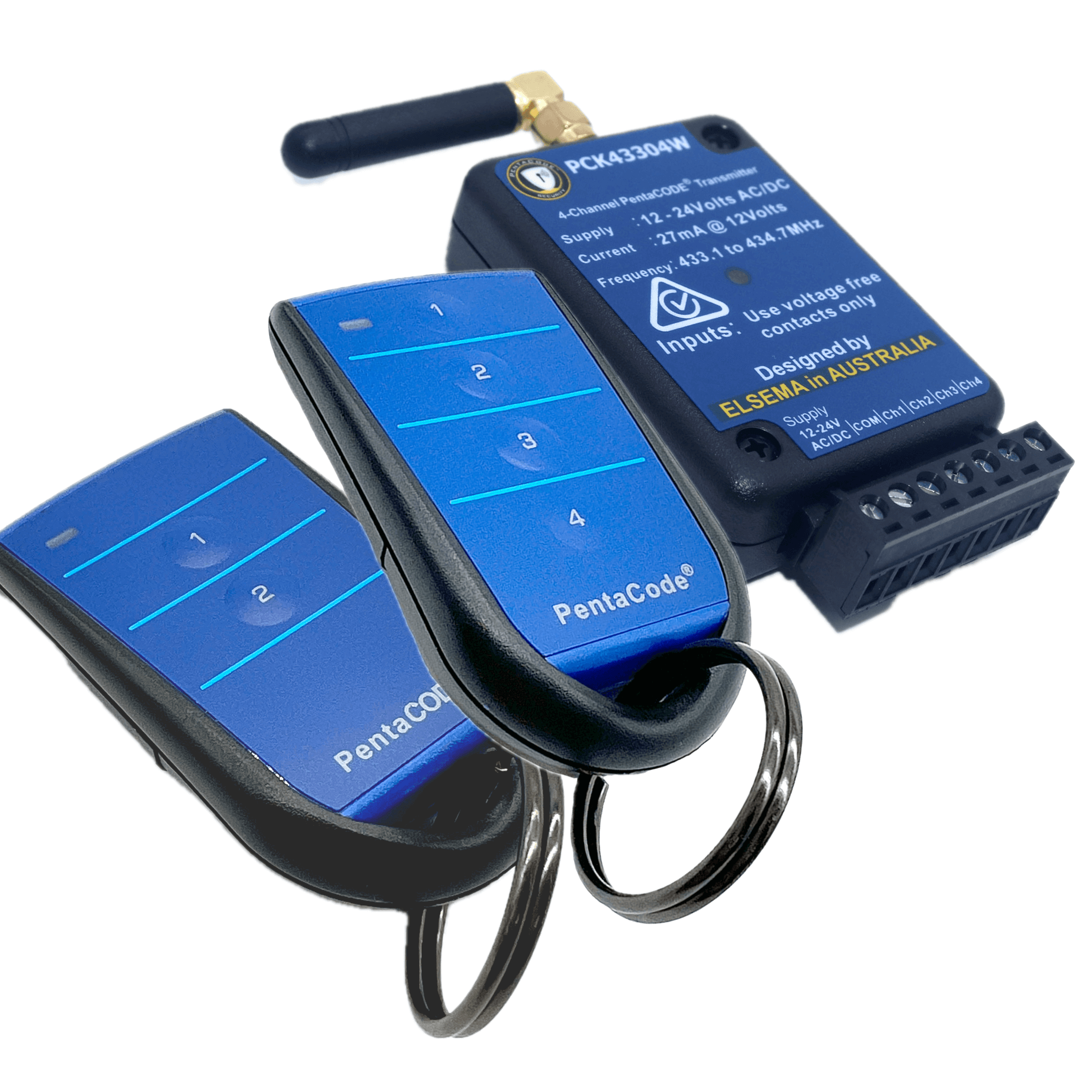

Elsema PentaCODE® Series
Price range: $39.95 through $105.95
Keyring & External Input Options with Dual Coding
The Elsema PentaCODE® Series offers a powerful blend of flexibility, security, and reliability in a compact design—perfect for both residential and industrial applications. Available in 2 or 4 button keyring models (PCK43302 & PCK43304) and a 4-input wire-in transmitter (PCK43304W), the PentaCODE® range allows seamless integration into any automation or access control system. These remotes are equipped with a dual coding system: select either traditional 12-way DIP switch coding for quick setup or switch to encrypted mode with over 17 billion code combinations for enhanced security. Designed and engineered in Australia, all PentaCODE® products use FHSS (Frequency Hopping Spread Spectrum) across five frequencies to eliminate interference and prevent code grabbing or jamming. Built tough and compliant with FCC, CE, and AS/NZS standards, the PentaCODE® range is trusted globally and is fully compatible with all Elsema PCR Penta receivers.
What’s Included
- 1 x Genuine Elsema PentaCODE Transmitter (Choose between Keyring or External Input)
- 1 x 23A Battery (PCK43302/PCK43304 only)
- Moulded Keyring Attachment (PCK43302/PCK43304 only)
- 1 x Micro Antenna (PCK43304W only)
- Step-by-step Wiring and Programming Instructions
The Elsema PentaCODE® Series is a premium quality Remotes from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is PCK433. Secure your Elsema PentaCODE® Series today with confidence!
Key Features
- Dual Coding System – Use encrypted mode or traditional DIP Switch Coding
- Frequency Hopping Spread Spectrum (FHSS) – Operates on 5 frequencies for secure transmission
- Secure 433MHZ FHSS: Frequency-hopping for ultra-secure, interference-free communication
- Strong Build: Durable nylon casing, designed for Australia’s harsh environments
- Durable Design – moulded chassis and integrated keyring mount for strength
- Compatible with all Elsema Penta Receivers: Including PCR433 Series and all Elsema Gate Motors.
Compatible with:
The PentaFOB series is supplied and compatible with all Elsema Gate motors
- iS600/900
- iS400
- iS330
- iS1500/2000/3000/1500LV
In addition this remote is compatible with all Elsema PCR Stand-Alone Receivers
- PCR43301RE
- PCR43302R
- PCR43302P
- PCR43302RE
- PCR43304R
- PCR43304RE
- PCR43305R
- PCR43305RE
- PCR43301240R
- PCR43301240RE
- PCR43302240R
- PCR43302240RE
Technical Specifications:
| Specifications | PCK43302/4 | PCK43304W |
| Frequency | 433.10 to 434.70Mhz | 433.10 to 434.70Mhz |
| Code Type | Dipswitch or Encrypted Code | Dipswitch or Encrypted Code |
| Body Type | Keyring | External Input |
| Case Colour | Black and Blue | Black/Blue |
| Number of Buttons | 2/4 | 4 Dry Contacts, optically isolated |
| Button Colour | Blue | Nil |
| Remote Dimensions | 60 x 38 x 10mm | 90 x 50 x 25mm |
| Range | Up to 200m (line of sight) | Up to 500m (with ANT433M) |
| Item Contains Lithium Coin/Button Battery | Yes | No |
| Battery Type
Supply Voltage |
23A | 12 to 24V AC or DC |
| Standby Current | N/A | 6uA standby at 12V DC |
| Access Type | No Tool Required | Toll Required |
| AS62368.1 Compliant | Not Applicable | Not Applicable |
Additional information
| Product Type | PCK43302, PCK43304, PCK43304W |
|---|
