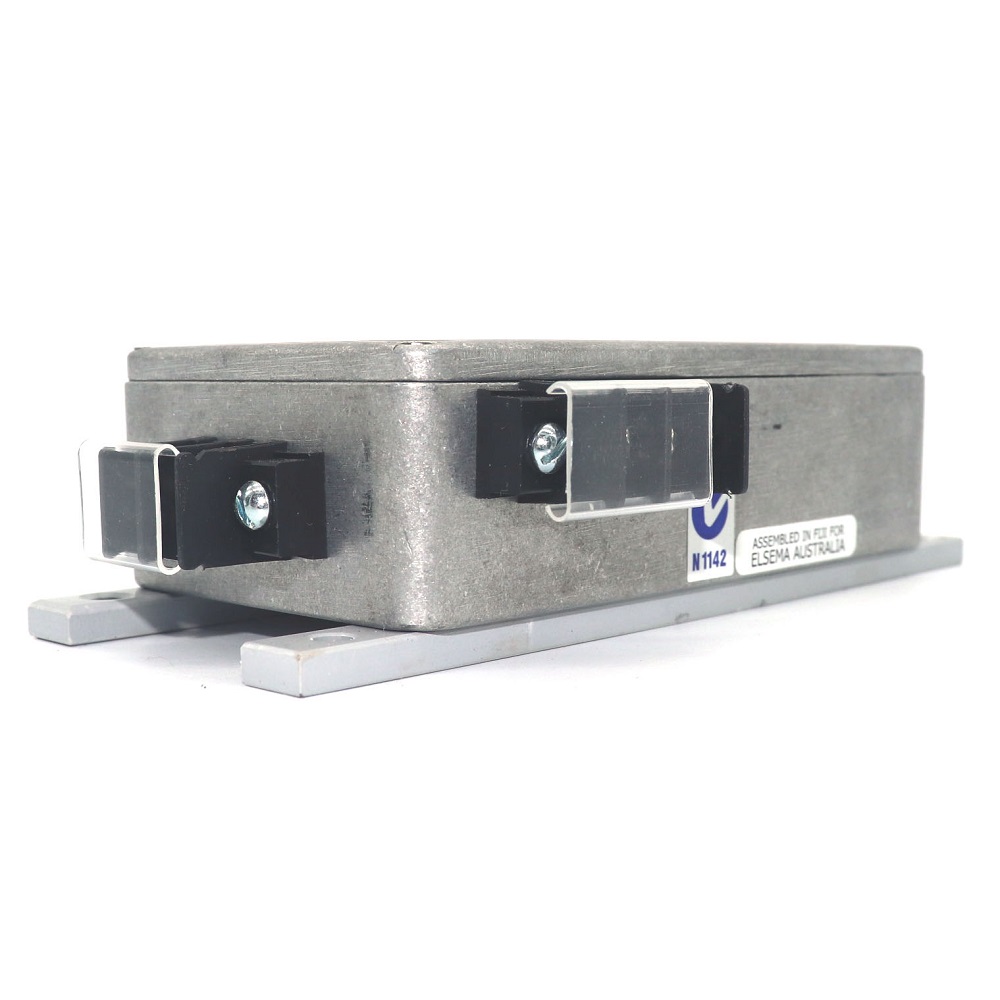

Elsema 151MHz Analog Transmitter and Case – TXA15101E
$144.95
5 in stock

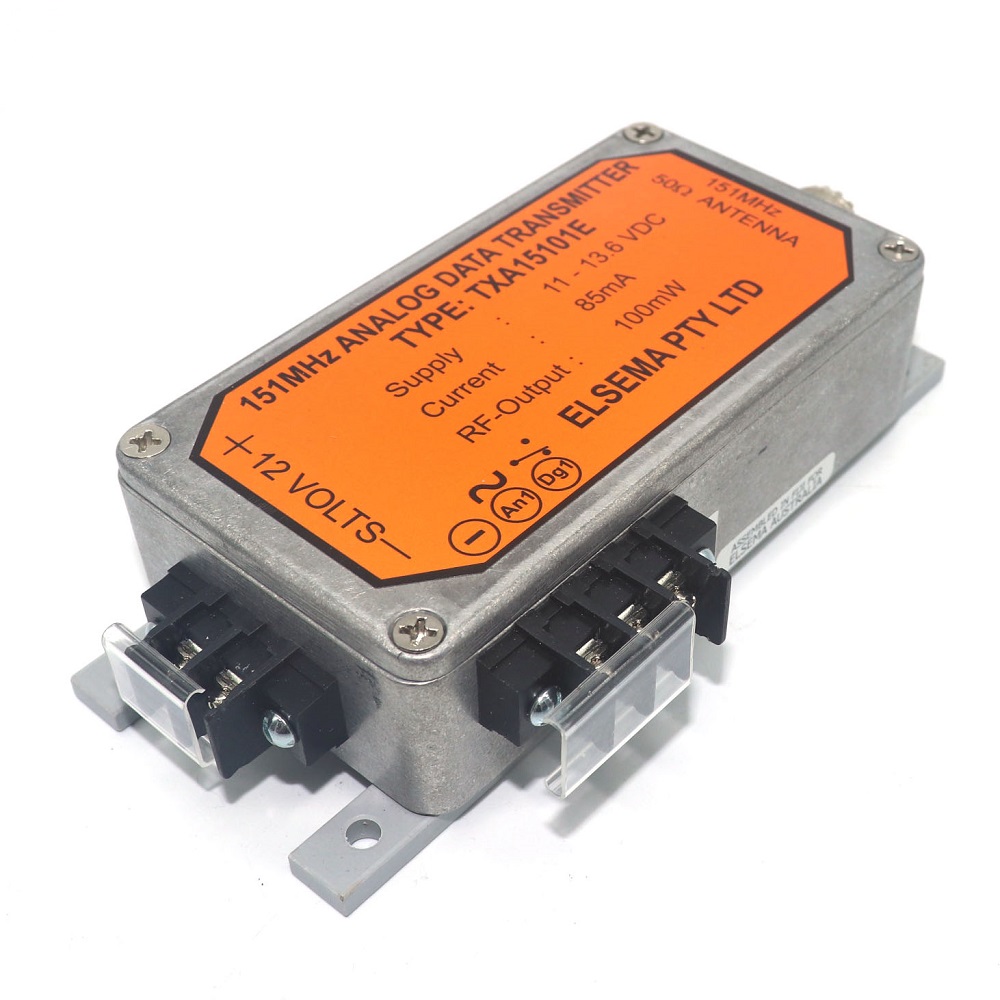

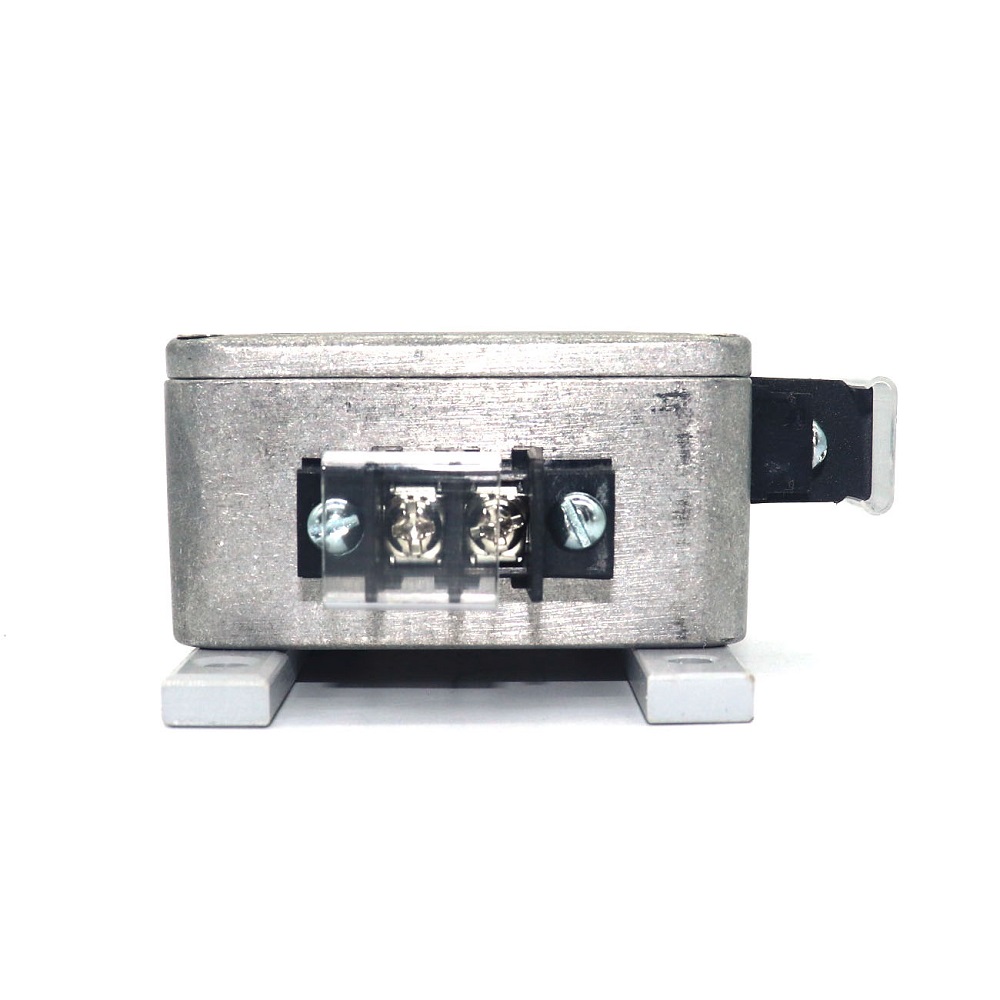

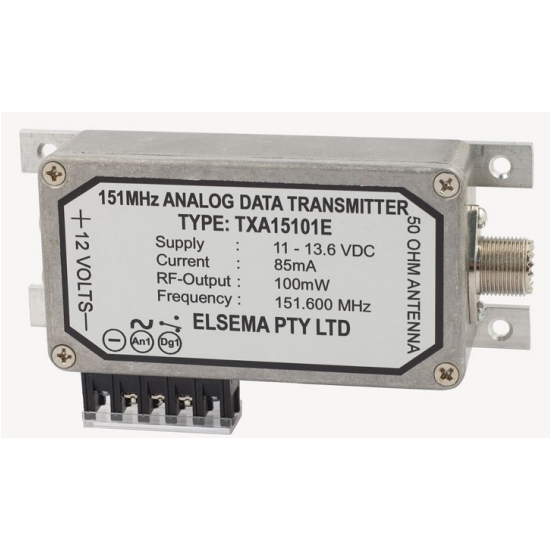

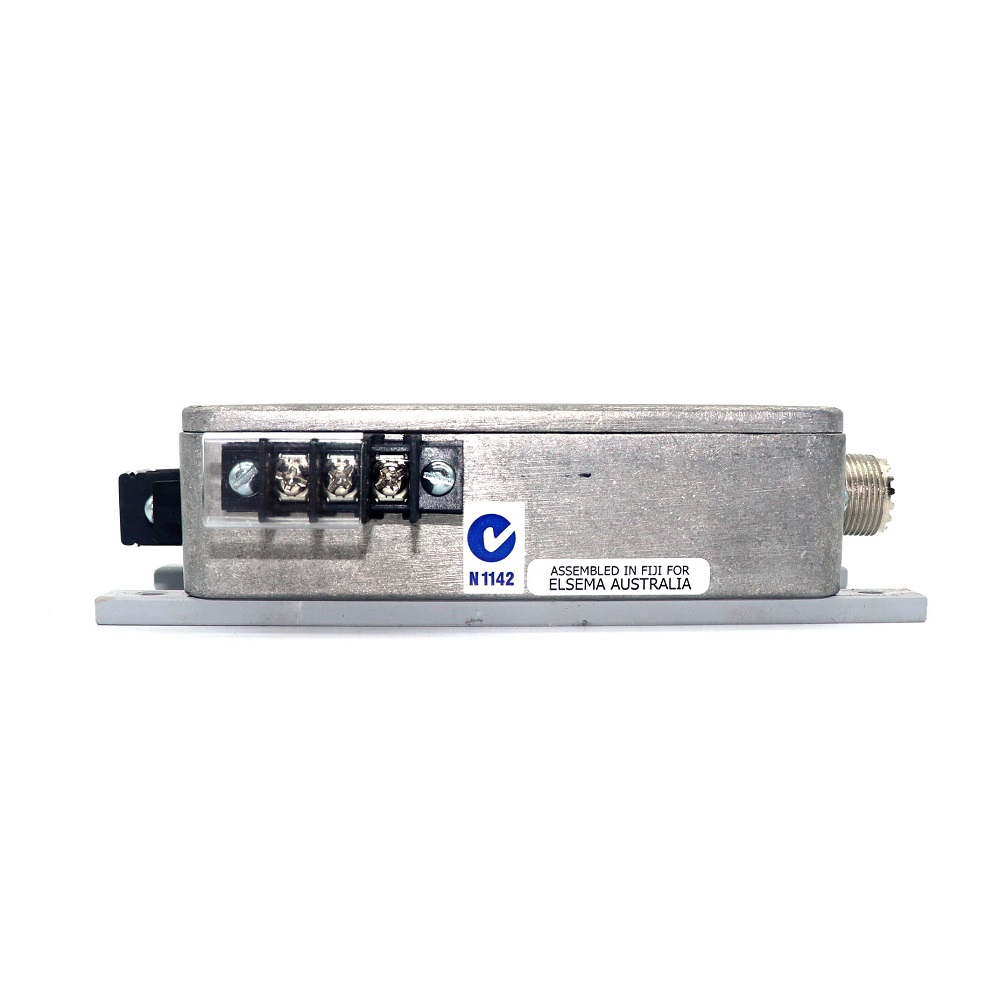

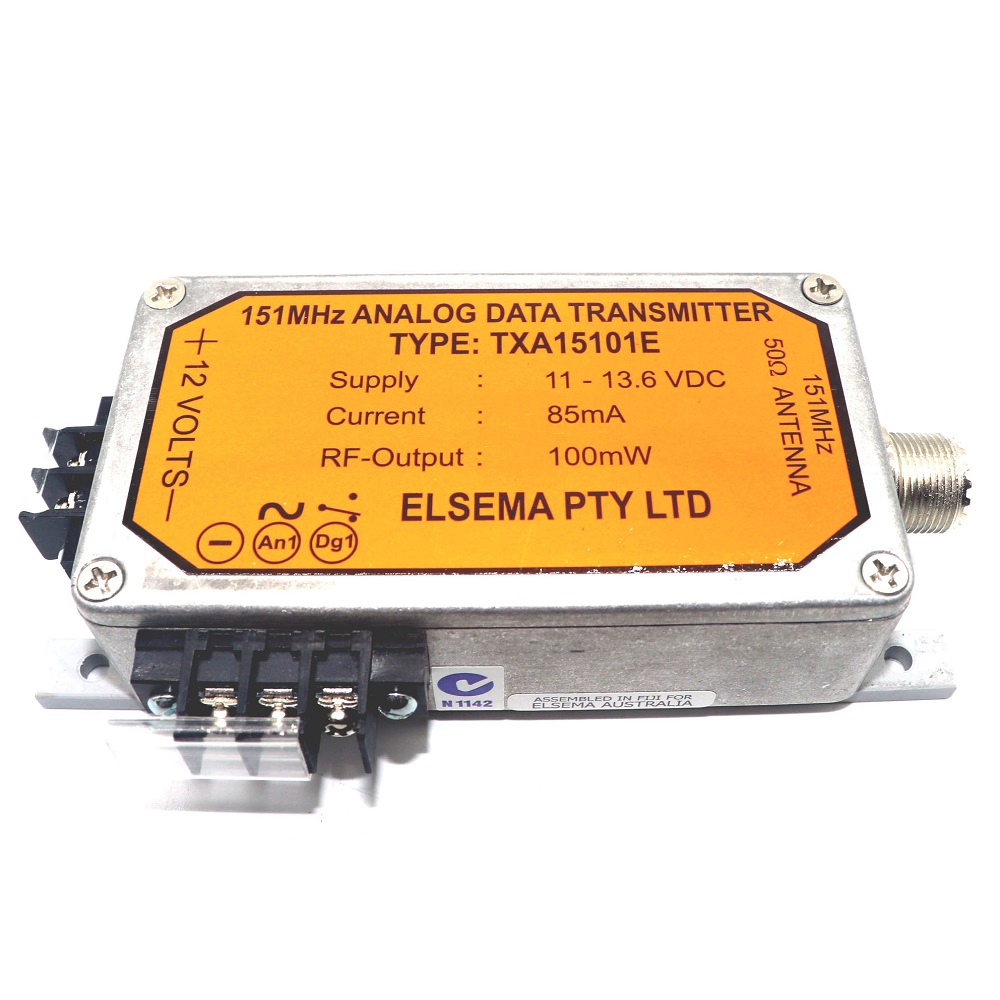

Elsema TXA15101E – 151MHz 4-20mA Analog Industrial Transmitter
The Elsema TXA15101E is a robust 4–20mA analog transmitter designed to provide reliable, long-range wireless communication in demanding industrial environments. Operating on the less congested 151MHz frequency band, the TXA15101E transmits analog signals with 10-bit accuracy, which are then precisely recreated at the RXA15101E receiver’s analog output.
What’s Included:
- Genuine Elsema TXA15101E 151MHz Analog Transmitter (in Enclosure)
- Installation Instructions
Key Features:
- Single-Channel 4–20mA Analog Transmitter – High accuracy with 10-bit resolution for precise data transfer.
- Integrated Digital Channel – Transmit a normally open contact simultaneously with the analog signal.

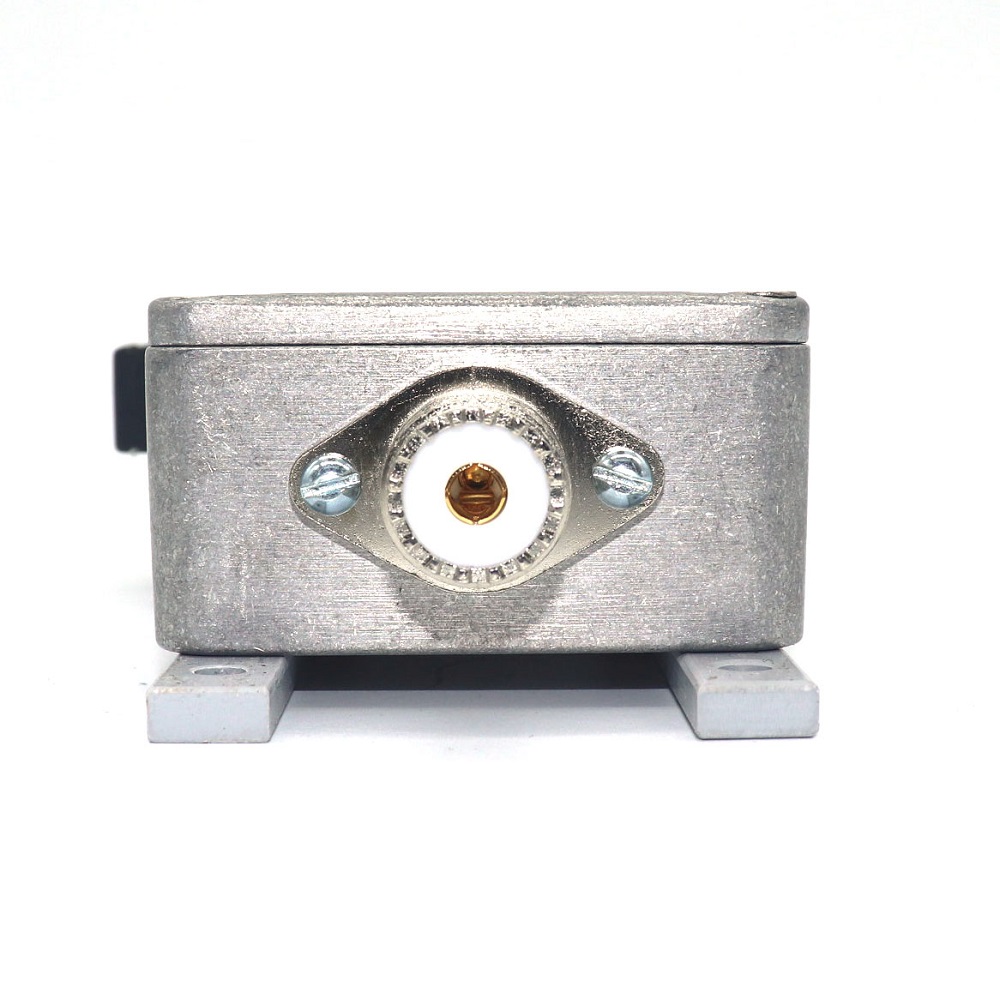

- Long-Range Wireless Transmission – Up to 5 km range (line-of-sight) when paired with the ANT151M antenna.
- 12-Way Dip Switch – Easily set transmitter and receiver IDs for secure pairing.
- Robust 151MHz Frequency – Superior penetration in industrial environments with steel or metal structures.
- Wireless Convenience – Eliminates expensive wiring while providing flexible, reliable data collection.
- Durable Design – Engineered for harsh industrial conditions and interference-prone areas.
Common Applications:
- Monitoring storage tank levels
- Remote temperature, pressure, and humidity monitoring
- Flow rate and industrial equipment monitoring
- Control of industrial machinery and remote processes in warehouses and plants
Compatible with:

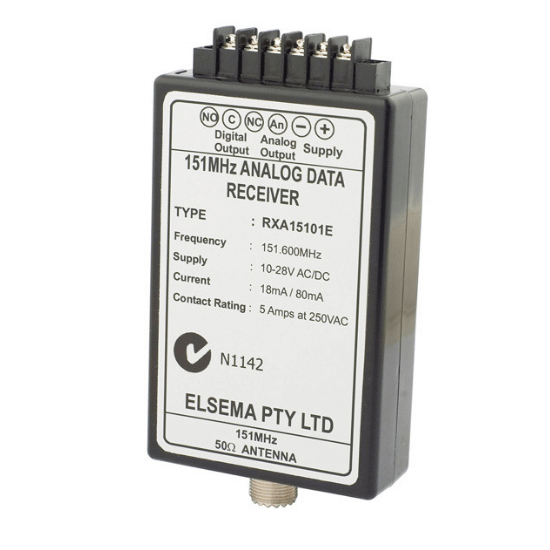

This transmitter is compatible with the RXA15101E
Technical Specifications:
| Frequency | 12 Volts DC. Absolute maximum 14VDC. |
| Current Consumption | Nominal 80mA at 12VDC (Transmitting), 12mA on standby |
| Operating Frequencies | 151.6MHz |
| Inputs | 4-20mA analog and Normally open contact |
| Operating Temperature Range | -5 to 50°C |
| Internal Resistance on Analog Input | 200Ω |
| Maximum Current on Analog Input | 25mA |
| Coding System | On board 12 way code switch |
| Dimension | 140 X 60 X 34mm |
| Mounting Hole Size | 4.76 mm or 3/16” |
| Useable Operating Range | Up to 5000m, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M |
| Compatible Receiver | RXA15101E |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Additional information
| Weight | .25 kg |
|---|---|
| MPN | |
| UPC | |
| Brand | |
| 151 Series |
