Elsema 151MHz 1 ch TRANSMITTER FMT15101E
$144.95
20 in stock
Industrial-Grade 1-Channel Wireless Control with Up to 5km Range
The Elsema FMT15101E Long-Range Transmitter is a high-performance, industrial-grade wireless control solution built for secure and interference-free operation in demanding environments. Operating on the 151 MHz frequency band, this 1-channel transmitter offers extreme long-range performance of up to 5 km in open areas—ideal for applications where distance and reliability are critical.
What’s Included:
- 1 x FMT15101E Transmitter in Enclosure
- Programming Instructions
The Elsema 151MHz 1 ch TRANSMITTER FMT15101E is a premium quality Industrial Remotes from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58875. Secure your Elsema 151MHz 1 ch TRANSMITTER FMT15101E today with confidence!
Key Features:
- Extreme Long-Range Performance – Up to 5,000 m (line of sight)
- 100 mW Transmission Power – Low power consumption at 85 mA
- Interference-Free Operation – Unaffected by electrical noise and congestion
- Reliable & Secure Communication – Specially programmed microcontroller for stability
- Multiple Transmission Modes – Selectable continuous, burst, or off-delay transmission

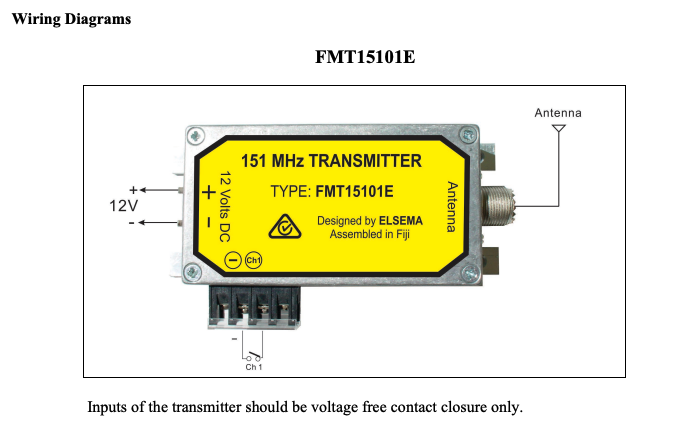

- Easy Wiring & Integration – Screw-type terminals for quick NO (Normally Open) input connections
- Weather-Resistant Enclosure – Protects internal components from environmental factors
- Compatible with Elsema FMR Series Receivers – Works with single and multi-channel receivers
Compatible with:
Receivers:
- FMR15101
- FMR15101240
- FMR15102
- FMR15102240
- FMR15104
- FMR15104240
- FMR15108
- FMR15108R
Ideal Applications:
- Pump Control – Remote activation for agriculture and water management
- Long-Distance Panic Button – Emergency alerts on industrial sites
- Security & Alarms – Secure activation of gates, alarms, and monitoring systems
- Telemetry & Automation – Remote monitoring of water levels, floodlights, and machinery
- Heavy Industrial Use – Suitable for mining, factories, and large-scale operations

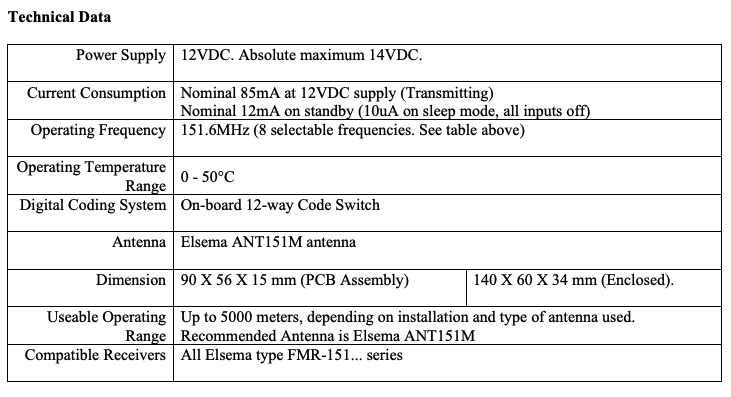

Technical Specifications:
| Power Supply | 12VDC. Absolute maximum 14VDC. |
| Current Consumption | Nominal 85mA at 12VDC supply (Transmitting) Nominal 12mA on standby (10uA on sleep mode, all inputs off) |
| Operating Frequency | 151.6MHz (8 selectable frequencies. See table above) |
| Operating Temperature | 0 - 50°C |
| Digital Coding System | On-board 12-way Code Switch |
| Antenna | Elsema ANT151M Antenna |
| Dimension | 140 X 60 X 34 mm (Enclosed).
90 X 56 X 15 mm (PCB Assembly) |
| Useable Operating Range | Up to 5000 meters, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M |
| Warranty | 12 months Manufacturers Warranty |
