ATA Megacode 4 Channel Receiver – 32 Bit (62560)
$474.95
Out of stock
Genuine ATA Receiver for TrioCode and TriTran Remotes

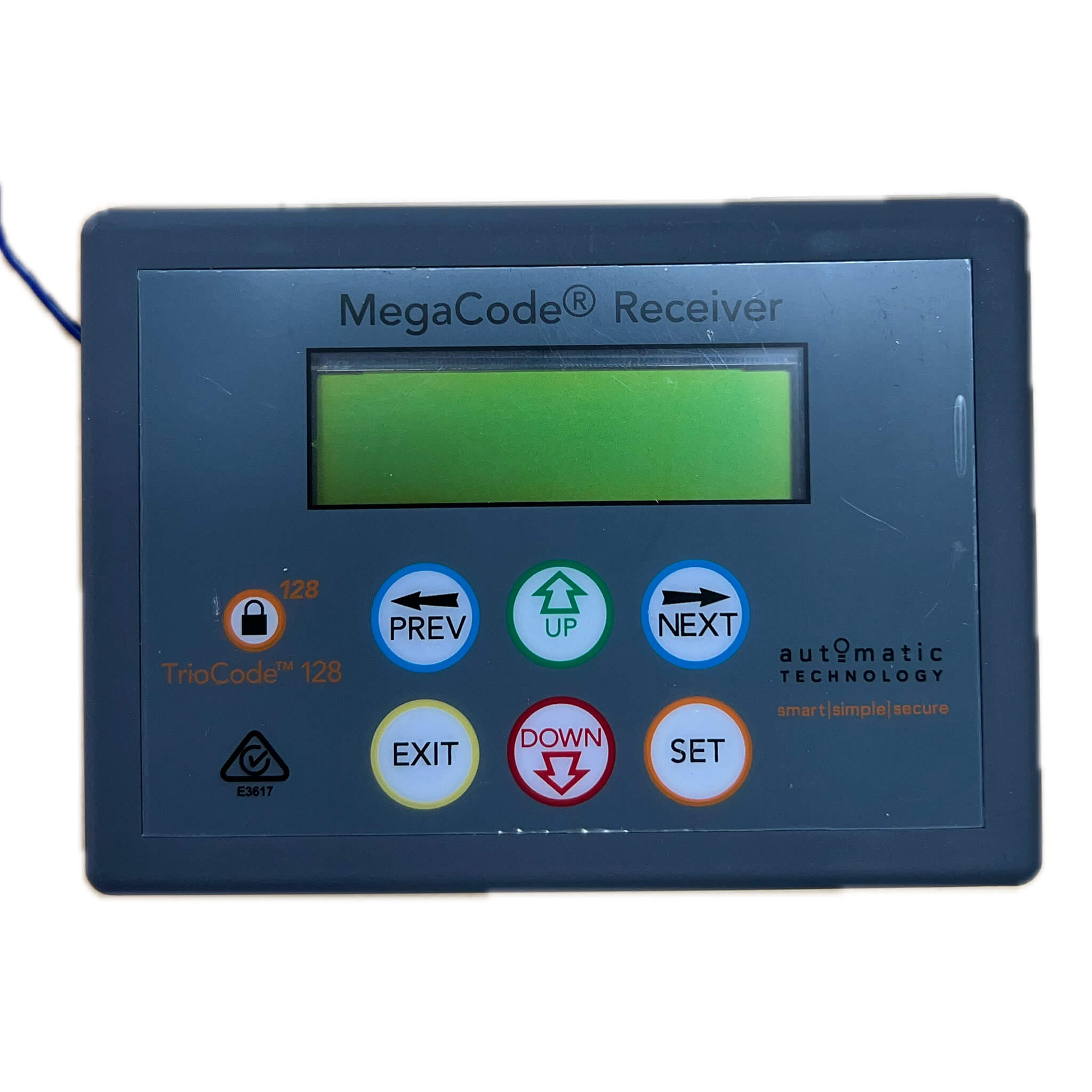

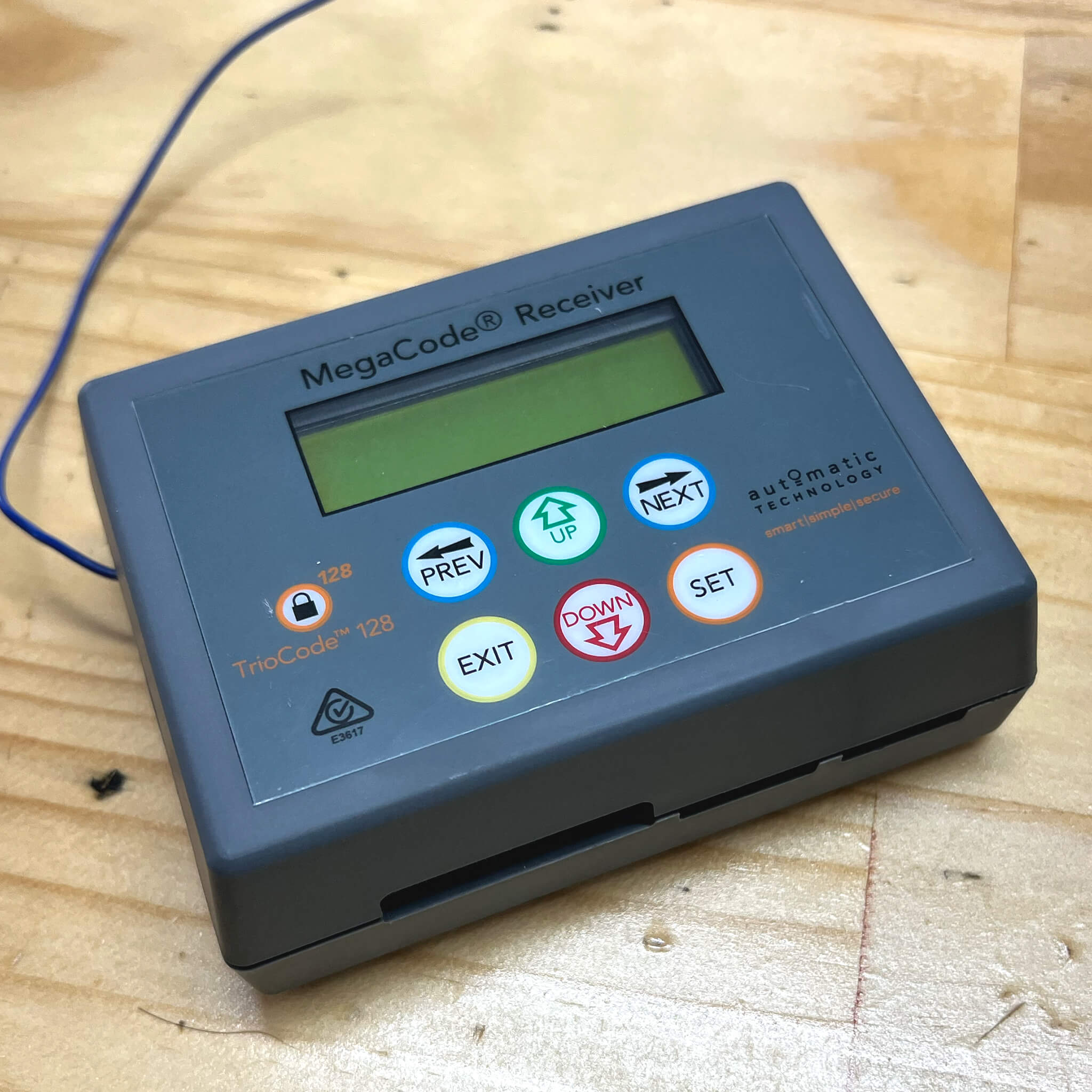

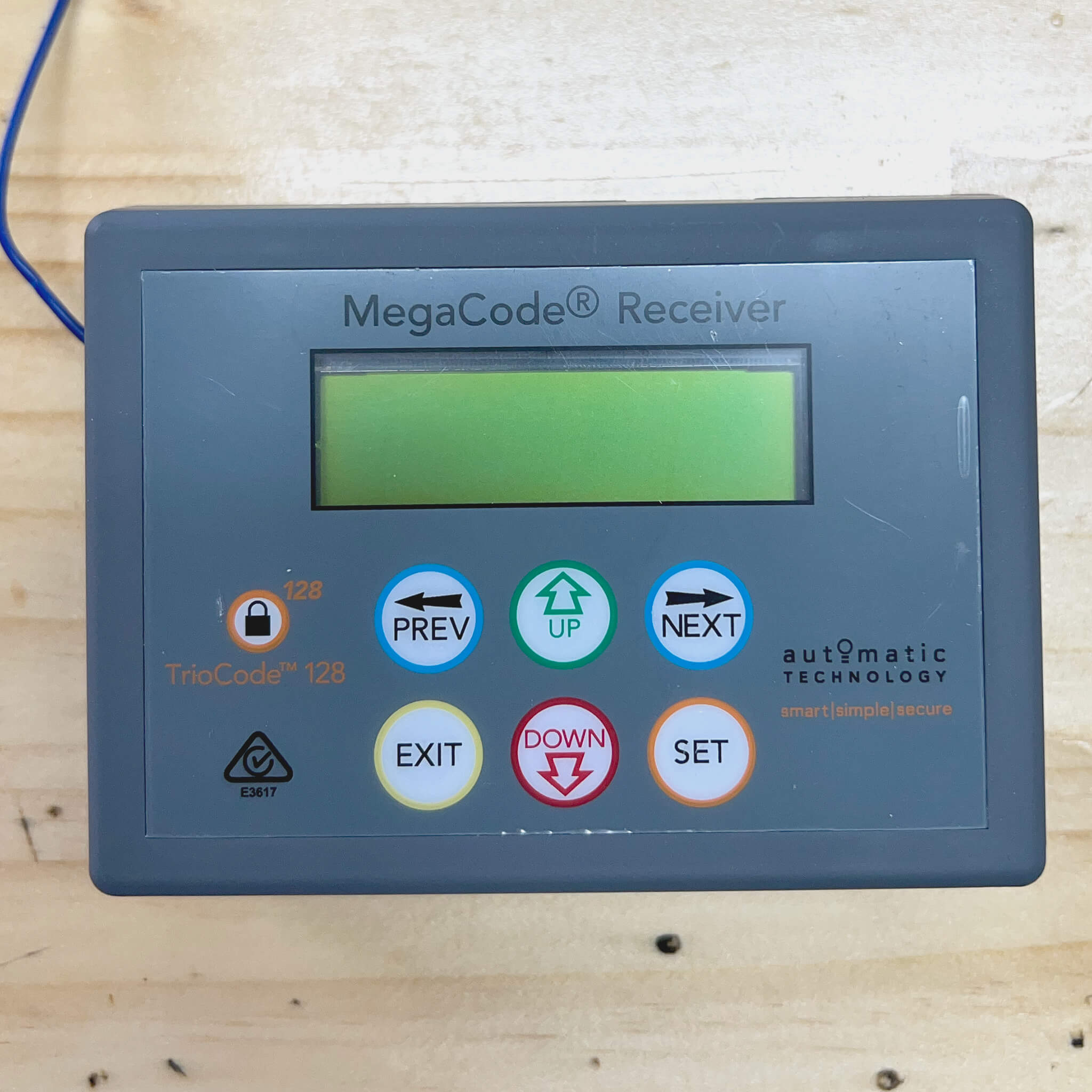

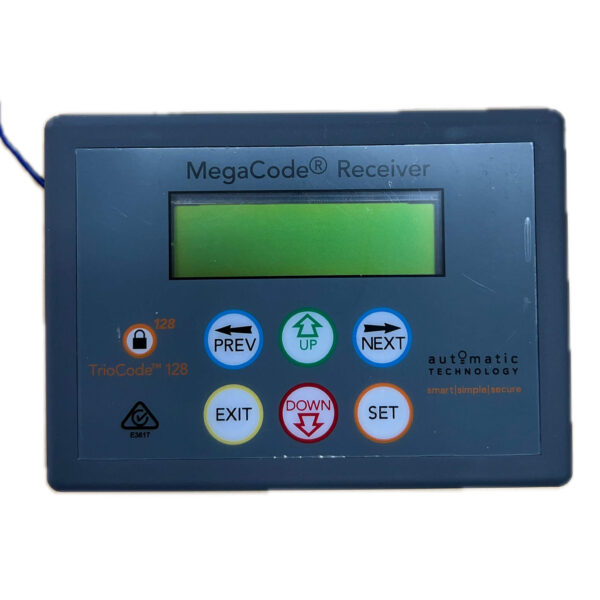

The ATA Megacode Receiver is a stand-alone 4-channel receiver that delivers maximum control, flexibility, and security for your automation system, allowing you to connect and manage up to four separate gates, garage doors, or devices using a single ATA TrioCode or B&D TriTran remote. Compatible with both 64-bit and 128-bit ATA TrioCode remotes as well as TriTran+™ technology, it supports older models like PTX5v1 and TB5v1 while working seamlessly with the latest remotes—making it the perfect solution for properties or businesses with a mix of devices. Featuring an intuitive LCD screen with built-in menu controls, it can store up to 511 transmitters, each with a unique label, making it ideal for shared access or commercial installations. Advanced functions such as a programmable time clock let you schedule access by automatically locking or unlocking outputs at set times, while outputs can also be activated by remote, wired trigger inputs, or programmed schedules. Built to ATA’s high-quality standards, the Megacode Receiver combines secure code-hopping technology, reliable performance, and the flexibility to integrate with compatible non-ATA devices for complete automation control.
What’s Included:
- 1 × Brand New Genuine Megacode Receiver (62560)
- Step-by-step Wiring Programming Instructions
The ATA Megacode 4 Channel Receiver – 32 Bit (62560) is a premium quality Receivers from the trusted brand ATA, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 15503. Secure your ATA Megacode 4 Channel Receiver – 32 Bit (62560) today with confidence!
Key Features:
- Four independent channels for controlling multiple devices
- Works with both 64-bit and 128-bit TrioCode/TriTran remotes
- Backwards compatible with PTX5v1 and TB5v1
- Stores up to 511 remotes, each with an individual label
- LCD Display with simple menu navigation for easy setup and diagnostics
- Programmable weekly timer clock for scheduled automation
- Secure code-hopping technology for reliable, protected operation
- Flexible activation via remote, wired trigger inputs or schedule
Compatible with:
Current Genuine Remotes:
- ATA PTX6v1
- B&D TB7
Discontinued Genuine Remotes:
- ATA PTX2v1 & PTX2v2
- ATA PTX5v1 & PTX5v2
- B&D TriTran & Mini
- B&D TriTran TB5 & TB6
Note: This receiver is not compatible with the ATA Securacode Series – ATA PTX4 or earlier series.
Technical Specifications:
| Specifications | |
| Frequency | 433.47, 433.92 & 434.37Mhz |
| Code Type | 65 Bit & 128 Bit Rolling Code |
| Body Type | Receiver |
| Number of Channels | 4 |
| Case Colour | Grey |
| Size | |
| Power Supply | 12-24 AC/DC |
| Continuous Load Current per output | 100mA @ 40 VAC/DC |
| Memory Capacity | 511 Remotes |
| Antenna Connection | Optional Coaxial Antenna Available |
| Range | Up to 40 metres |
