ATA SGO1v4 Elite Swing Gate

Features:

• Powerful DC Motor
• Articulated Arm for seamless operation
• Secure lockout system
• Soft start & stop technology
• Weather Resistant
• Suitable for Tight Spots
• Built for Australian Weather Conditions
• Lockout System

Optons:

• Drive Unit ONLY (no Control Board, Remotes supplied) - 62629

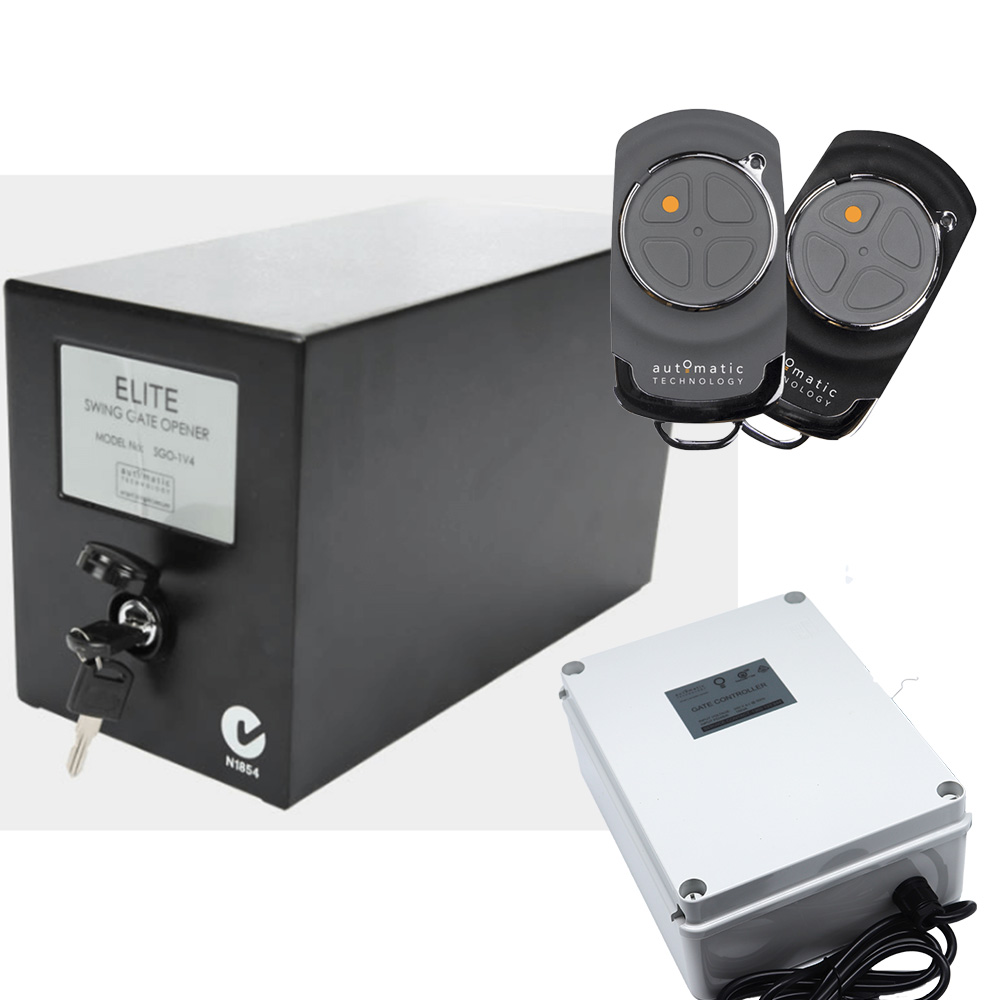

• Single Kit (includes 2 x 4 Button Remotes and Control Board in Enclosure and Articulated Arm) - 92295

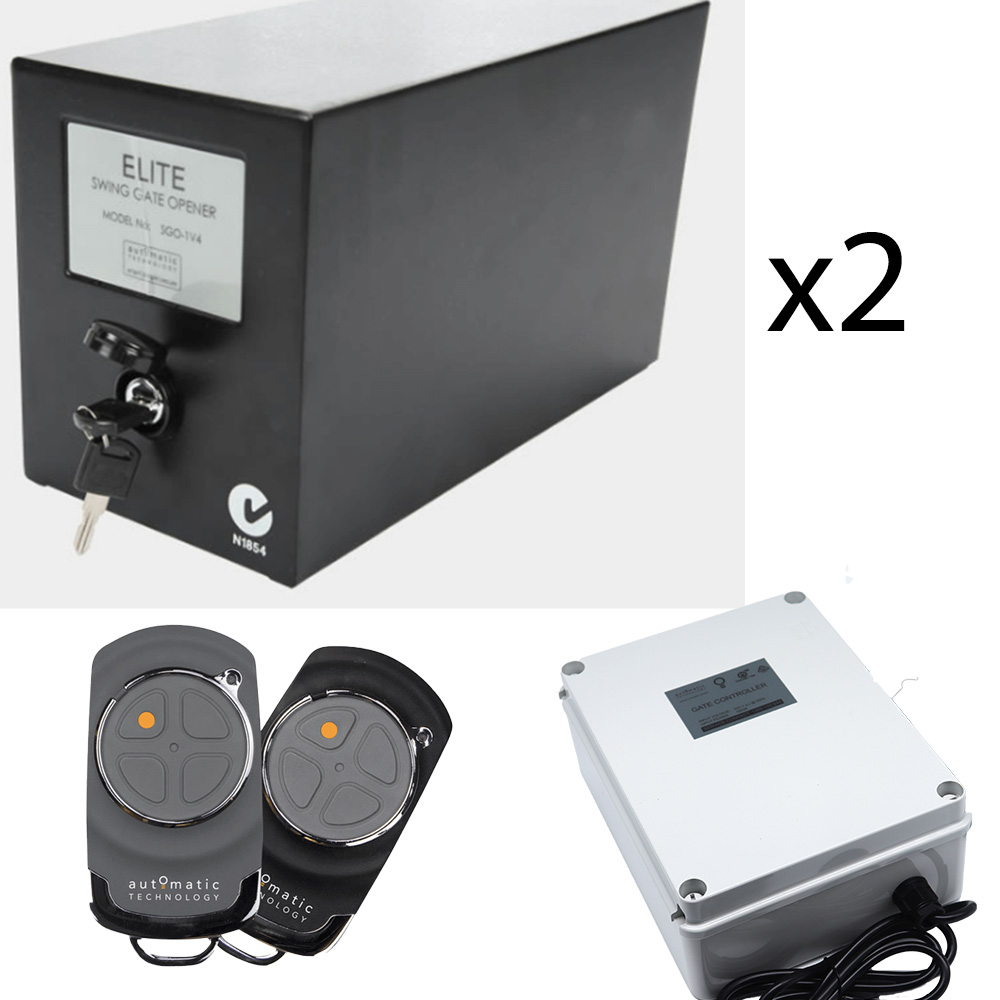

• Double Kit (includes 2 x 4 Button Remotes, Control Board in Enclosure, Articulated Arm and Additional Slave Drive) - 62631

Optional Extras:

• Limited Side Room Kit (62292)
• 10m 5 core cable (62190)
• DCB-05 - Gen 2 with 100VA Transformer
• DCB-05 - Gen 2 with 150VA Transformer
• DCB-05 - Gen 2 Solar Ready
• DCB-05 - Gen 2 Board ONLY
• Battery Backup - DCB-05 GEN 2 (MC0090)
• Smart Solar Kit - Gen 2 (62855)
• Wireless Safety Beams (62738)
• 2 Wire Safety Beams (62626)
• 3-Wire Safety Beams (62627
• Smart Hub (14879)
• Gate Transceiver for Smart Hub (MC0058)

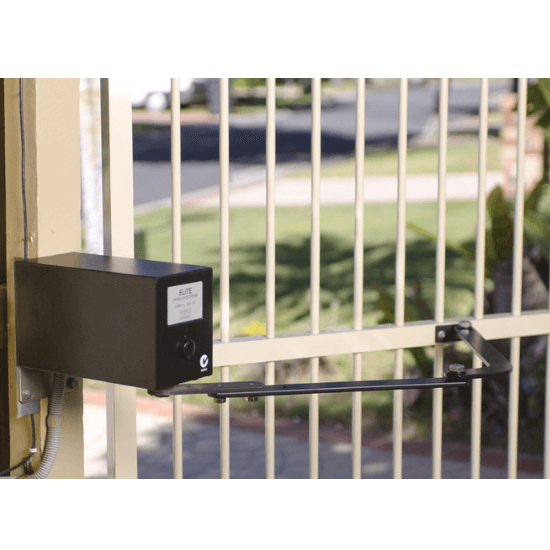

With a proven design that has stood the test of time, the Elite Gate Opener is renowned for its exceptional performance and durability. This unassuming opener features a powerful DC motor, sturdy gearing, and articulated arms that ensure seamless operation. Whether you opt for a two, three, or five wire installation, the Elite Gate Opener offers configurability to meet your specific requirements.

Designed to withstand the challenging Australian conditions, the Elite Gate Opener is built to last. Its core comprises a robust DC motor coupled with a reliable, low maintenance gearbox. The power generated by this combination is efficiently transmitted to the articulated drive arms, delivering smooth operation while minimising stress on the entire system. Adding to its reliability, the Elite Gate Opener incorporates highly effective micro-switch limits that simplify operation and enhance its longevity. For even greater versatility, pair it with our DCB-05 Control System, which offers a range of operating modes and performance variations to suit your individual needs.

Parts Supply List

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).
