ATA GDO-12 HIRO (60195)
$885.95
12 in stock
ATA Heavy-Duty Slimline Roller Door Opener

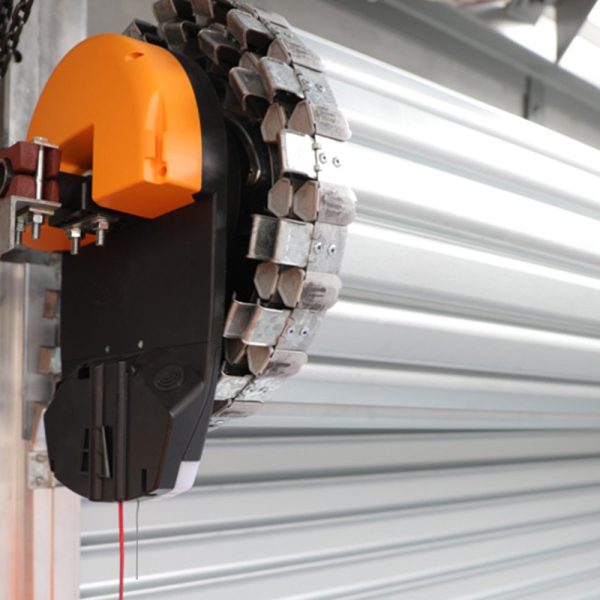

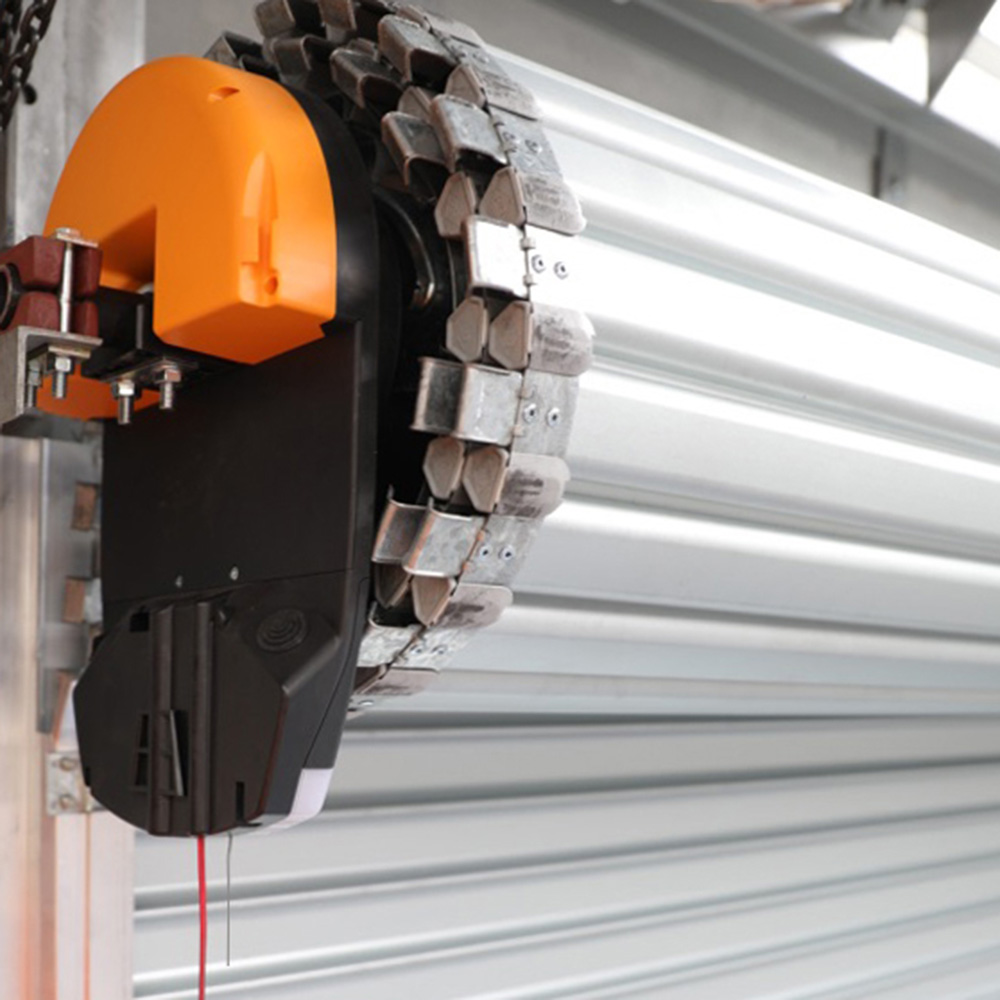

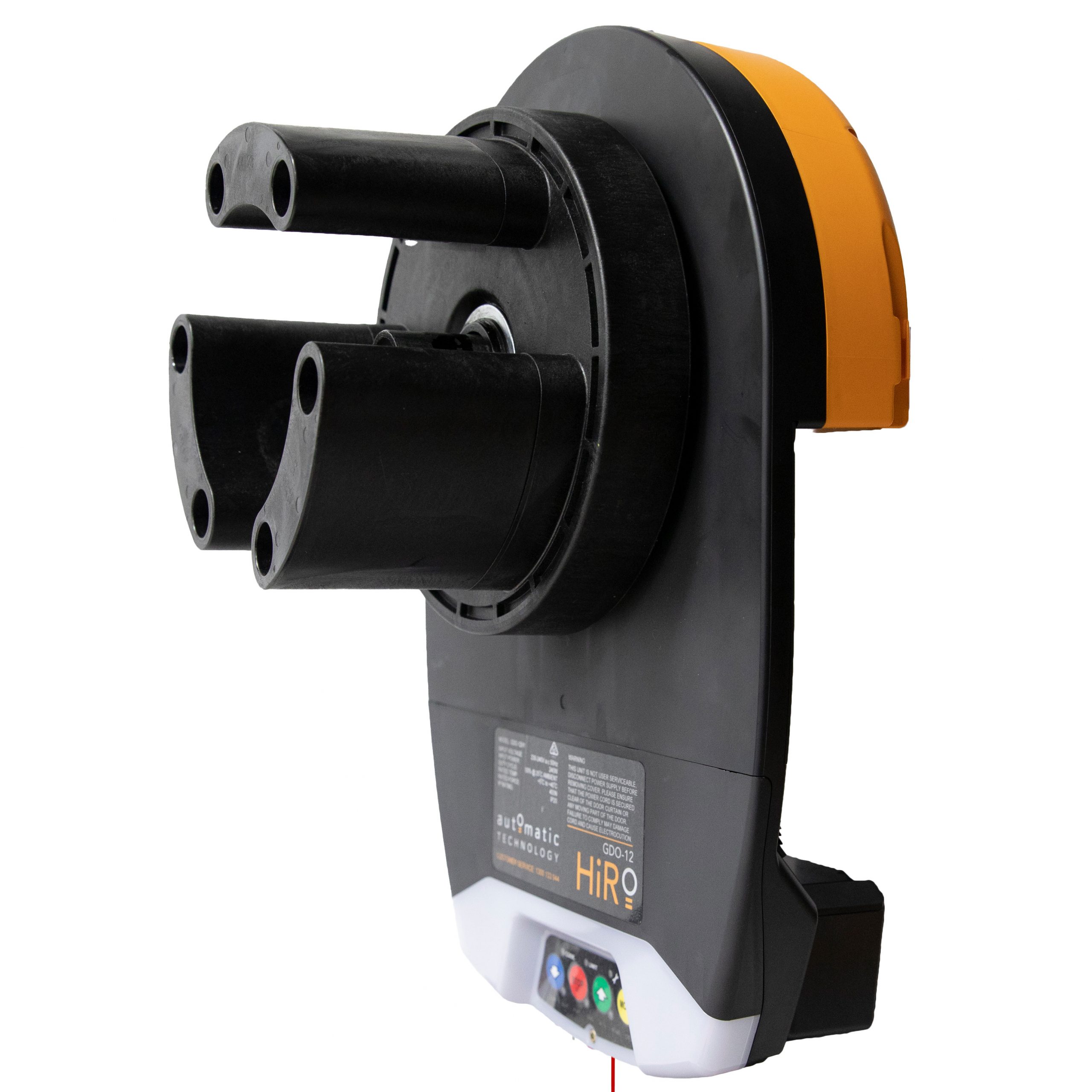

The ATA GDO-12 Hiro is the most powerful and slimmest roller door opener in the ATA range, purpose-built for very large, heavy-duty, and wind-locked roller doors. Designed for light-commercial applications and advanced connectivity, Hiro delivers unmatched strength, reliability and convenience – all in a compact slimline unit.
Whether you’re operating a 28m2 rolling door or a wind-locked door up to 22m2, the Hiro has the muscle and intelligence to handle it with ease. Its ultra-slim design requires just 35mm side room, making it the perfect solution for tight spaces where traditional openers simply won’t fit.

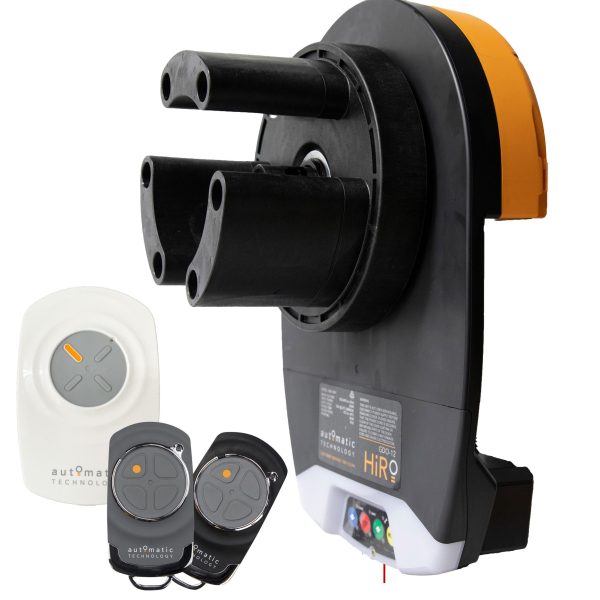

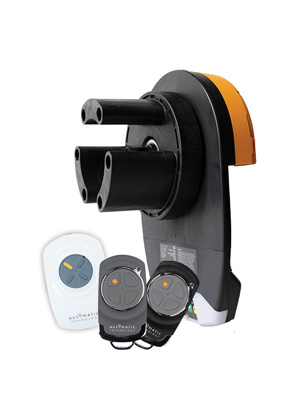

What’s Included:
- 1 × ATA GDO-12 Hiro Motor
- 1 x ATA Wall Button Transmitter
- 2 x ATA PTX6 Transmitters
- Installation Accessory Pack
- 1 Step-by-step Installation Instructions
Key Features
- Slimline Design: Requires only 35mm side room for installation, making it suitable for sites with limited space.
- Heavy-Duty Performance: Operates doors up to 28m², including wind-locked doors up to 22m².
- Smart Phone Connectivity: myQ-ready for smartphone control, monitoring, and scheduling (Sold Separately).
- Variable Operning Speed: Adjust the speed to match your site requirements
- Versatile Installation: Can be fitted to either the left- or right-hand side of door.
- Large Removable Forks: Suits most drum wheels for flexible installation
- Courtesy LED light: Provides improved visibility and safety during operation
- Durability & Reliability: Built for light commercial use, ensuring smooth and dependable performance.
- Fully Compliant with Australian Safety Standards.
Ideal Applications:
- Light- commercial sits requiring strong, reliable automation
- Very Large Roller Doors up to 28m2
- Wind-Locked doors up to 22m2
- Tight Spaces with limited side room (only 35mm clearance required)
Technical Specifications:
| Specifications | |
| Input Voltage | 230-240 VAC 1-Phase |
| Transformer Rating | 150VA |
| Standby Power | 2.8W |
| Motor Type | 24V D.C Permanent Magnet |
| Motor Power | 150W |
| Short-Term Lifting Force | 1000N |
| Rated Duty Cycle | 100% |
| Rated Door Area | 28m2, 22m2 wind-locked |
| Typical Travel Speed (door and setting dependent) | Variable via Control Panel |
| Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37 MHz) |
| Coding System | Coding Hopping (Non-Linear encryption algorithm) |
| Transmitter Capacity | 511 |
| Courtesy Light | Output Available |
| Safety Beam Compatible | 3 x wireless/ 2-wire safety beams |
| LCD Screen | Yes |
| Warranty
See Warranty Terms and Conditions for more information |
2 Years, 5,000 cycles (whichever occurs first)
Must be installed and serviced by a trained technician. |
Additional information
| Weight | 10 kg |
|---|---|
| Application | |
| Brand | |
| Opener/Motor Type |
