Grifco LS Drive – Light Commercial Sectional Door Open...

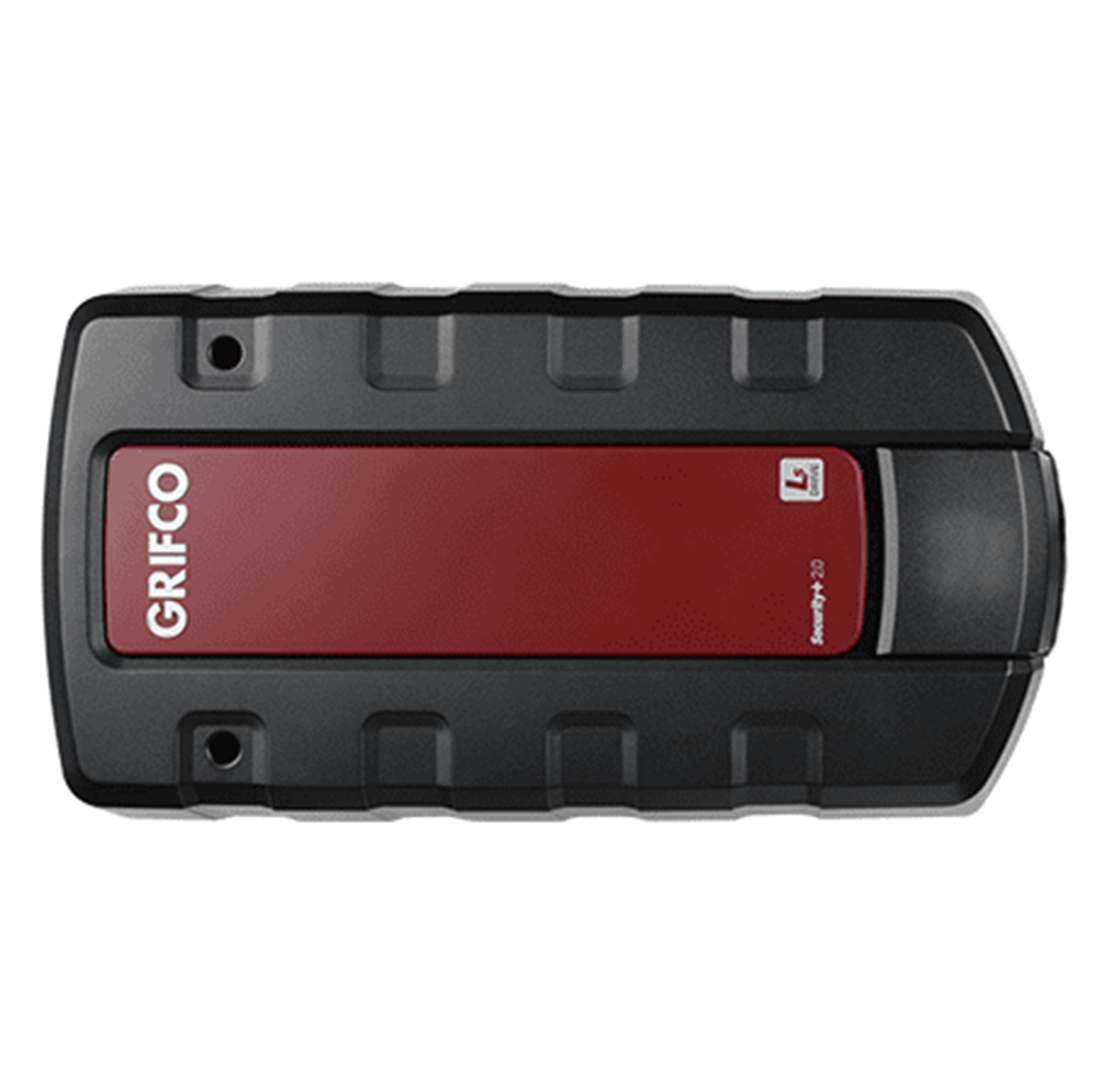

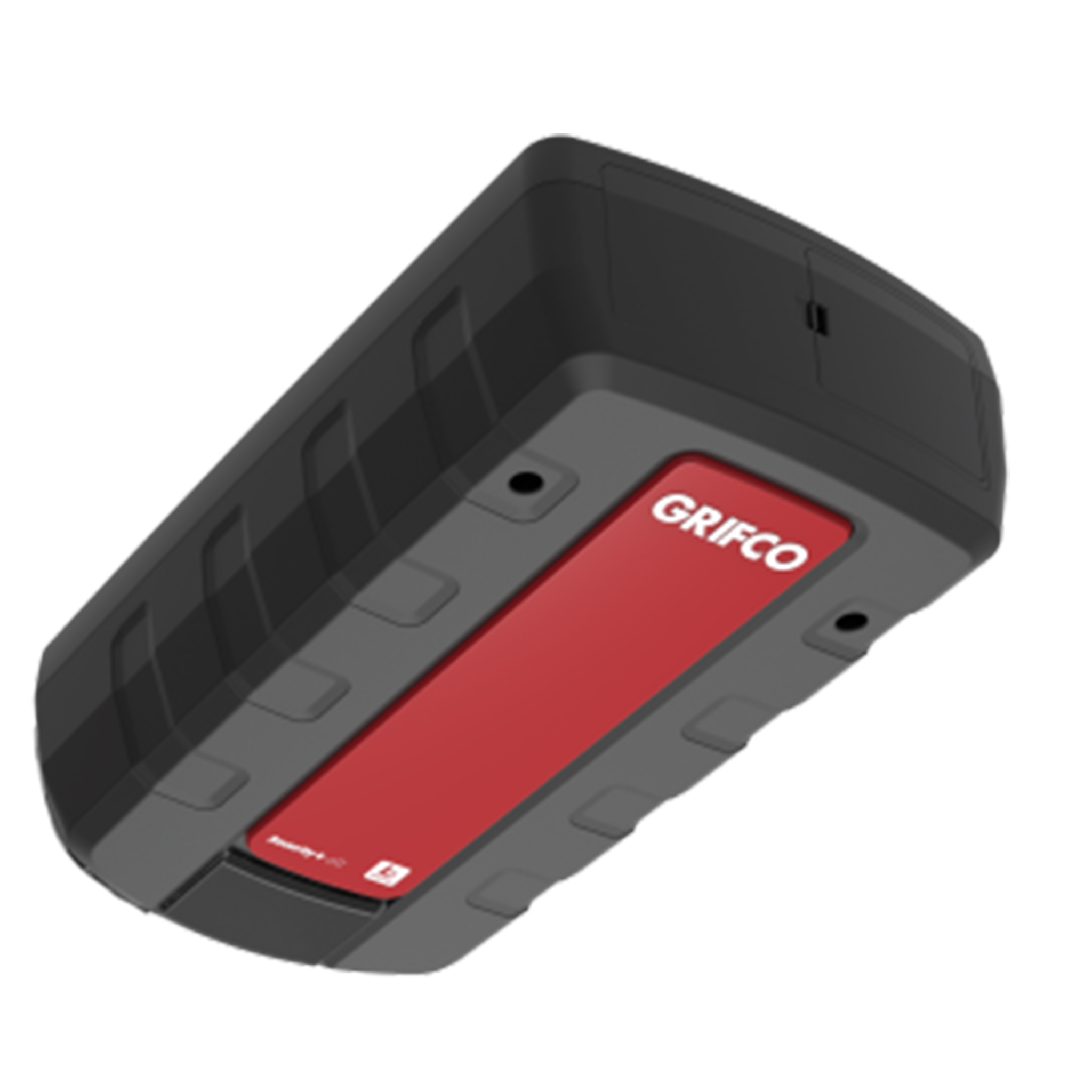

Light Commercial Sectional Door Opener (Model: GLD-SDO)
The Grifco LS-Drive is a high-cycle operator designed for light-commercial sectional doors such as those found in small carparks and multi-tenanted complexes. Built for up to 50 cycles per day, it is the perfect balance of reliability, performance, and easy of use. With quiet operation, smart logic options, and a durable extruded aluminium rail system, the LS-Drive is built to withstand demanding environments without unnecessary complexity.
What’s Included:
- 1 × GRIFCO LS-Drive (Model GLD-SDO)
- 2 x Grifco E960G Keyring Transmitters
- Installation Accessory Pack
- 1 Step-by-step Installation Instructions
Note: Rail system, myQ accessories and safety beams sold separately.
Key Features:
- High-Cycle Operation: Designed to handle up to 50 cycles per day, making it ideal for small commercial carparks.
- Quiet & Smooth Drive Train: Provides soft start/soft stop for fast, smooth, and low-noise door cycles
- Integrated Logic options: Easily configure settings such as open-only mode, timer-to-close, and held-open inputs (perfect for fire panel installation).
- Durable Rail System: Extruded aluminium rail available in two lengths with integrated cable management. Can be surface-mounted for low-ceiling carparks. (Rail sold separately)
- Carpark Ready: Specially designed for multi-tenanted sectional doors where reliability is critical.
- myQ compatible: Add smart control via the optional Grifco myQ Gateway and Safety IR Beam accessories (sold separately)
- Fully Compliant with Australian Safety Standards.
Ideal Applications:
- Small Commercial Carparks
- Multi-tenant building sectional doors
- Light-Commercial Environments requiring reliable automation
Technical Specifications:
| Specifications | |
| Main AC Power Supply | 230-240VAC 50Hz, 225W |
| System Operating Voltage | 24 VDC Transformer |
| Accessory Power | Continuous unregulated 30 VDC, 50 mA max
Switched regulated 24VDC, 150 mA max |
| Max Door Heights | 2.4m (GLD-R2.4M)
3.0m (GLD-R3.0M) |
| Maximum Door Weight | 160kg balanced door |
| Maximum Door Area | 15m2 |
| Opening Travel Speed | 14.2cm per second |
| Closing Travel Speed | Default - 7.6cm per second
Fastest – 14.2cm per second (light weight doors) |
| Max. Door Cycles | 50 cycles/day |
| Operating Temps | +5°C to +40°C |
| Timer-to-Close | 10-180 seconds (10 second increments) |
| Transmitter Management | 65 Devices |
| Compliance | AS/NZS 60335-1 / AS/NZS 60335-2-103 / AS/NZS 4417.1 |
| Warranty
See Warranty Terms and Conditions for more information |
24 months from date of purchase or 20,000 cycles (whichever happens first)
Must be installed and serviced by a trained technician. |
