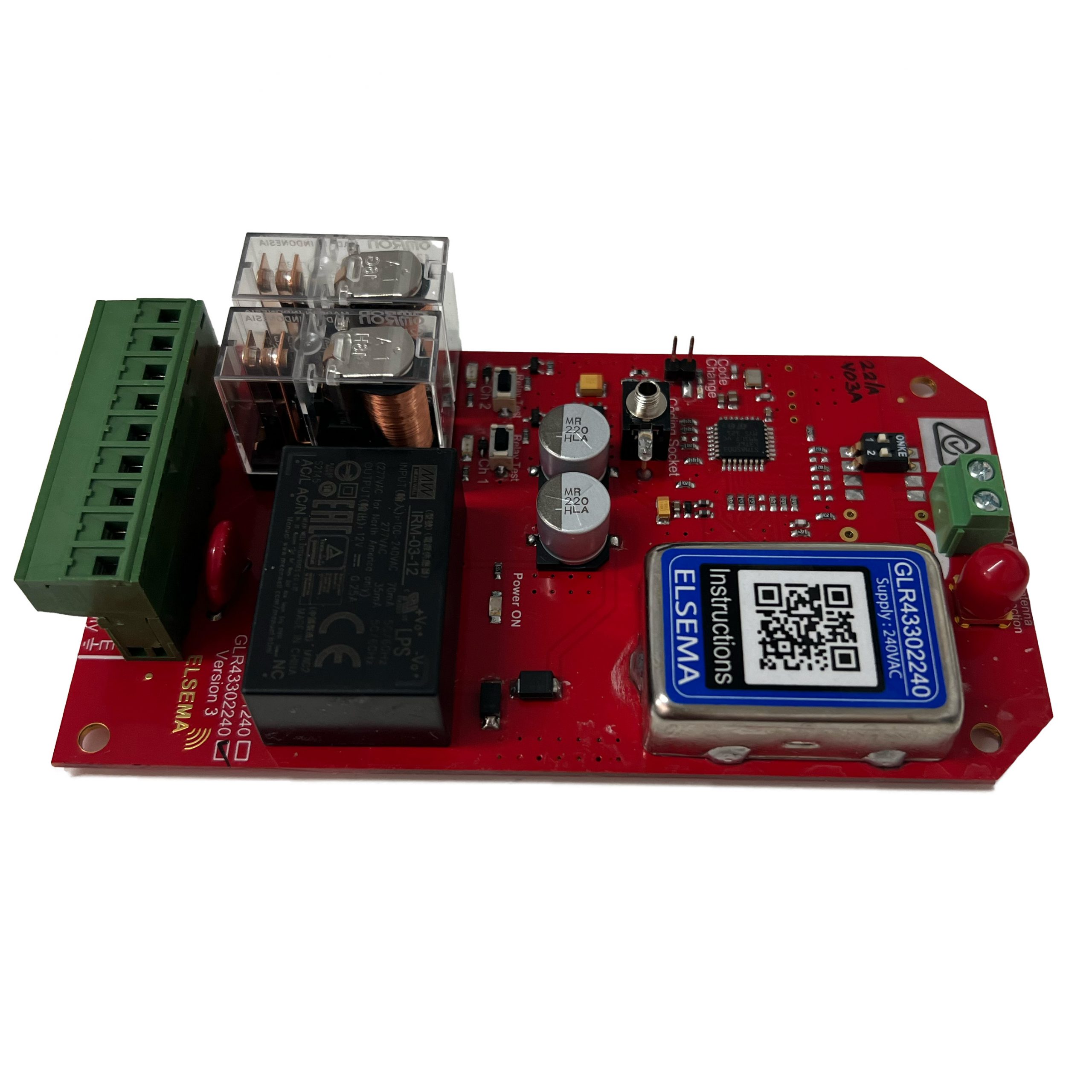

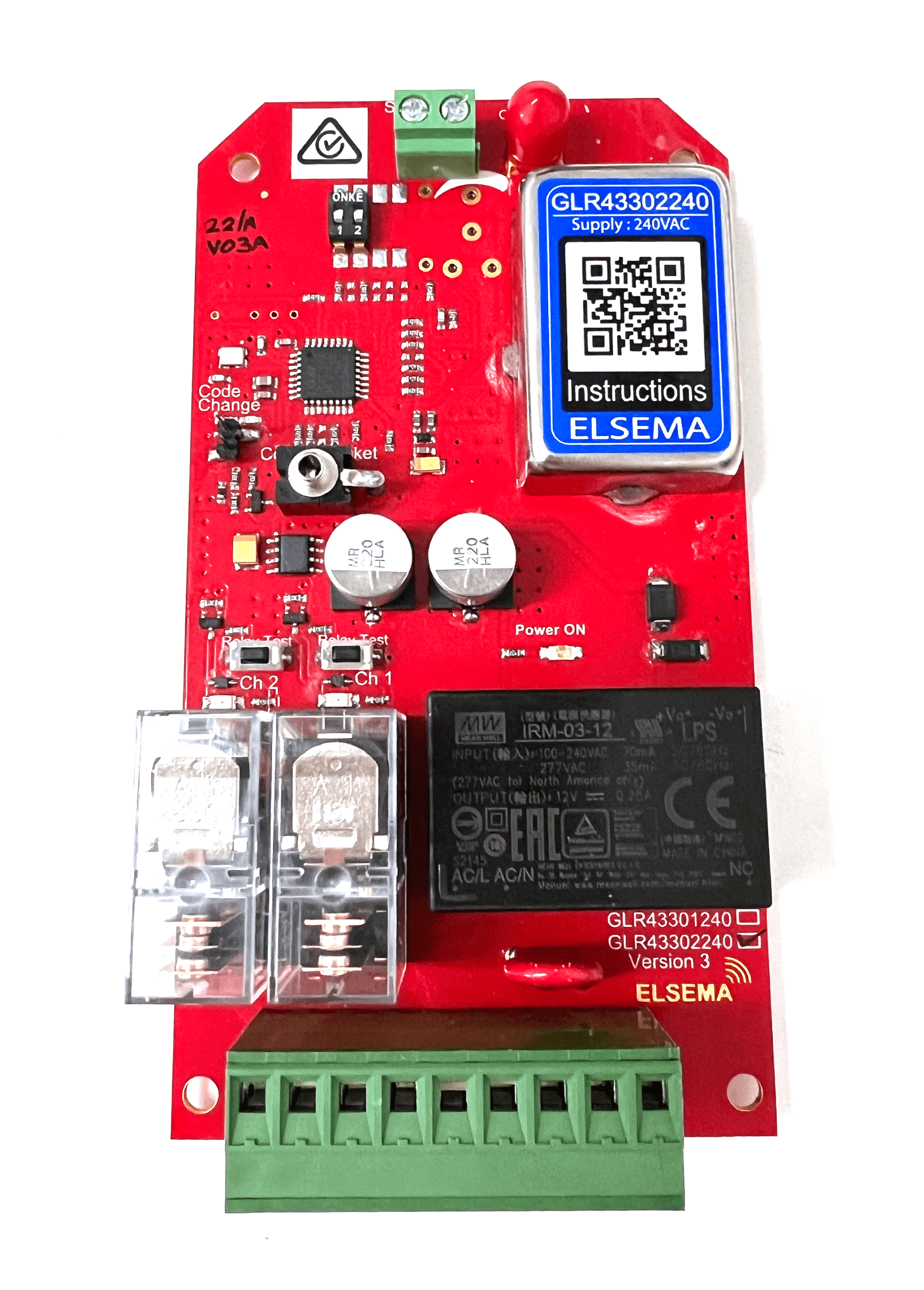

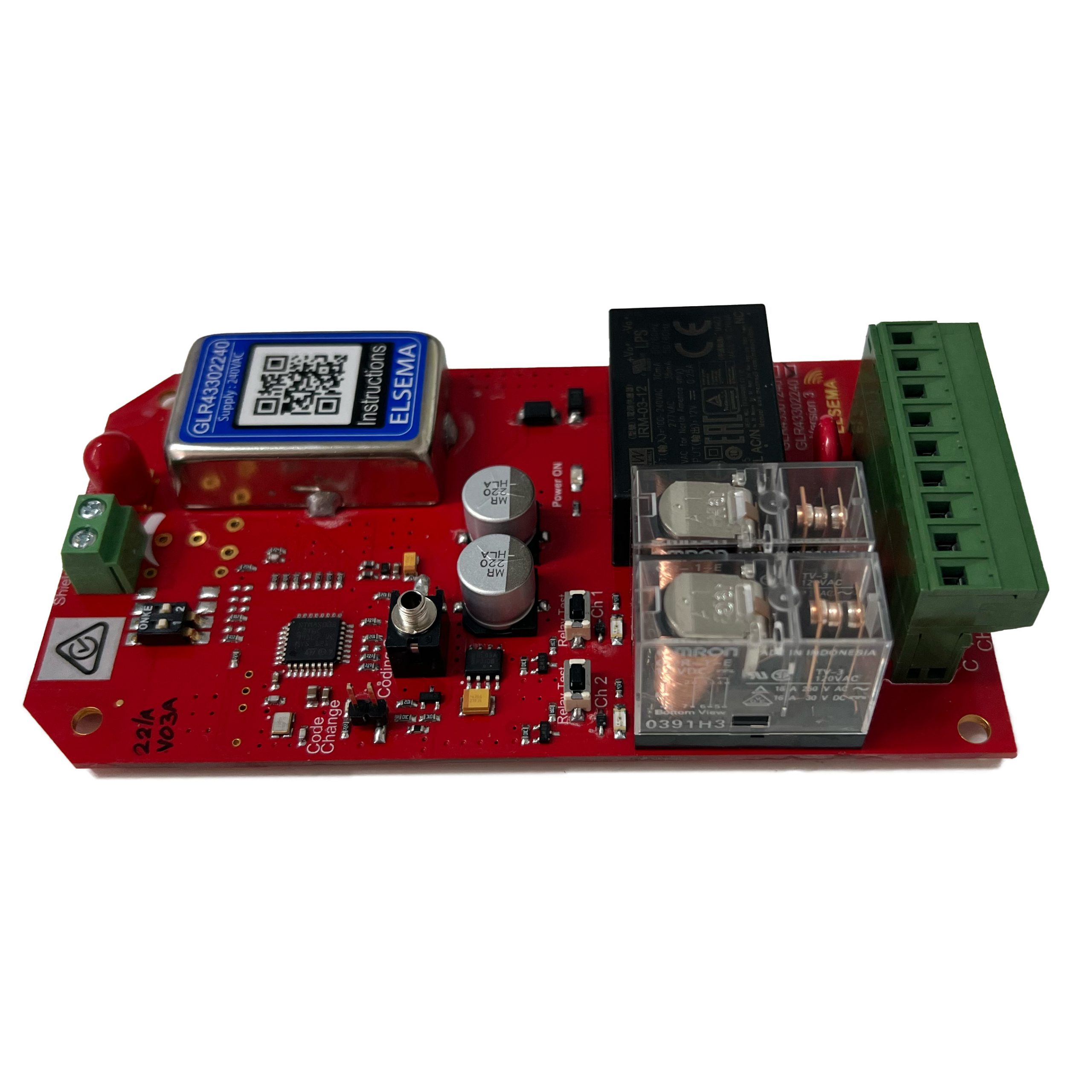

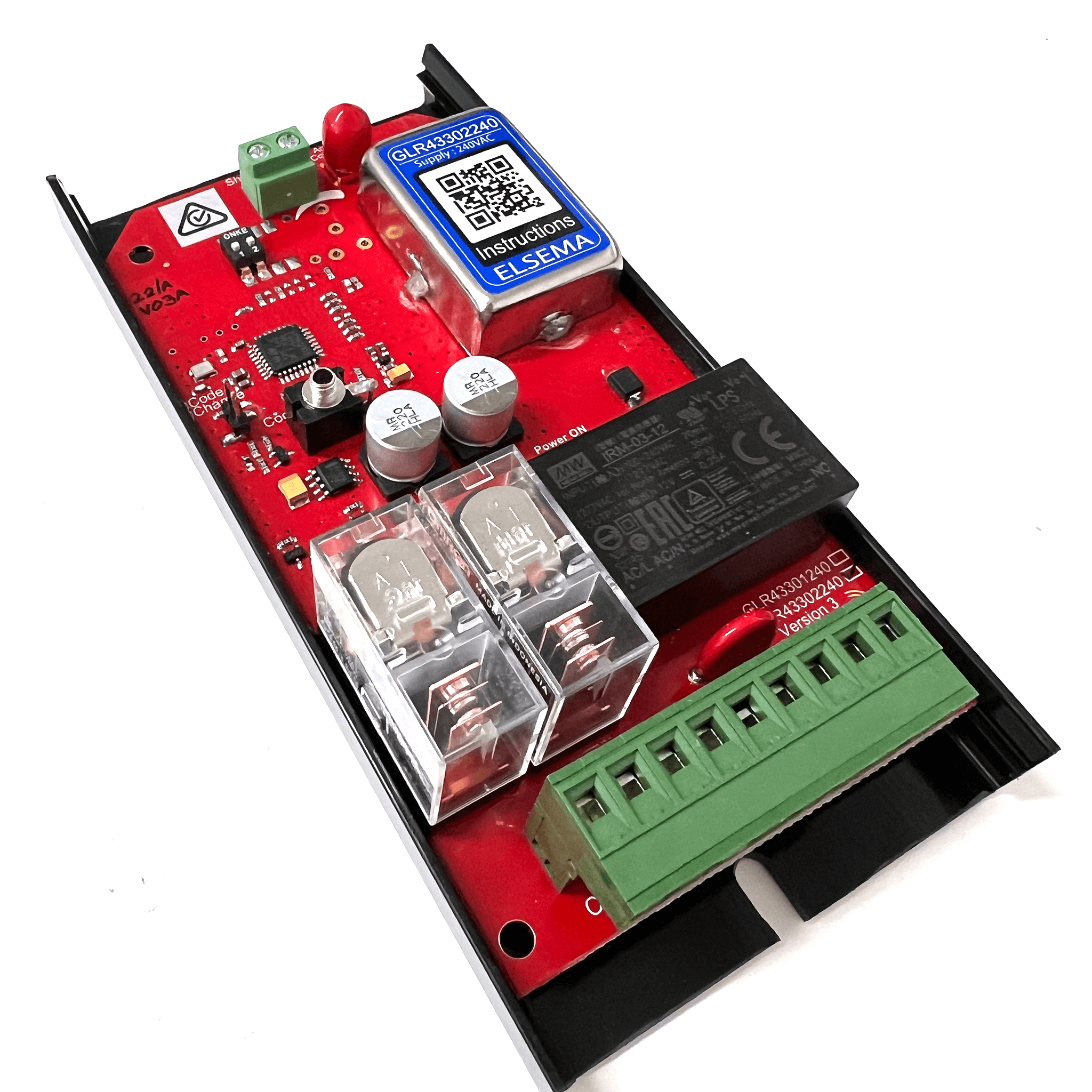

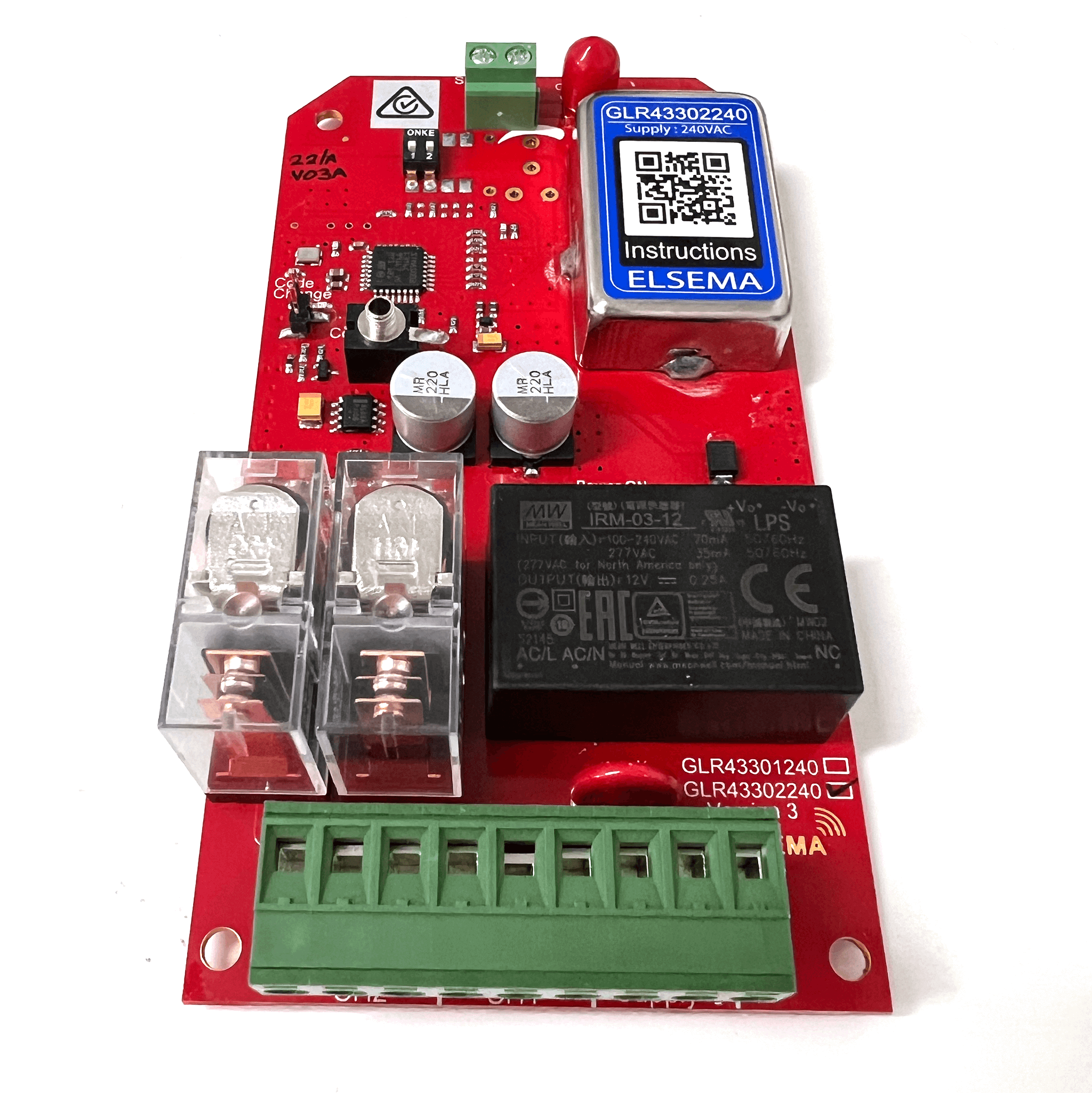

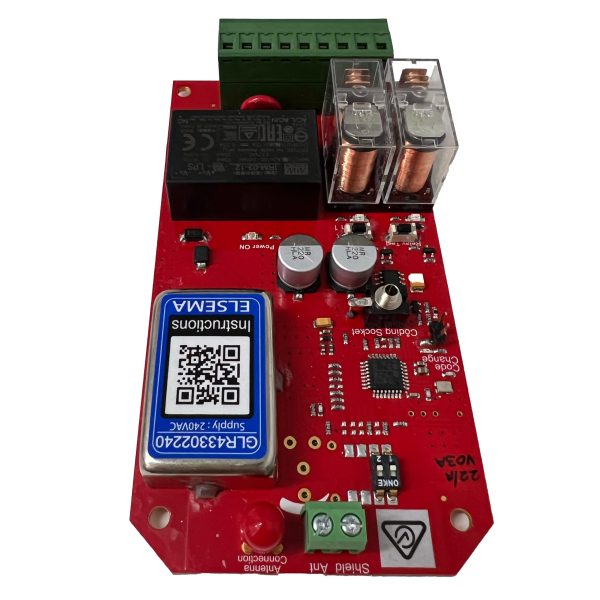

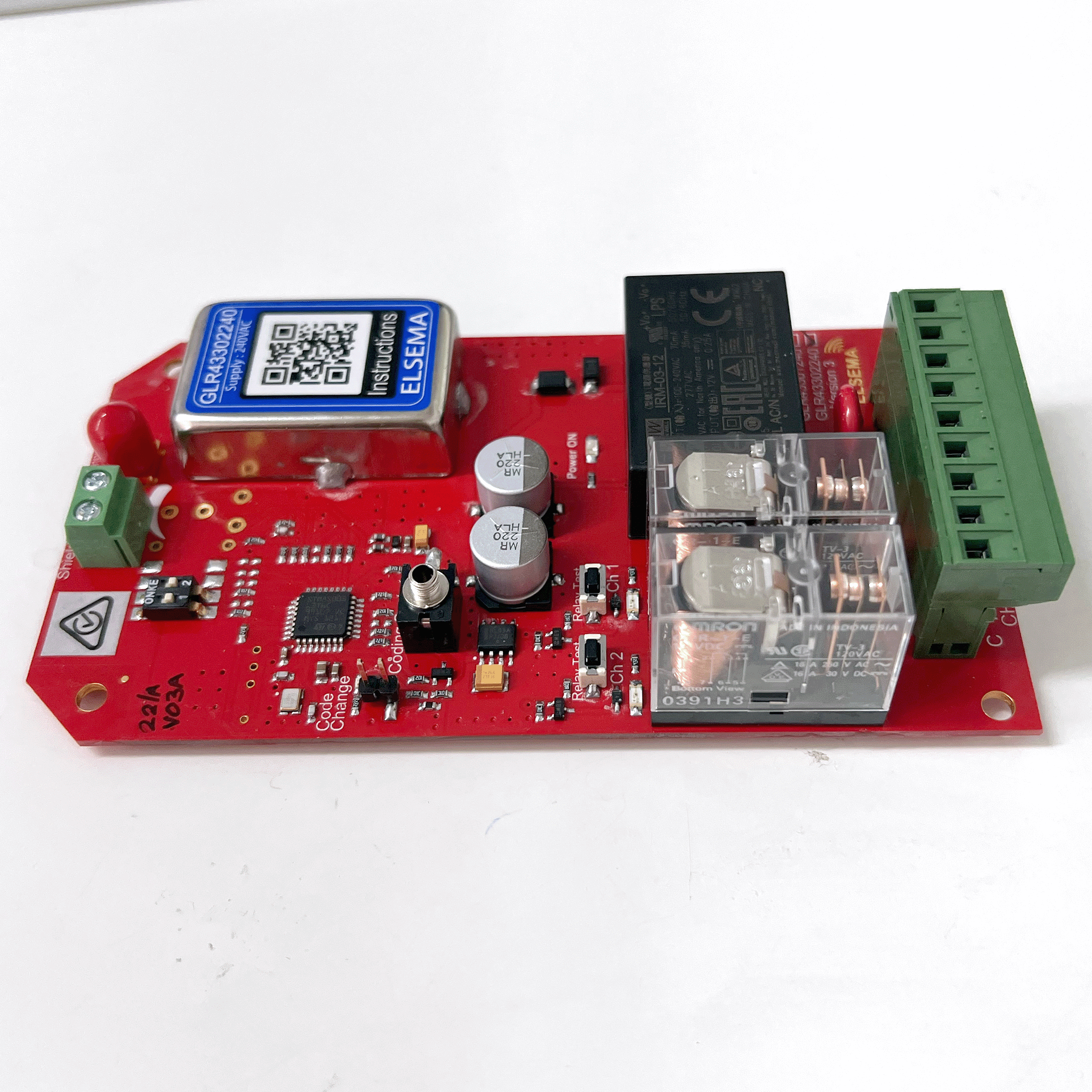

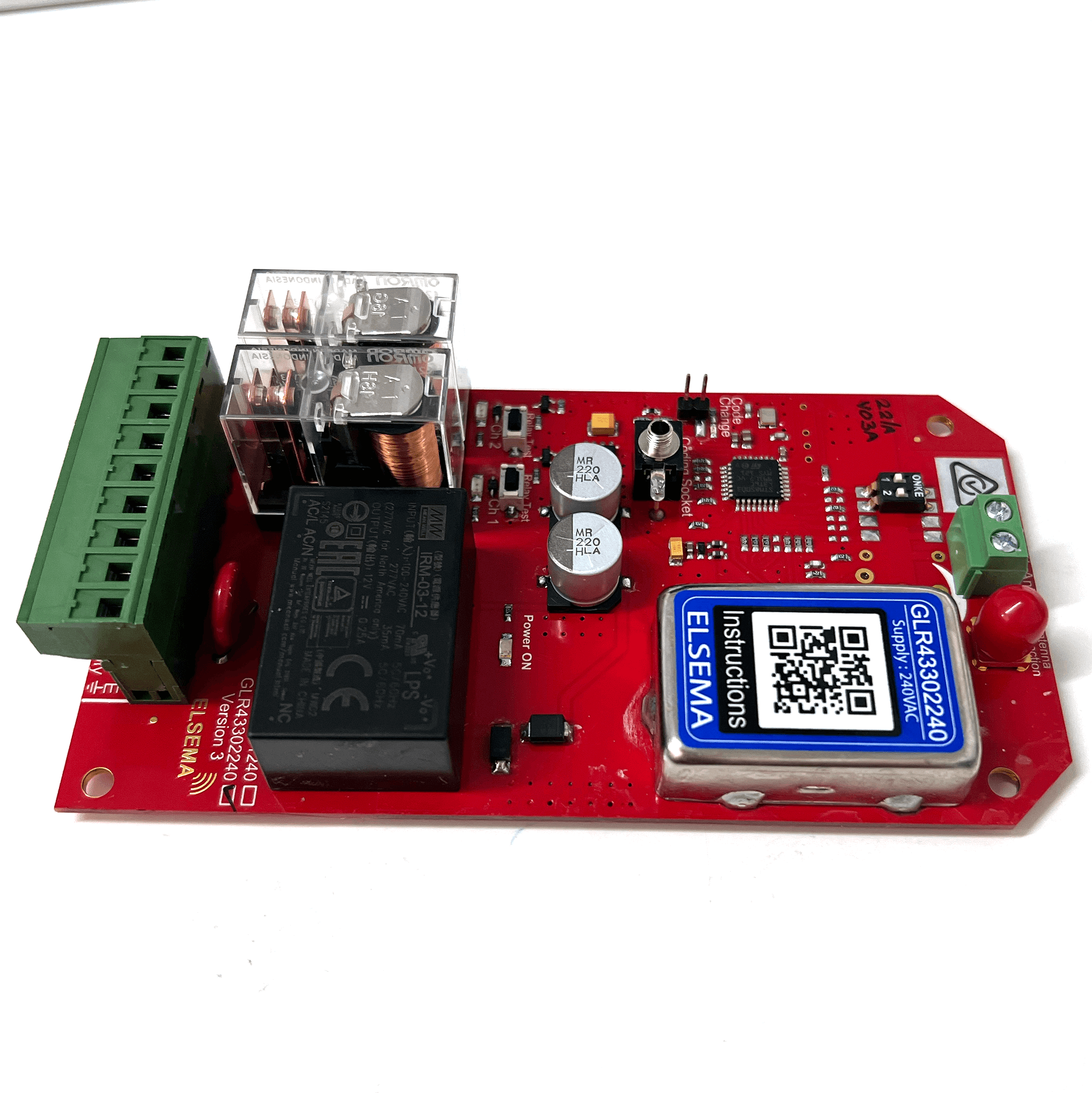

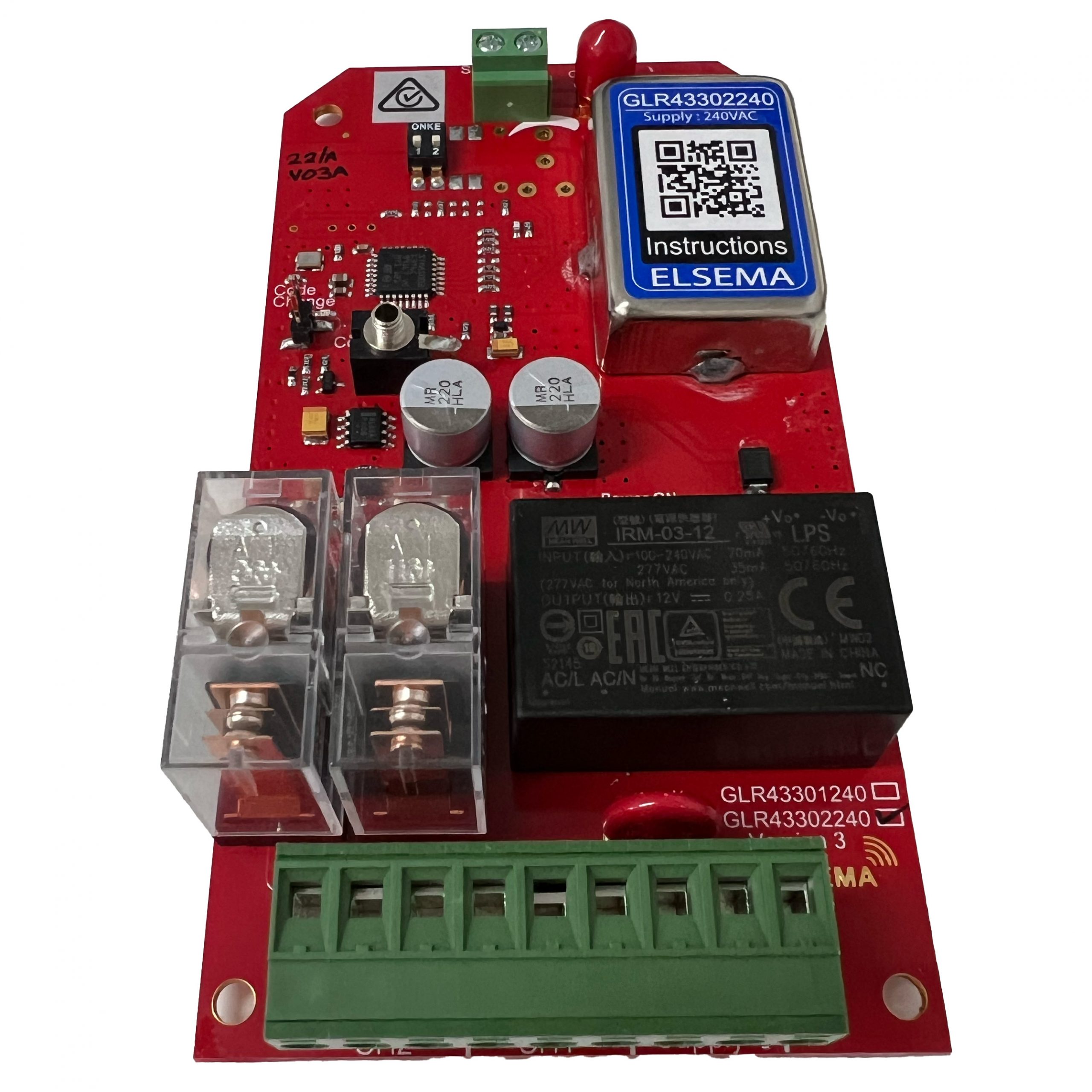

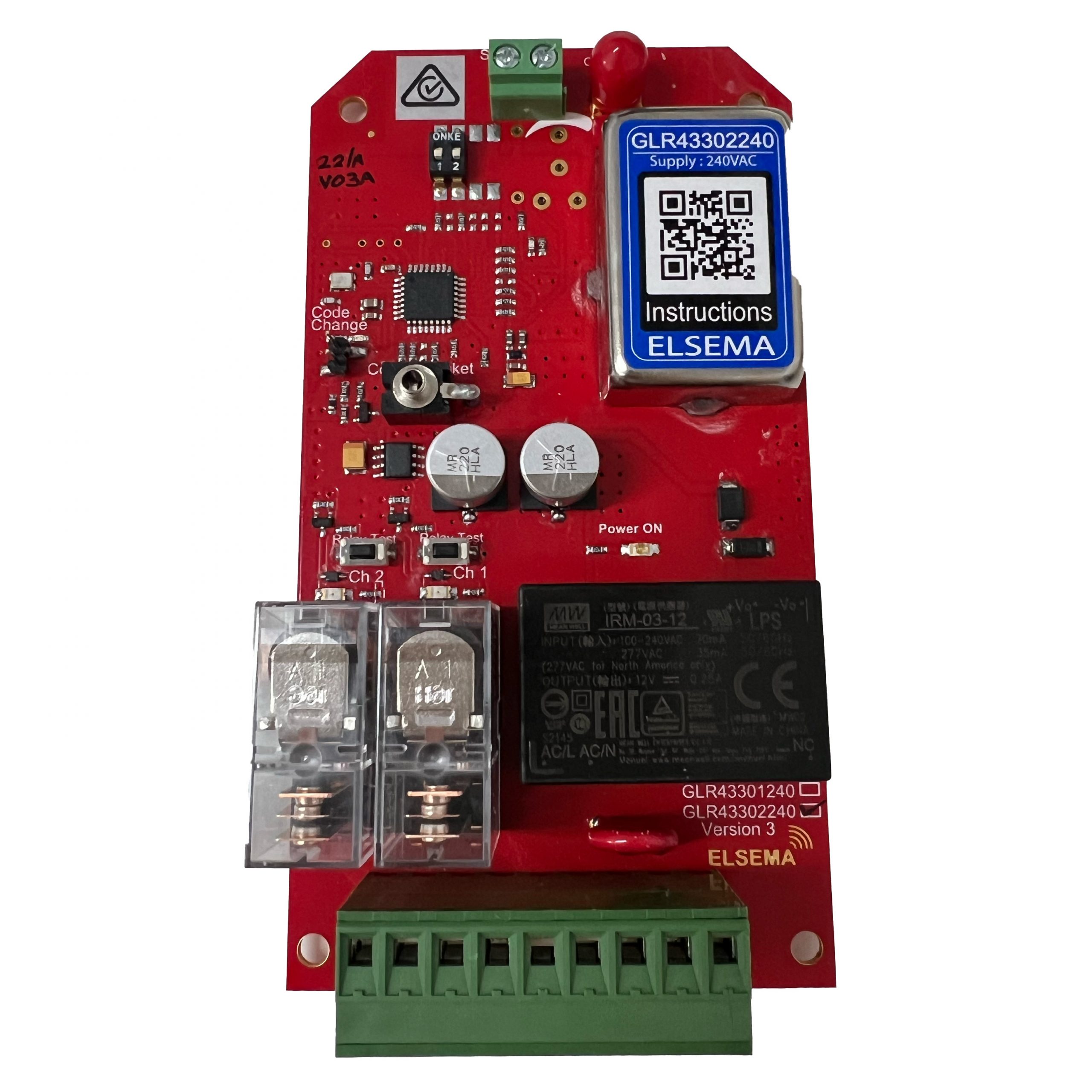

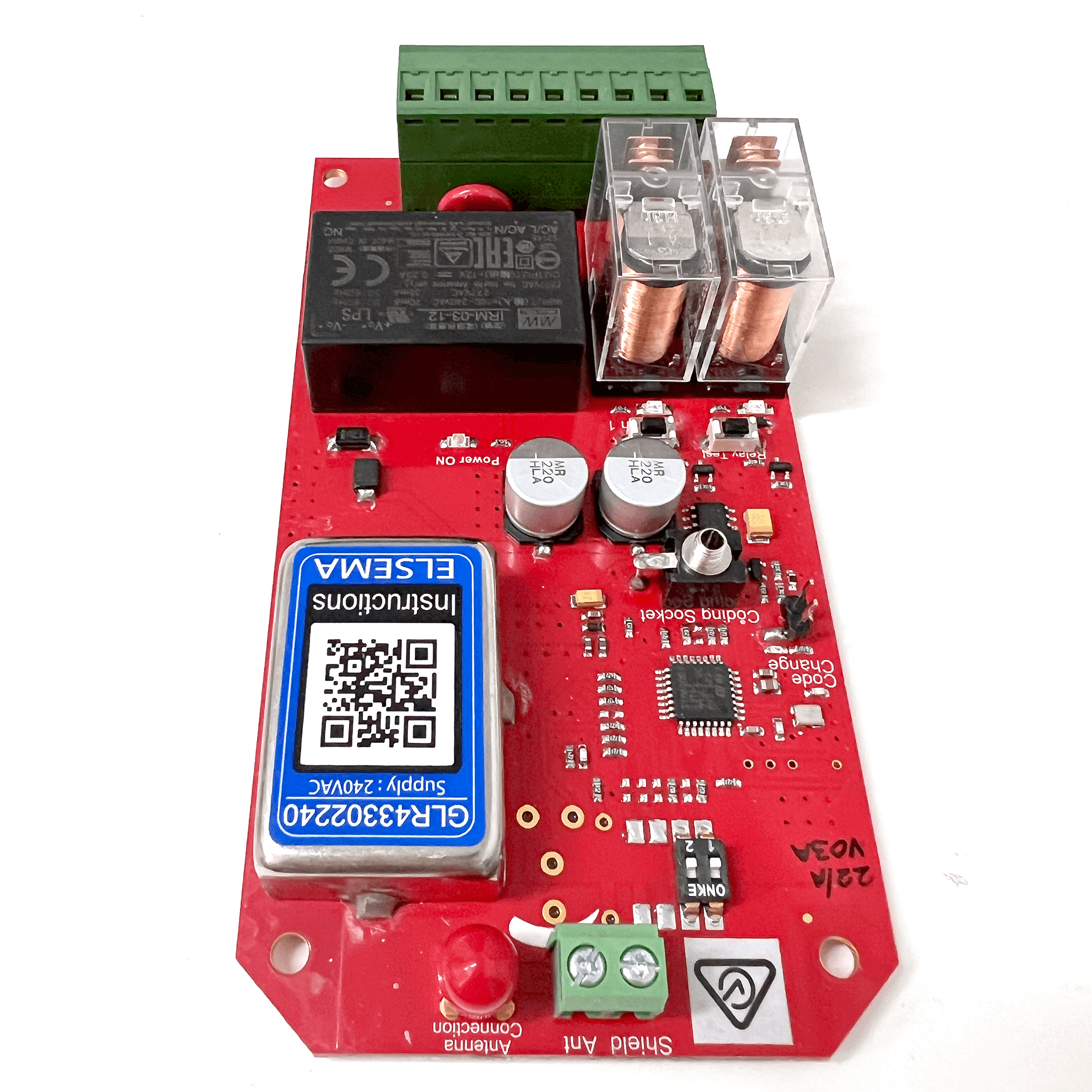

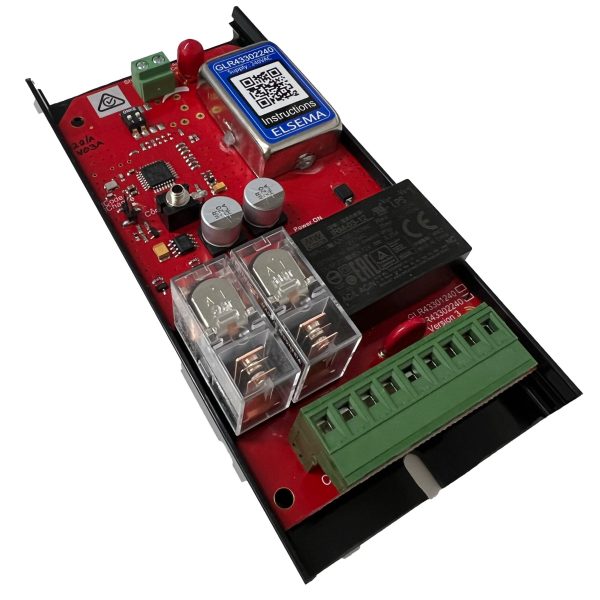

Elsema Gigalink GLR43302240, 2 Channel 240V Receiver

Features:

• Two-channel receiver with high-capacity relay outputs
• Compatible with 240VAC mains supply (110-120VAC available for international markets)
• Supports over 4 billion code combinations with unlimited transmitter storage
• Crystal-controlled and powered by a toroidal transformer for high reliability and efficiency
• On-board switch for manual relay testing and LED indicators for power and relay status
• Highly sensitive input stage for long-range applications
• Multiple modes: Momentary, Latching, Delayed Off (1-300 seconds), Pulsing, Security Latching, On-Off, and Custom
• Weatherproof version (E) available for outdoor applications
• 12-month manufacturer's warranty*
• Free shipping Australia-wide*

Includes:

• Genuine Elsema 2 Channel 240V channel receiver
• QM150 Quickmount
• Elsema Coding Cable
• Programming Instructions

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we'll be happy to assist!

Compatibility:

• GLT43301
• GLT43302
• GLT43304
• GLT43308
• ANT433 LP (Antenna)
• ANT433 S (Antenna)
• ANT433 M (Antenna)

The Elsema Gigalink GLR43302240 is a highly reliable, 2-channel 240V receiver designed for long-range and high-performance applications. This versatile receiver features two high-capacity relay outputs and can be directly connected to a 240VAC mains supply. It supports a wide range of automation systems, with multiple operating modes such as momentary, latching, delayed off (1-300 seconds), pulsing, and more.

Equipped with a highly sensitive input stage, the Elsema Gigalink GLR43302240 ensures extra-long-range control, making it ideal for a variety of applications. The crystal-controlled circuitry and toroidal transformer provide superior reliability and efficiency, while the receiver’s microcontroller allows it to store an unlimited number of transmitters with a high-security 32-bit encrypted code.

The on-board LED indicators show both power and relay status, while the manual relay test switch offers easy diagnostics. Compatible with multiple Elsema GIGALINK™ transmitters and antennas, this receiver is designed for maximum flexibility and scalability.

Frequently Asked Questions

What type of power supply does the Elsema Gigalink GLR43302240 require?
The Elsema GLR43302240 is powered by a 240VAC mains supply. For international markets, a version that supports 110-120VAC is also available upon request.

How many transmitters can be programmed to this receiver?
This receiver can store an unlimited number of transmitters, making it ideal for large or expandable systems.

What are the operating modes of the Elsema Gigalink GLR43302240?
The receiver supports various modes, including momentary, latching, 1-300 second delayed off, pulsing, security latching, on-off, and custom modes.

What is the maximum relay output capacity?
The relay outputs are rated at 16 amps for resistive loads or 8 amps for inductive loads at 240VAC, making it suitable for high-capacity applications.

What antennas are compatible with the Elsema GLR43302240?
The receiver is compatible with Elsema ANT433 series antennas for 433 MHz applications, and ANT27 series antennas for 27 MHz applications.
