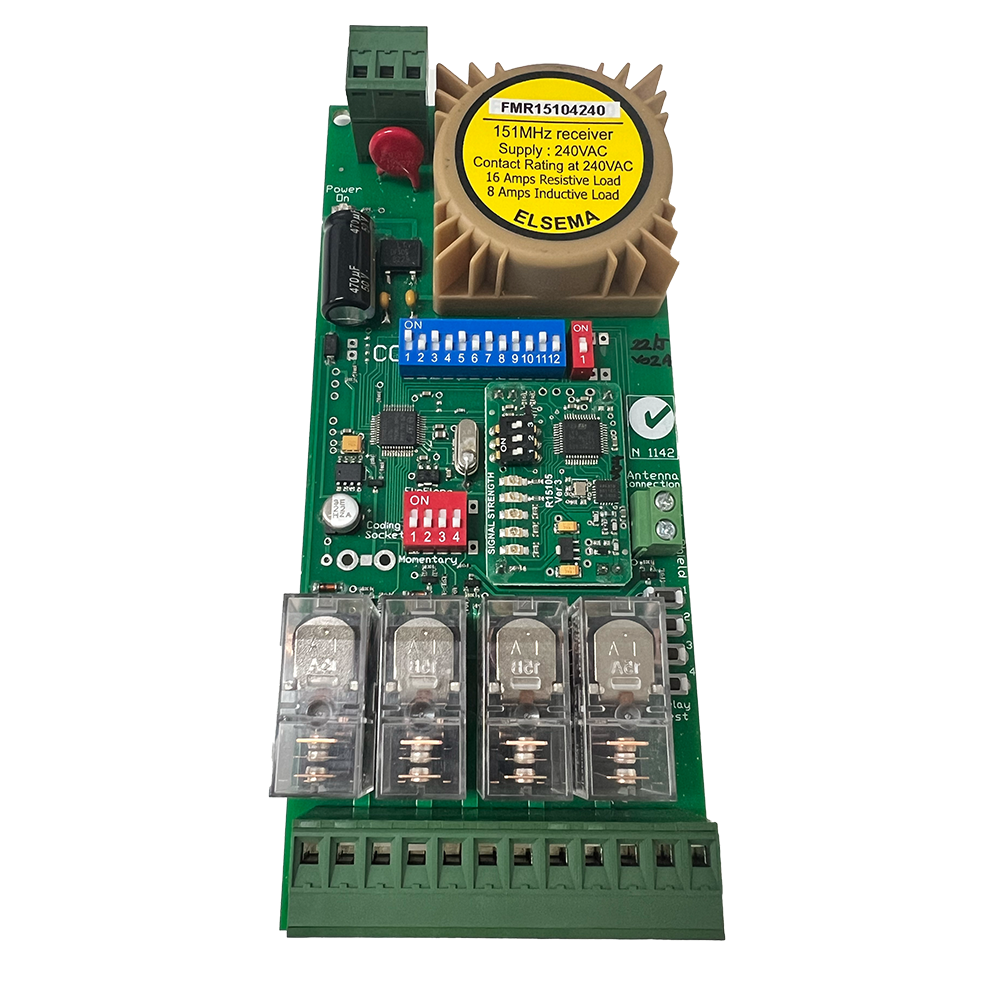

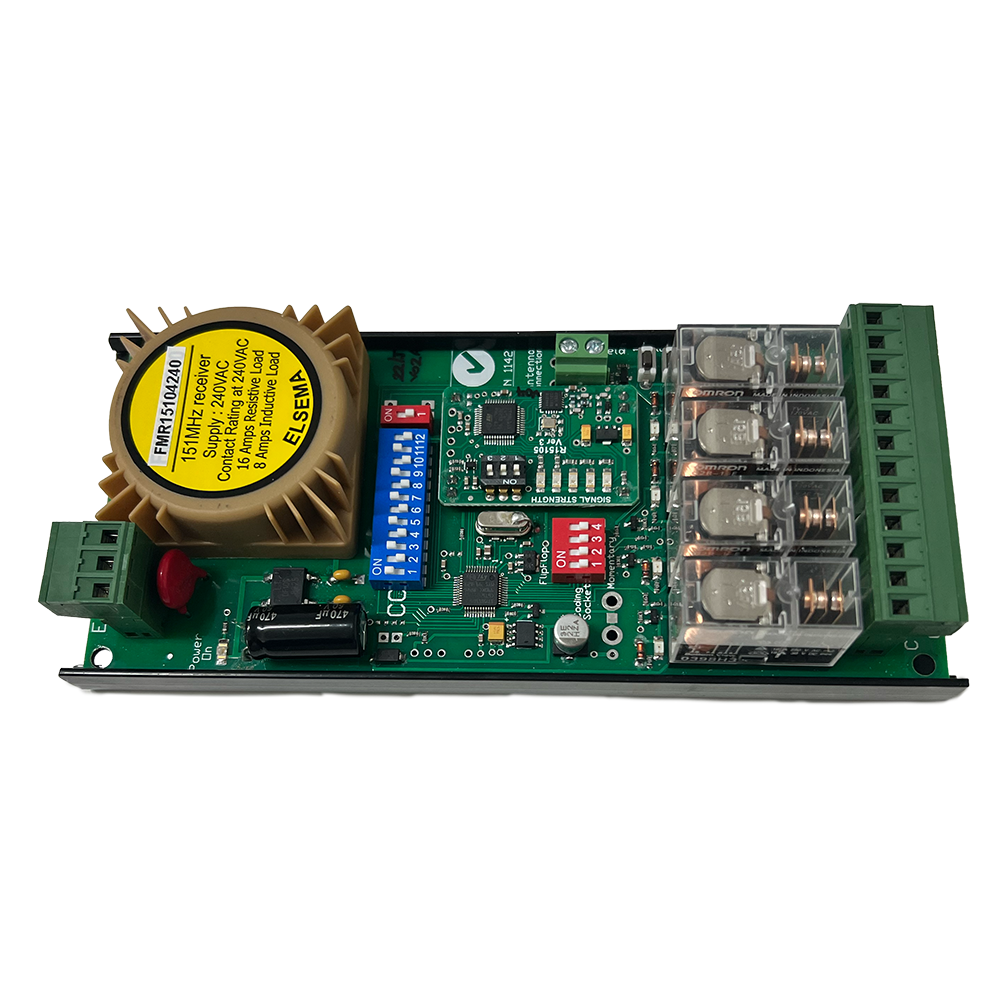

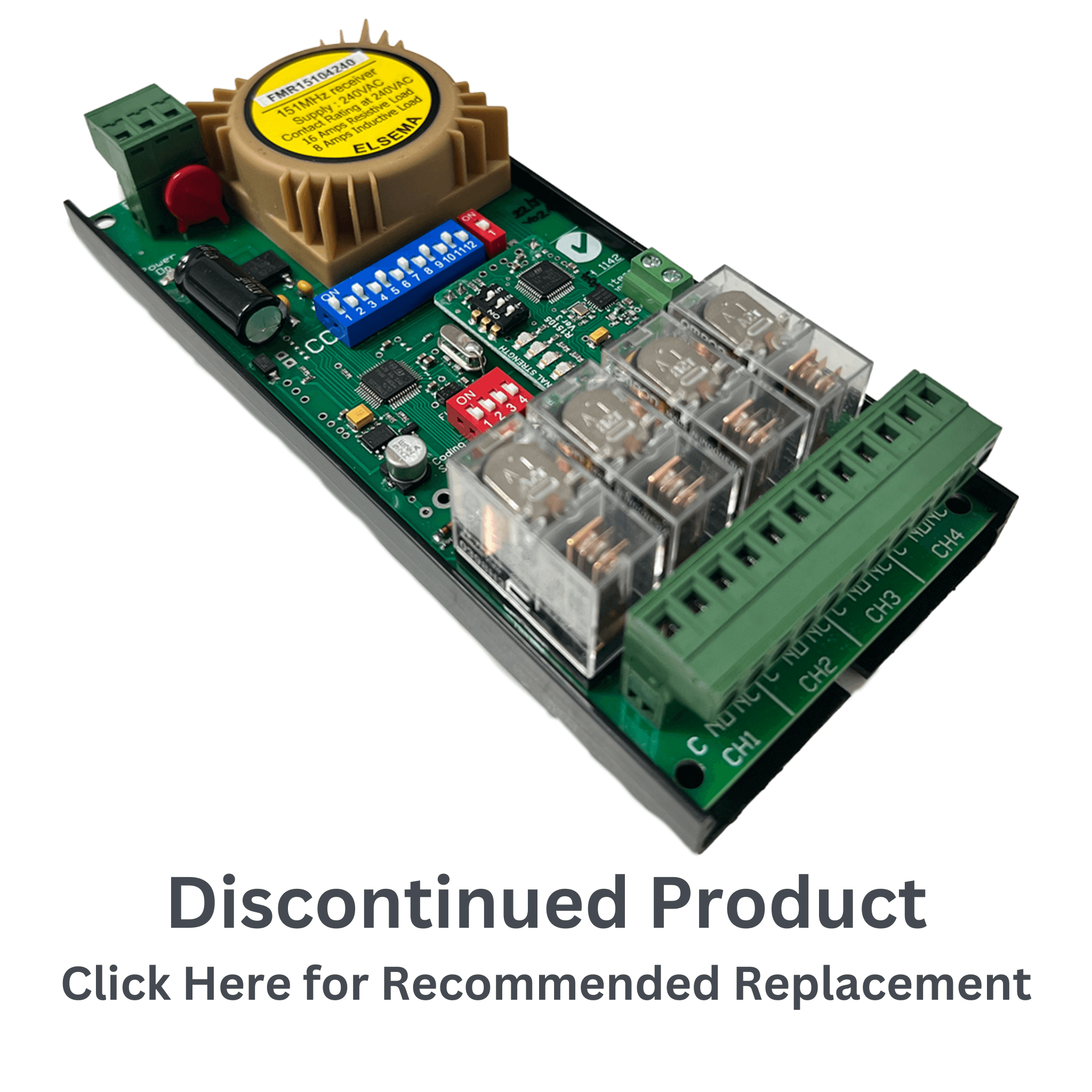

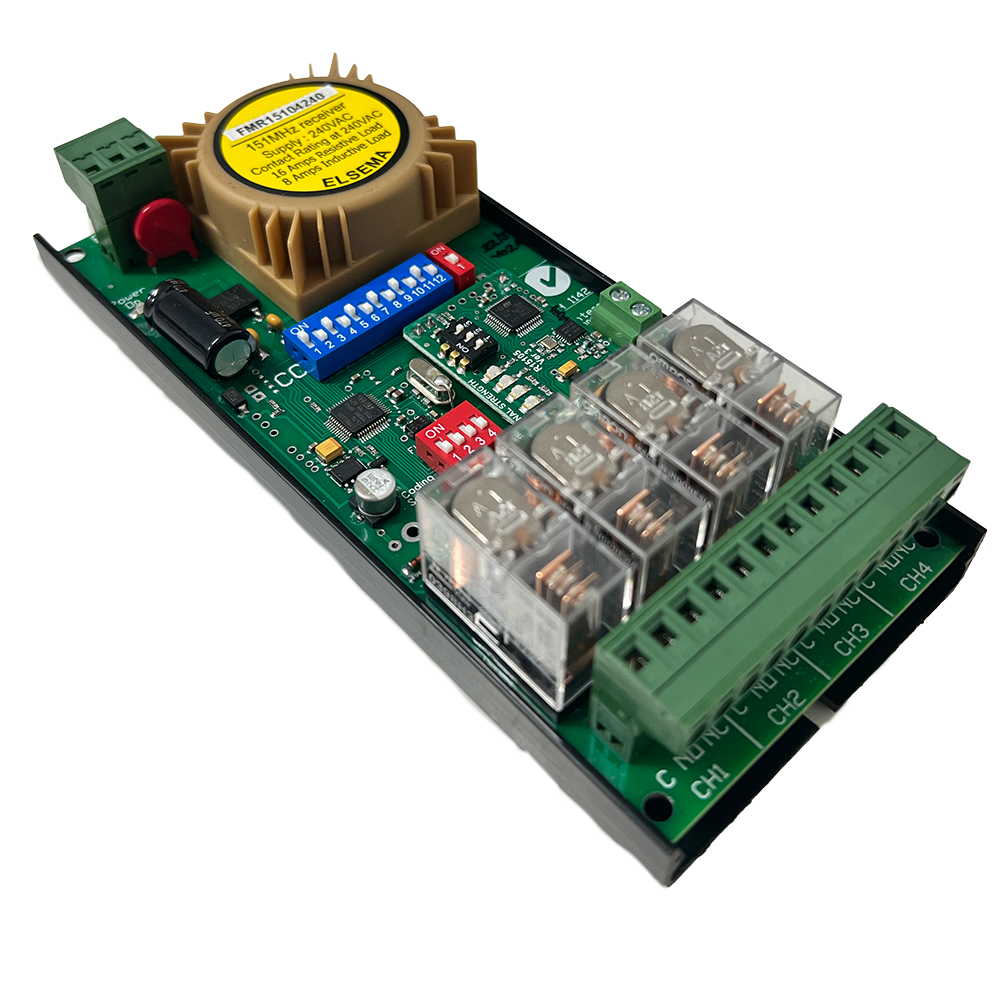

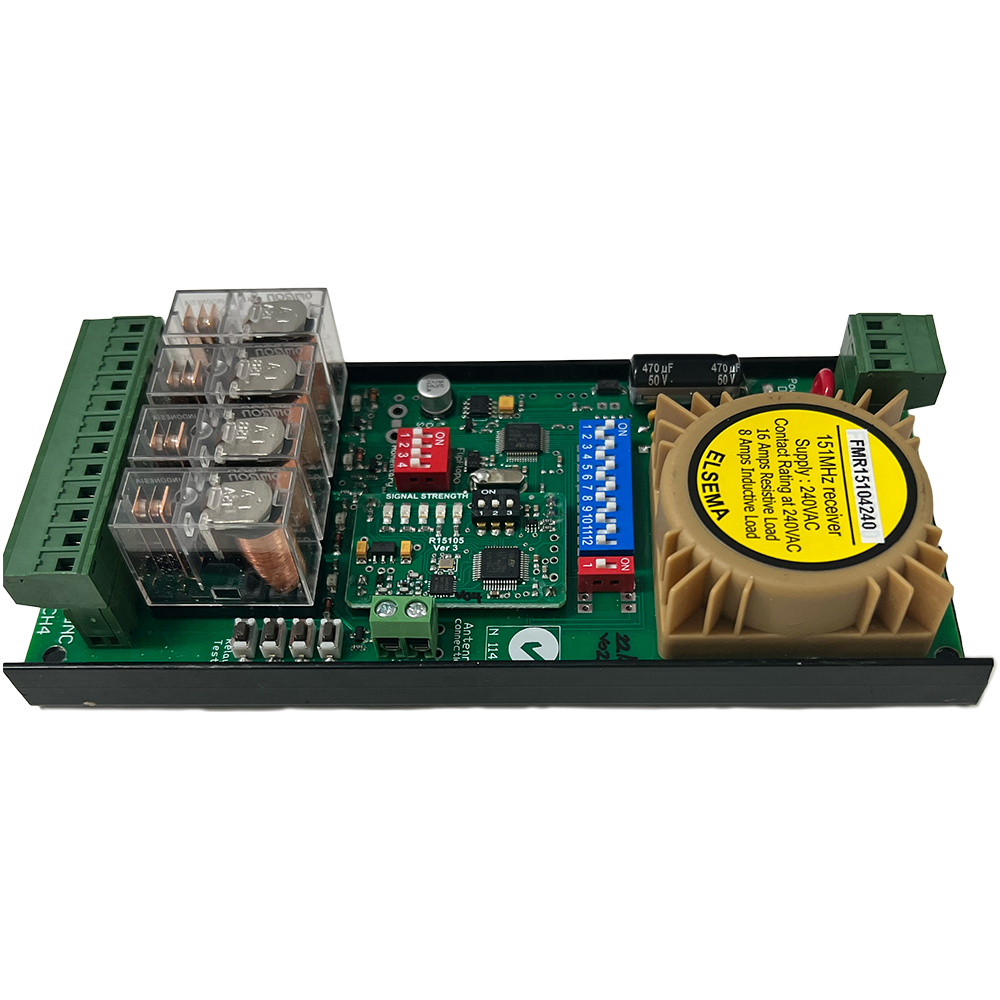

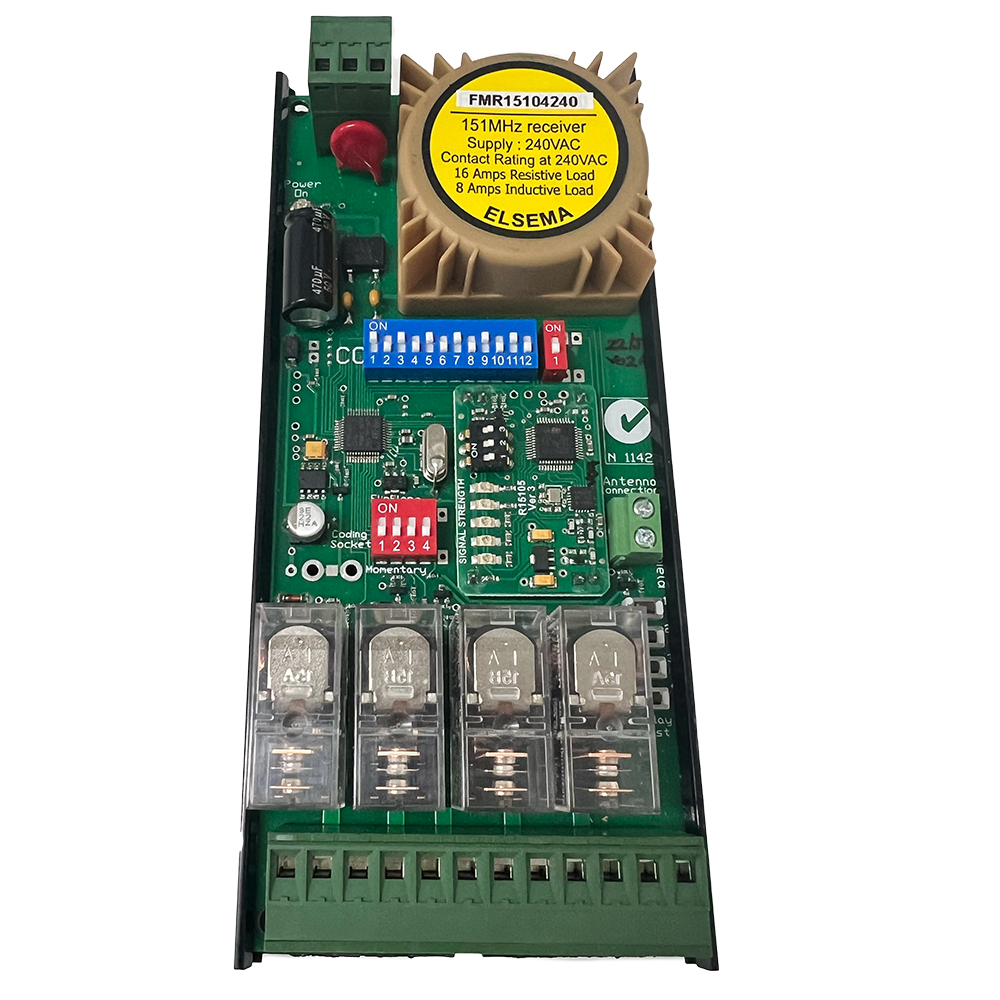

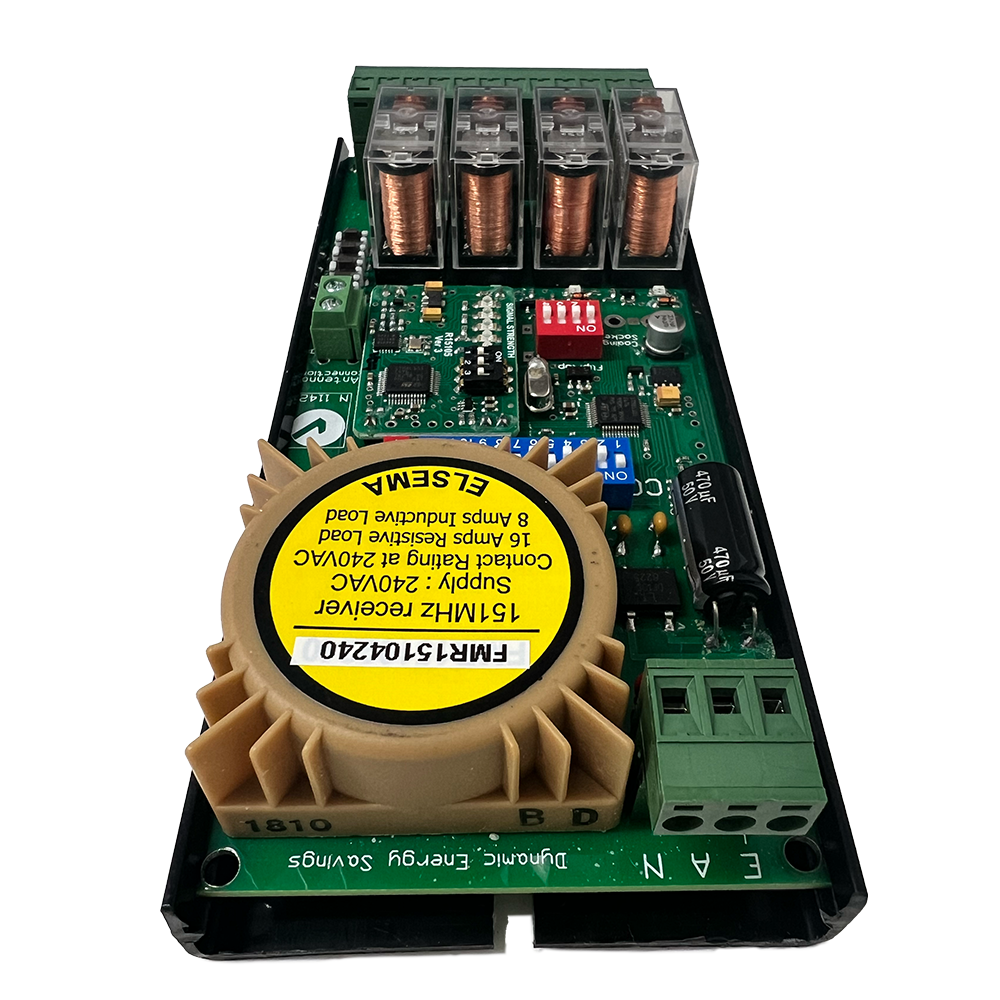

ELSEMA FMR15104240 – 151 Mhz 4Ch Receiver

240V 4 Channel Long Range Receiver

Elsema FMR15104240

Features:

• Four channel receiver with relay output
• Supply Voltage 240VAC
• Built-in noise or signal strength indicator
• User can select 8 different frequencies
• Easy code setup with dip switch settings
• Momentary, latching, timed and security latching output modes can be selected by the user.
• Free Shipping Australia-Wide*
• 2 Years Manufacturers Warranty*

Includes:

• 1 x Brand New Four channel Elsema Receiver

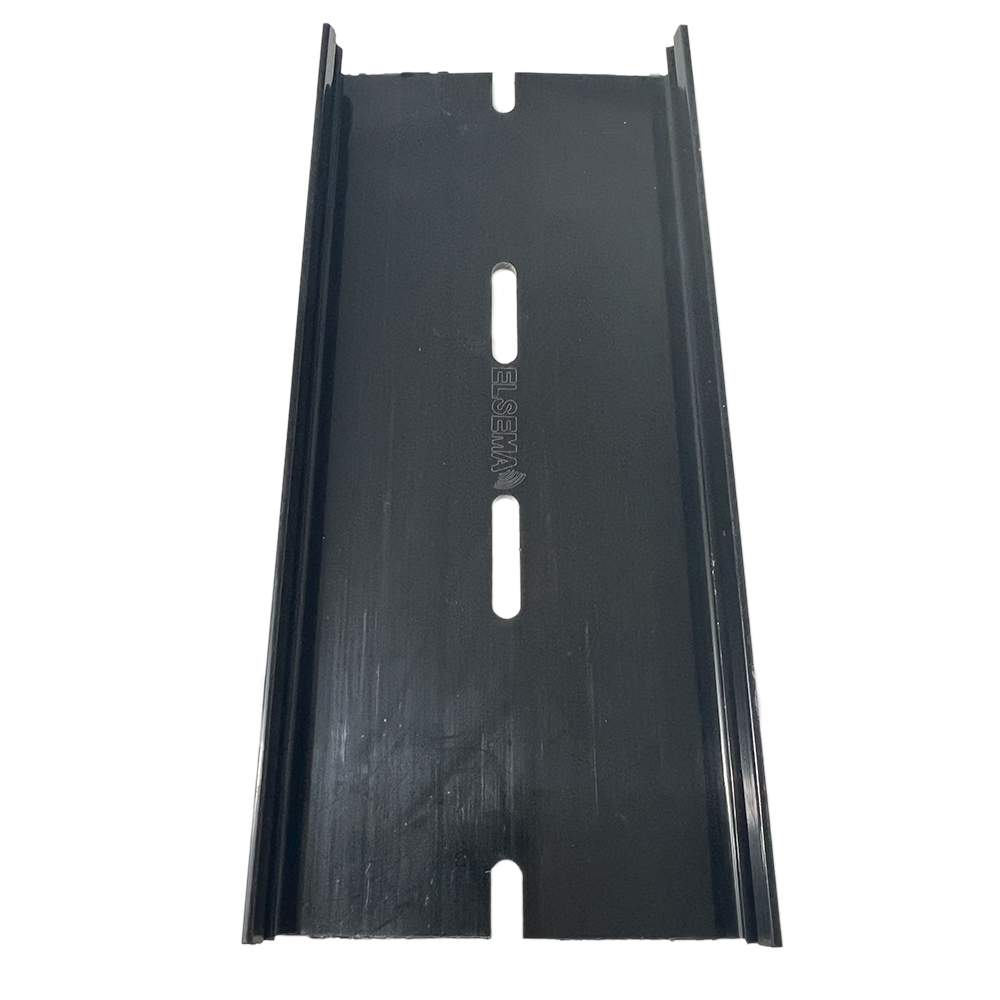

• Quickmount – QM150
• Installation Instructions

Compatibility List:

This FMR15104240 Receiver is suited for Industrial and Agricultural Devices requiring Momentary, latching, timed or security latching output modes.

• Pump Controls
• Long Distance Panic Buttons
• On/Off Applications in Agricultural Devices
• Security Alarm
• Basic Telemetry ie – Water level indications

This receiver gives you a four channel with relay output with a contact rating of 5 amps at 240VAC. The relay mode can be set to momentary, latching, security latching, adjustable timed off delays or pulsing.  The user can select 8 different narrow band frequencies and program unlimited number of transmitters to the receiver. With a narrow band 151MHz signal from the transmitter a line of sight operating range of 5000 metres is possible. The receiver uses a crystal oscillator circuit that ensures high frequency stability allowing optimal performance in the receiving range.
