DEA 281/2 Hardwired 2 Channel Receiver

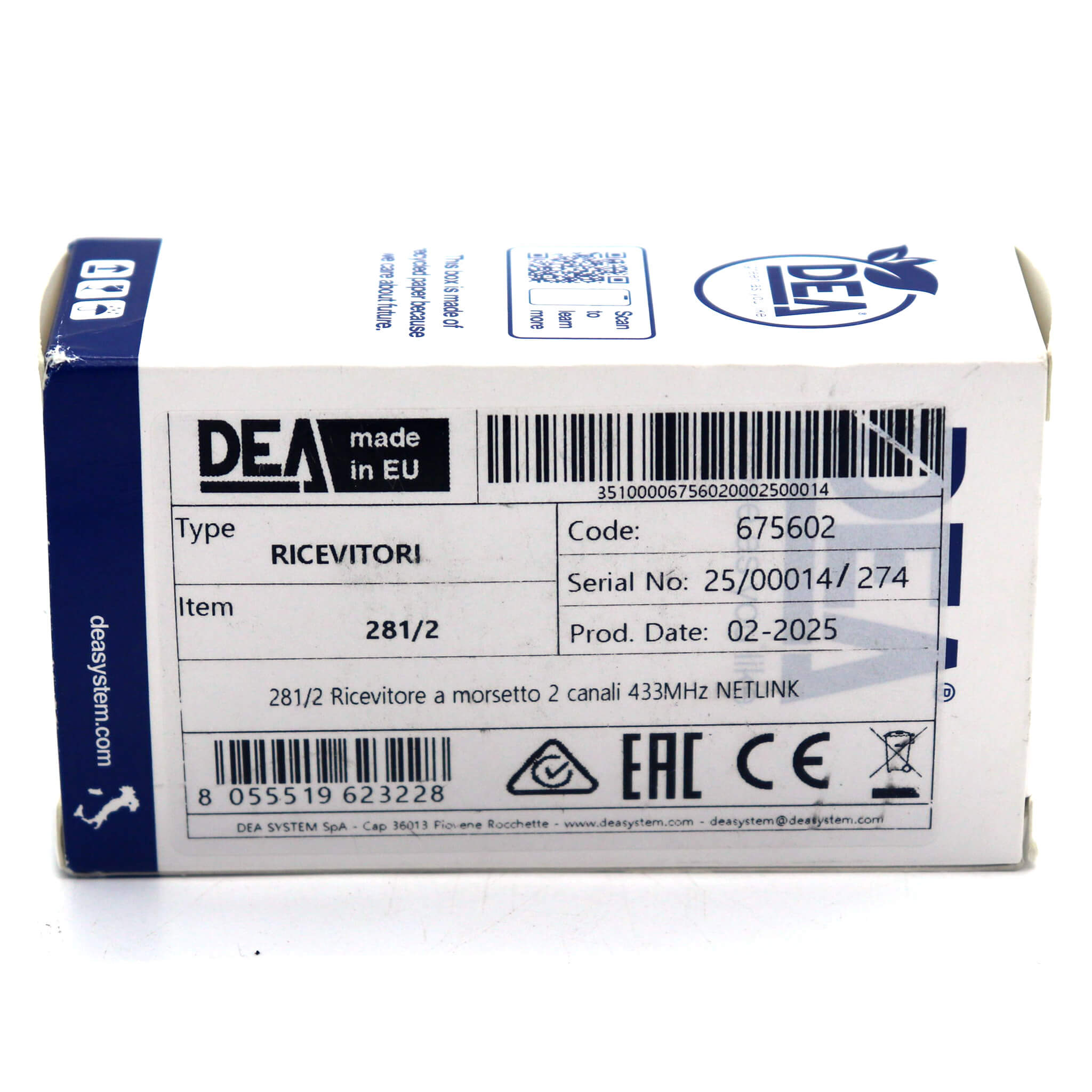

DEA 281/2 – 2 Channel Receiver (Hardwired, 433MHz, 1000 Remote Capacity)

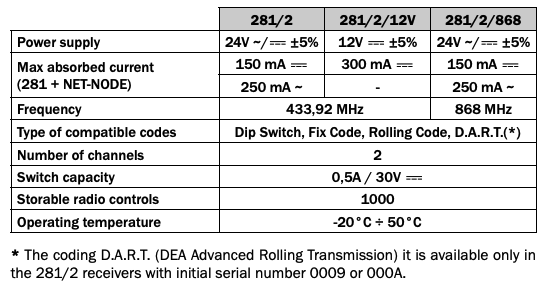

Key Features:

• 2 Channel Output: Control two devices with independent relay assignments.
• Remote Storage Capacity: Stores up to 1000 transmitters, perfect for large-scale installations.
• 433 MHz Frequency: Compatible with DEA remote transmitters and other 433 MHz systems.

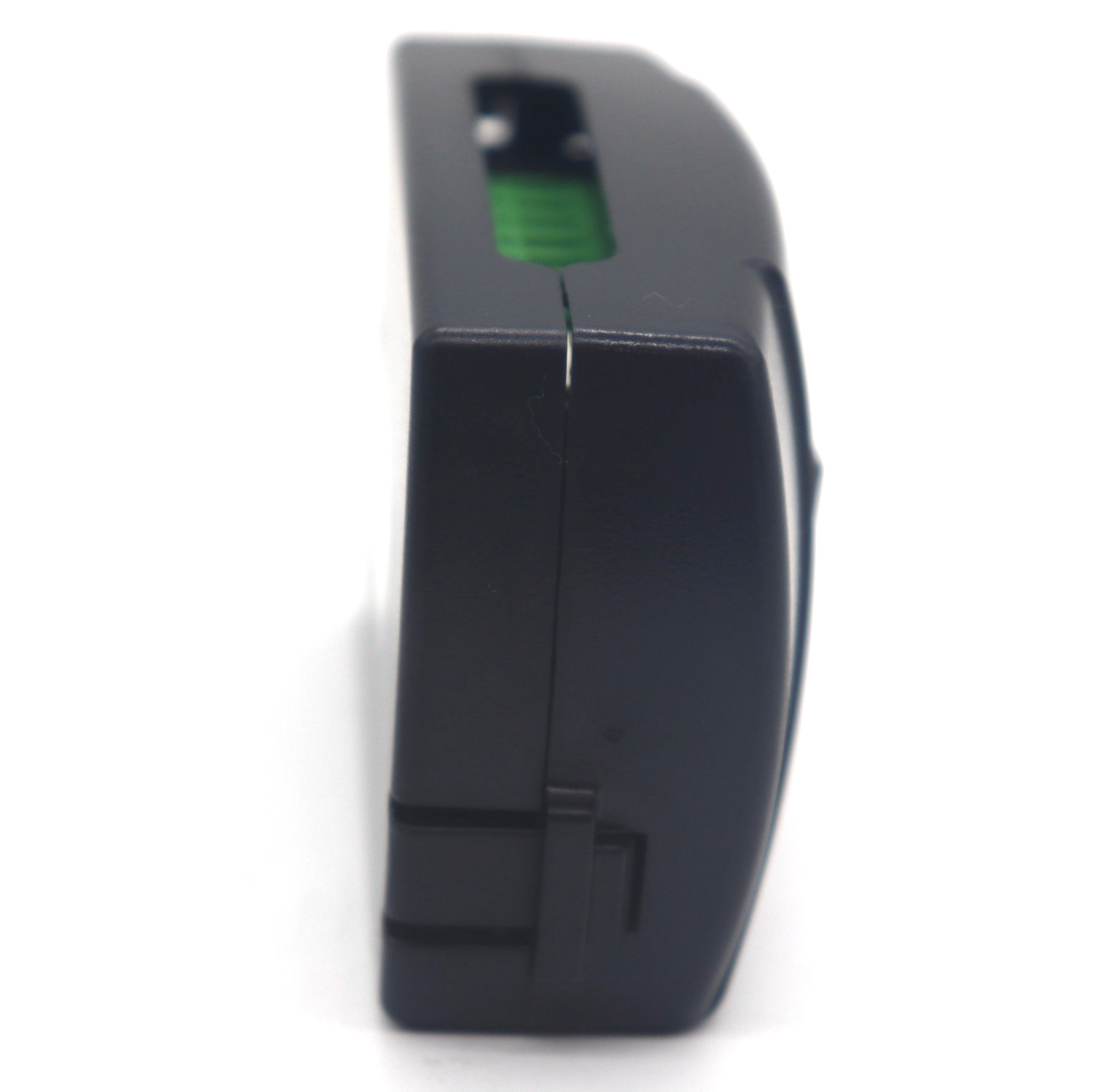

• Power Supply: Operates on 24V AC/DC.
• Contact Rating: Max 0.5A @ 30V DC per relay output.
• Installation: For indoor use only; designed for hardwired integration.

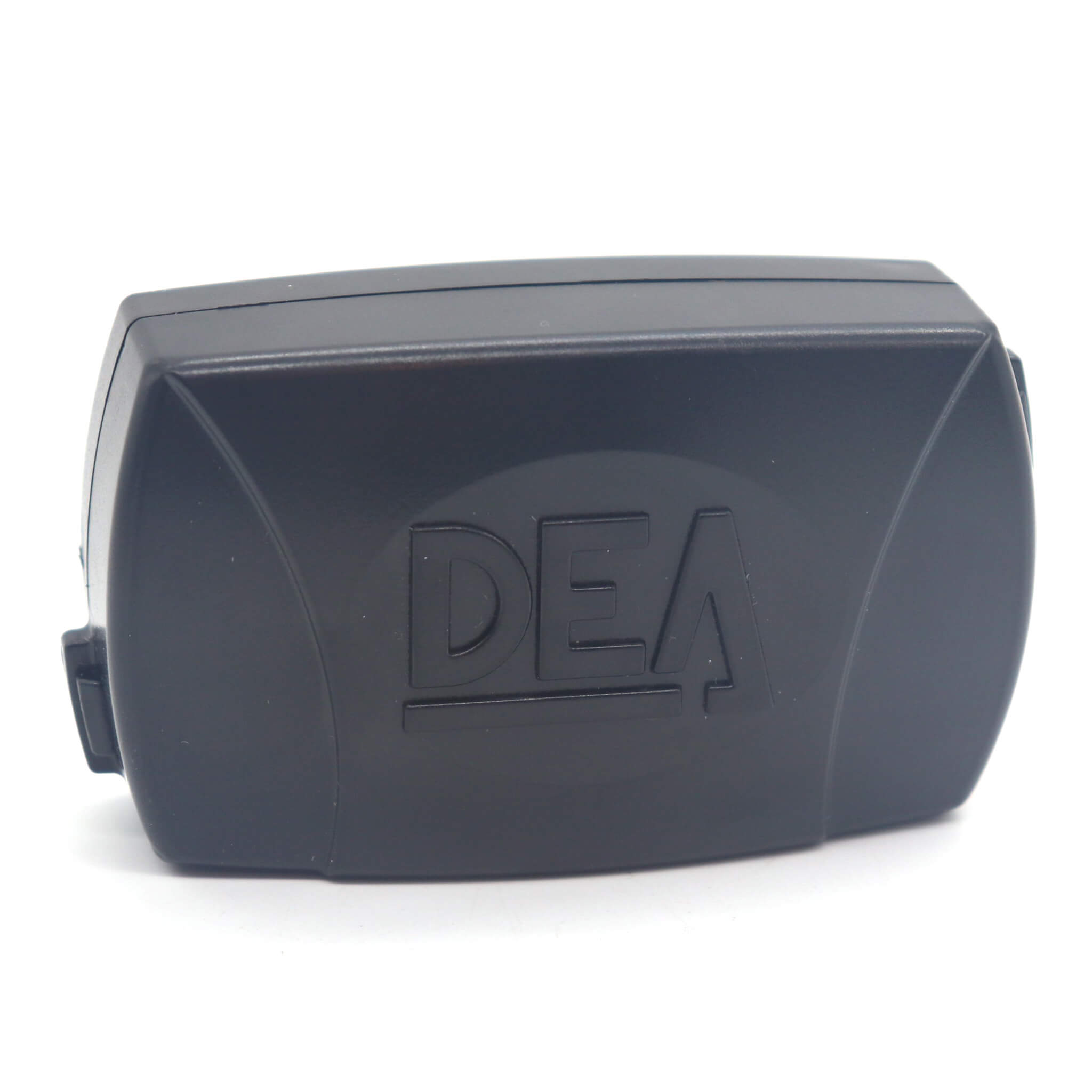

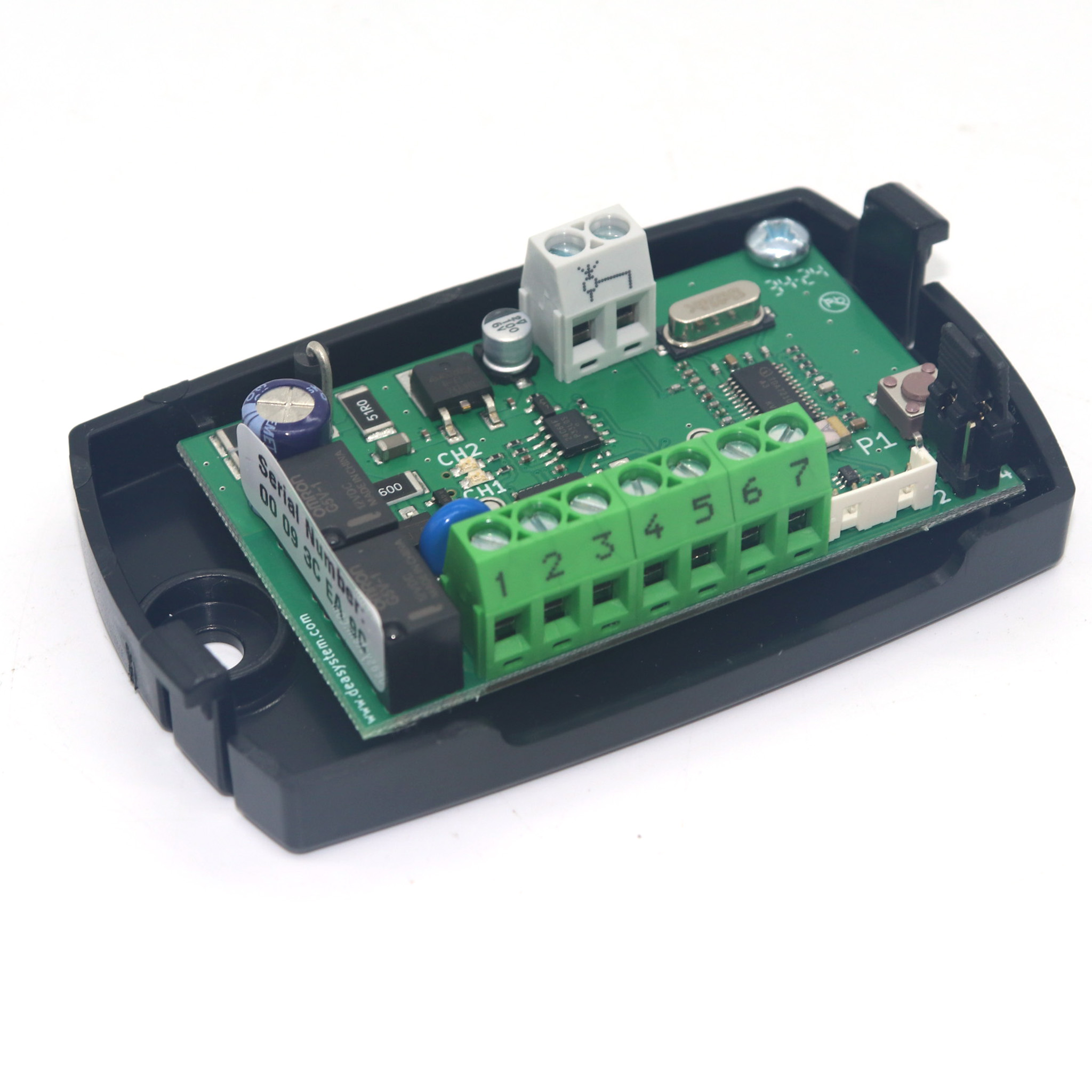

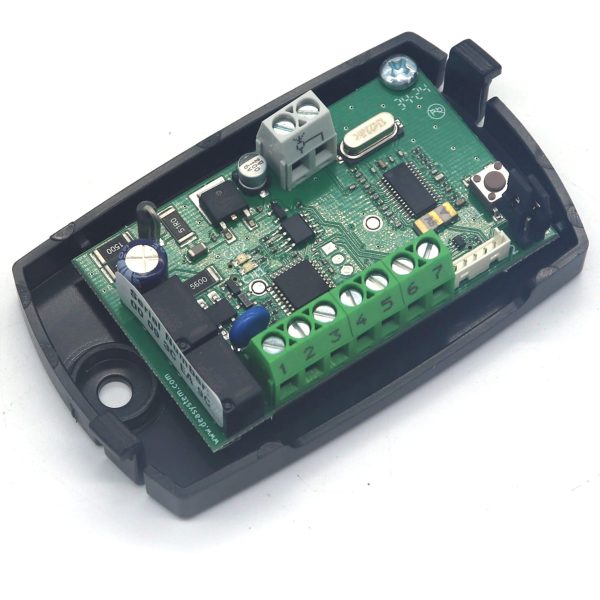

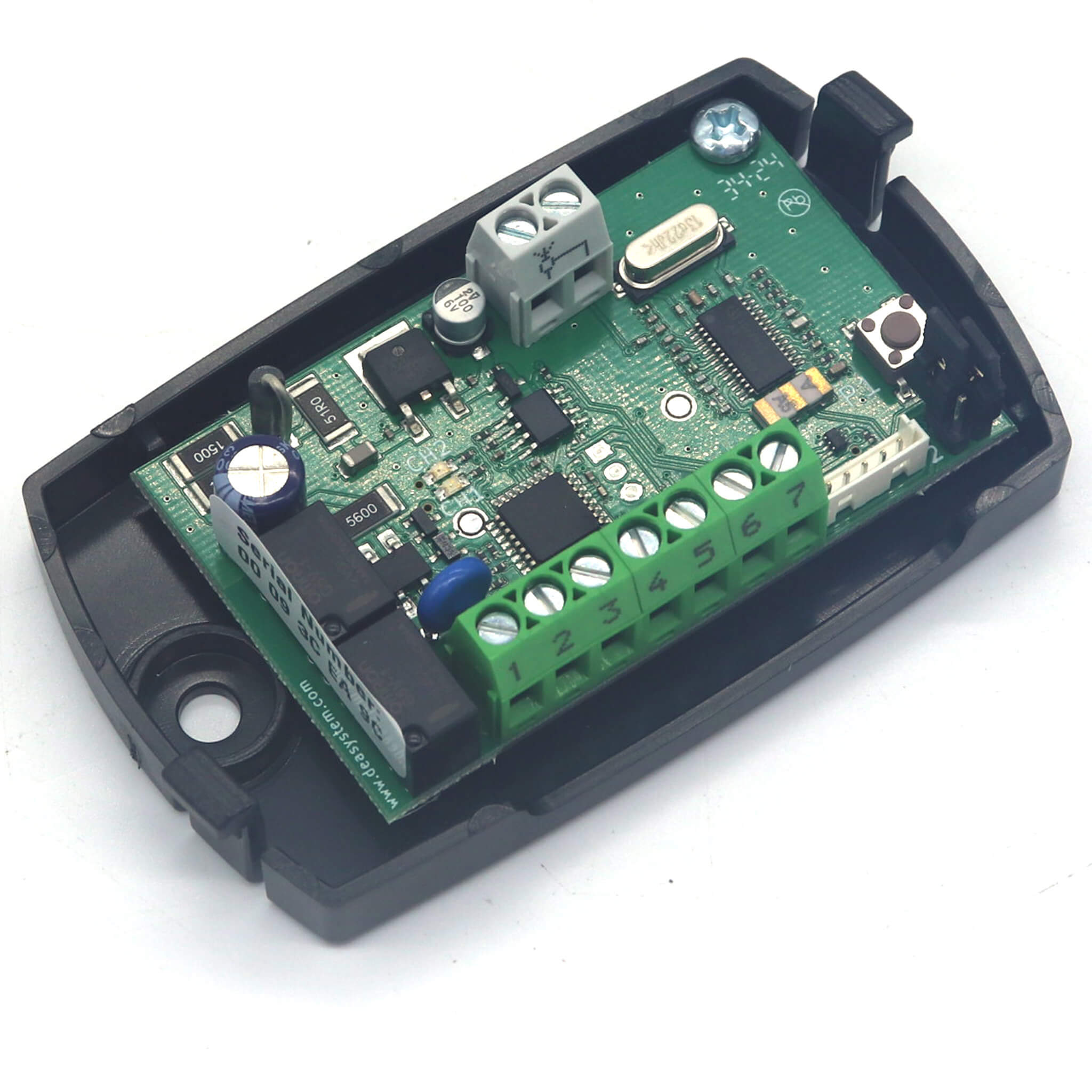

The DEA 281/2 is a versatile hardwired 2-channel receiver designed for seamless integration into gate and garage automation systems. Operating at 433 MHz, this high-capacity unit supports up to 1000 individual transmitters, making it an ideal choice for residential complexes, commercial buildings, and multi-access sites.

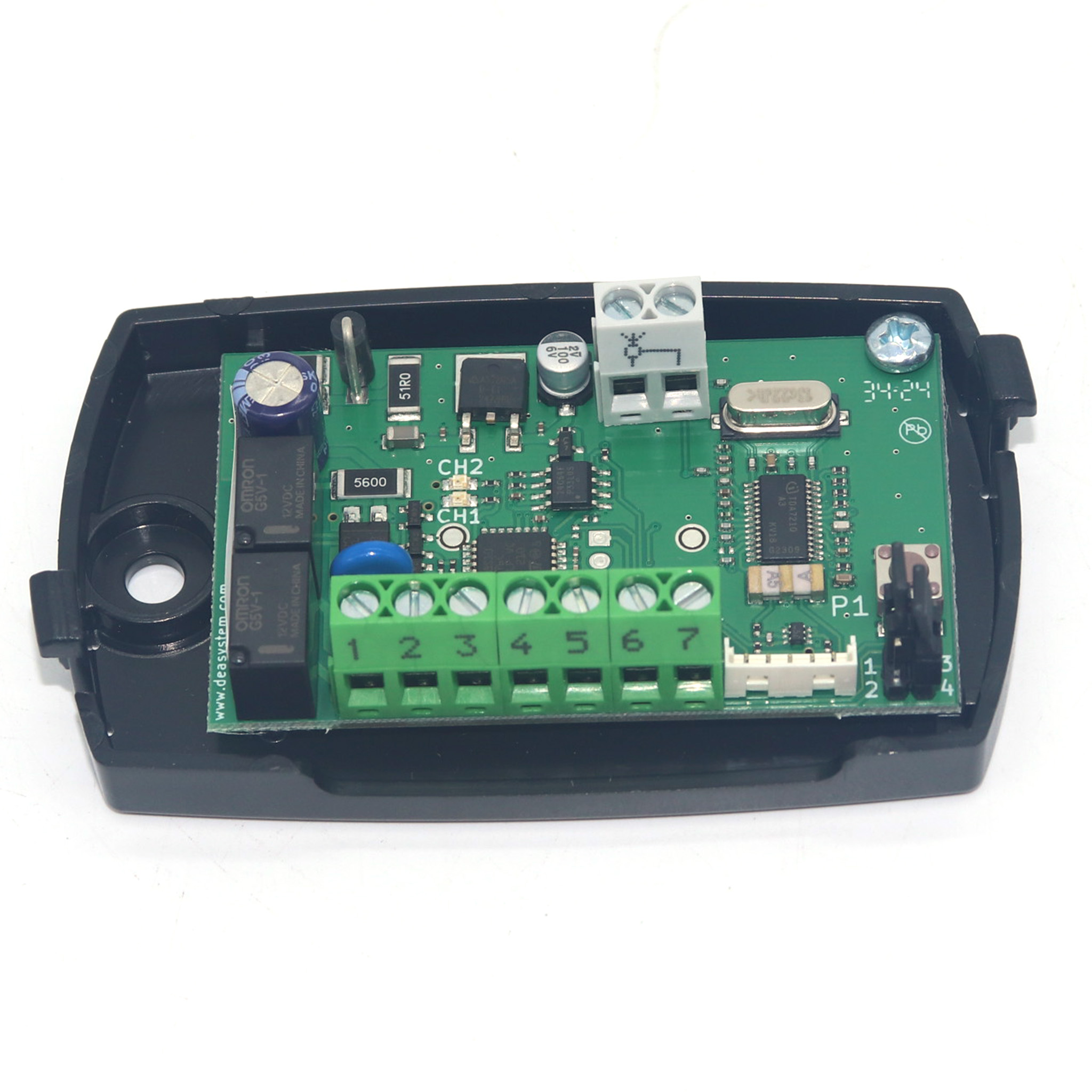

Each relay channel can be independently assigned to specific remote buttons, providing flexible control over two separate devices or access points. Whether you're managing multiple doors, gates, or access zones, the DEA 281/2 offers precise and reliable switching.

Whether you're upgrading an existing access control system or setting up a new one, the DEA 281/2 Receiver delivers the reliability, capacity, and flexibility expected from professional-grade automation components.

Compatible with:

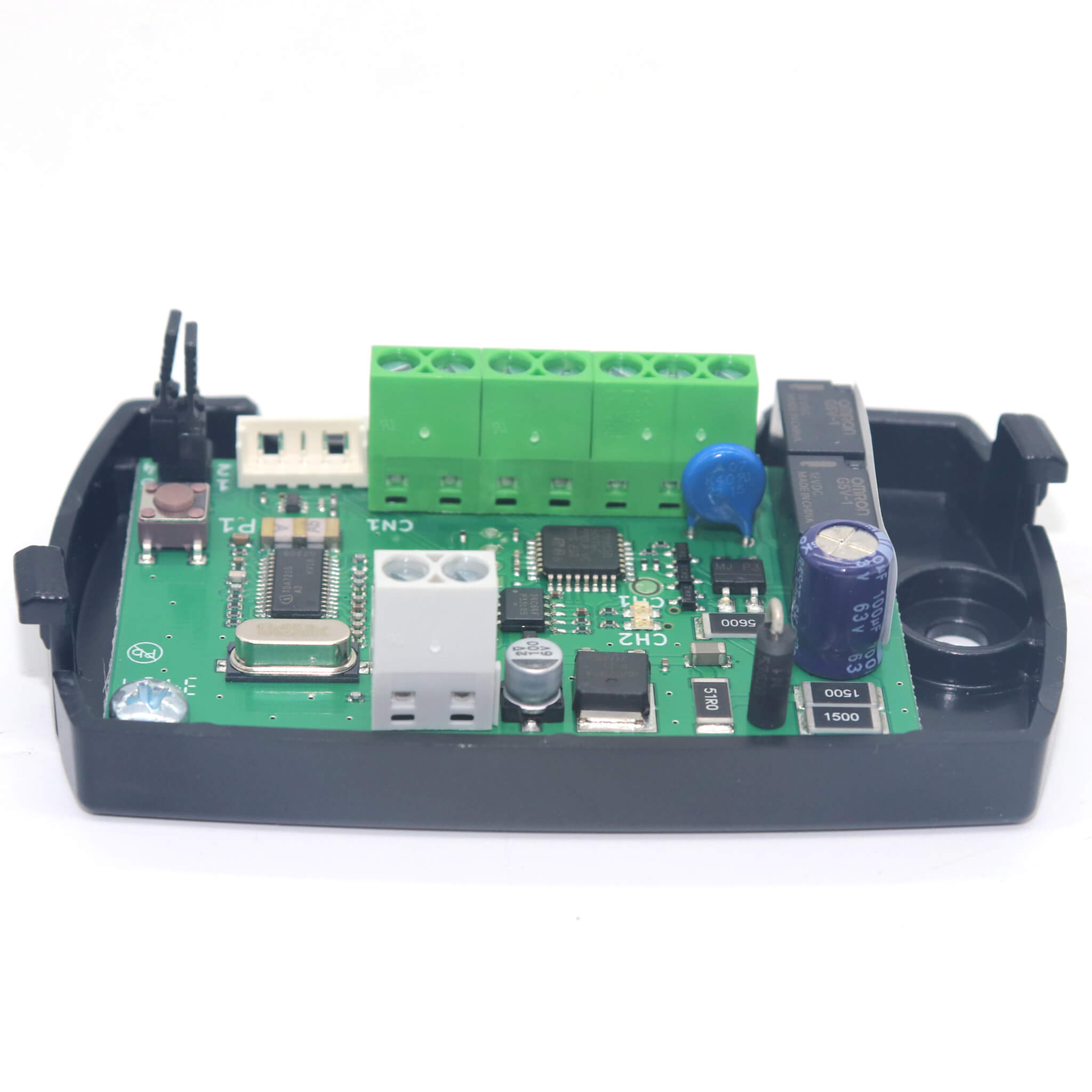

• DEA ZIGGY GT2 Remote

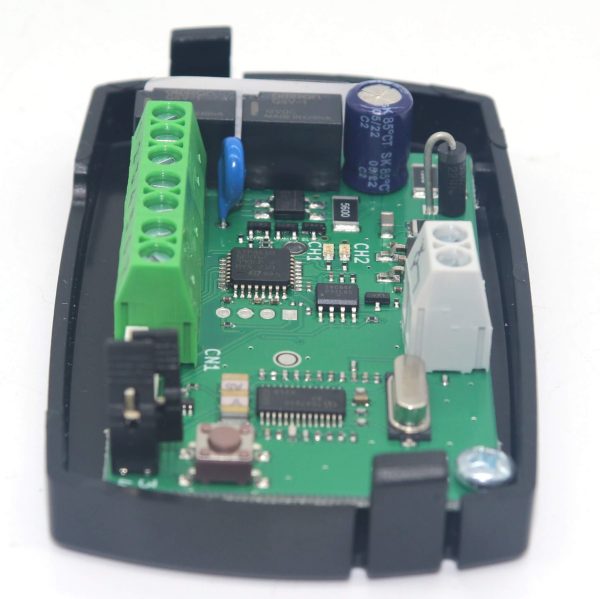

• DEA ZIGGY GT4 Remote
• DEA DigiRad Keypad
