ATA FHCRX2v2 Receiver
$117.95
Out of stock
Genuine ATA Receiver for TrioCode and TriTran 128 Bits Only

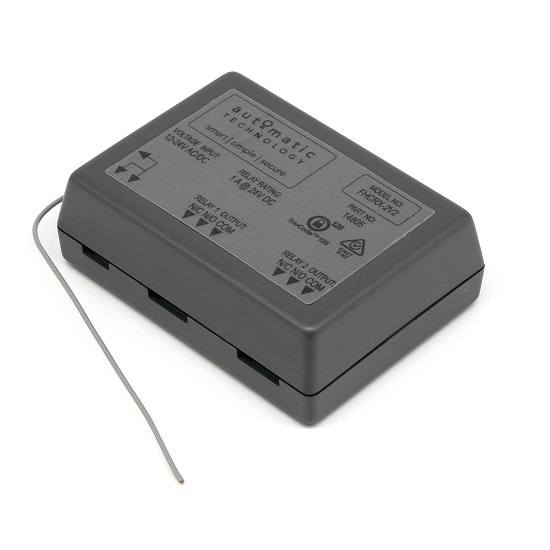

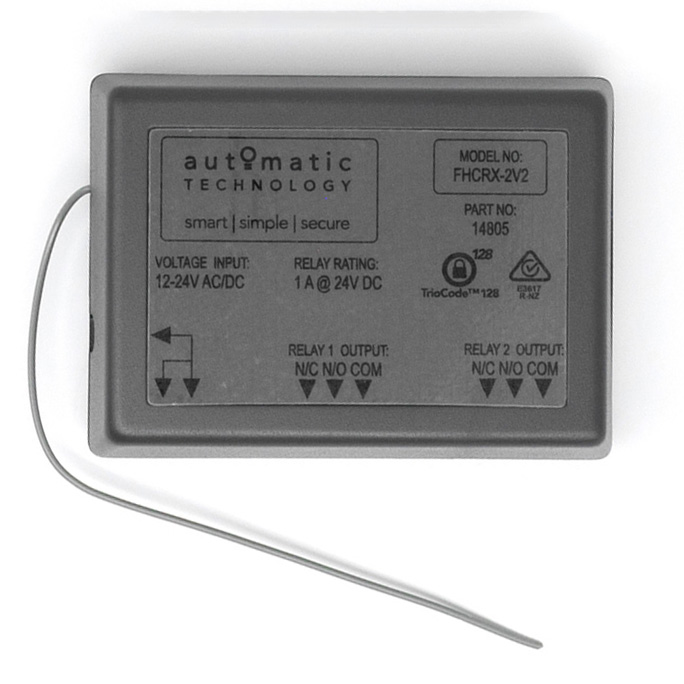

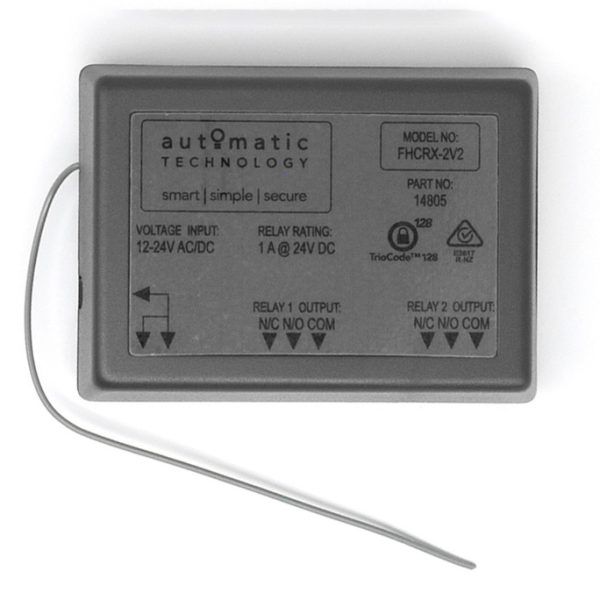

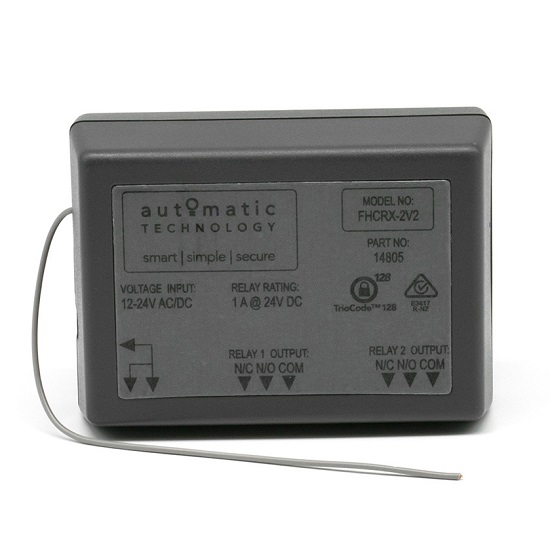

The ATA FHCRX2v2 Receiver is a stand-alone two-channel receiver designed to give you the flexibility of controlling multiple automation devices with a single remote. Perfect for linking compatible gates, garage doors, and other automation systems, it allows you to expand your setup with ease.
This updated version is only compatible with 128-bit ATA remotes using TrioCode 128 or TriTran+™ technology. It is not compatible with the original TrioCode 64-bit remotes (such as PTX5v1 or TriTran. If you require backwards compatibility with older ATA remotes, the original FHCRX2 model is recommended instead.
What’s Included:
- 1 × Brand New Genuine FHCRX2v2 Receiver
- Step-by-step Wiring Programming Instructions
Key Features:
- Two Channel Output: Control up to two separate devices from one receiver
- Versatile Integration: Connects to compatible non-ATA devices for seamless remote operation
- 2 Relays: provide normally open or normally closed control to control virtually any device.
- Large Remote Memory: Up to 250 remotes availability
- Simple Setup – Easy installation and programming for fast operation
- Reliable Performance – Built to ATA”s high standards for consistent, long-lasting use.
- Three Relay settings: Pulse Mode; Hold Mode or Timer Mode
Note: Timer mode requires an ATA Programmer

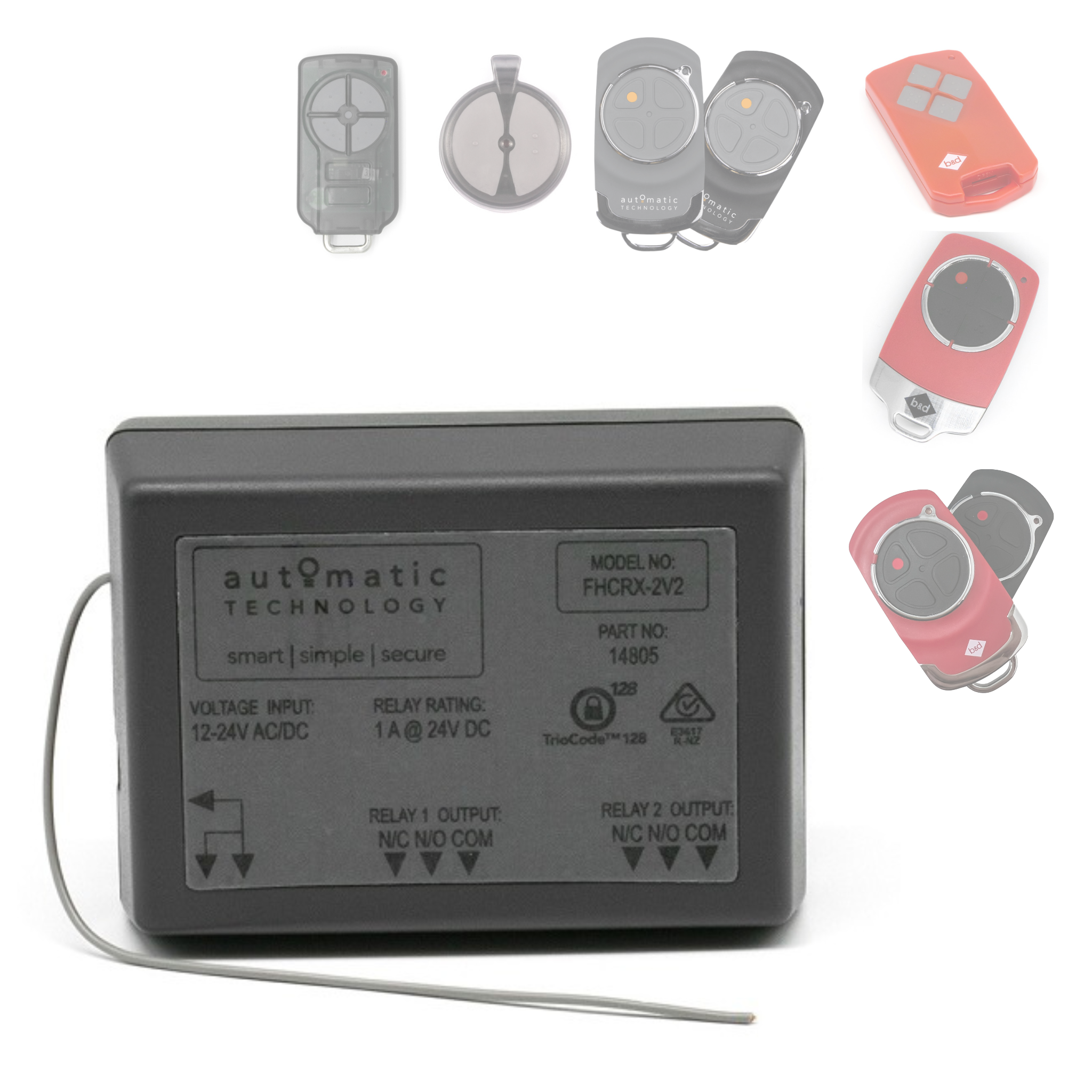

Compatible with:
Current Genuine Remotes:
- ATA PTX6v1
- B&D TB7
Discontinued Genuine Remotes:
- ATA PTX2v2
- ATA PTX5v2
- B&D TB5 (Grey Buttons)
- B&D TB6
Note: This receiver is not compatible with the 64Bit TrioCode and Tritran remotes or the ATA Securacode PTX4 remote.
Technical Specifications:
| Specifications | |
| Frequency | 433.47, 433.92 & 434.37Mhz |
| Code Type | 128 Bit Rolling Code |
| Body Type | Receiver |
| Number of Channels | 2 Channels (Normally Open or Normally Closed) |
| Case Colour | Grey |
| Size | 69 x 36 x 14mm |
| Power Supply | 12-24 AC/DC |
| Relay Contact Rating | 1 amp @ 24 volts DC |
| Memory Capacity | 250 Remotes |
| Antenna Connection | Optional Coaxial Antenna Available |
| Range | Up to 40 metres |
Additional information
| Weight | .106 kg |
|---|---|
| Brand | |
| MPN | |
| UPC | |
| AS62368.1 Battery Compliant | |
| Channels | |
| Compatible Brand | |
| Features | |
| Items Included | |
| Warranty | |
| Voltage |
