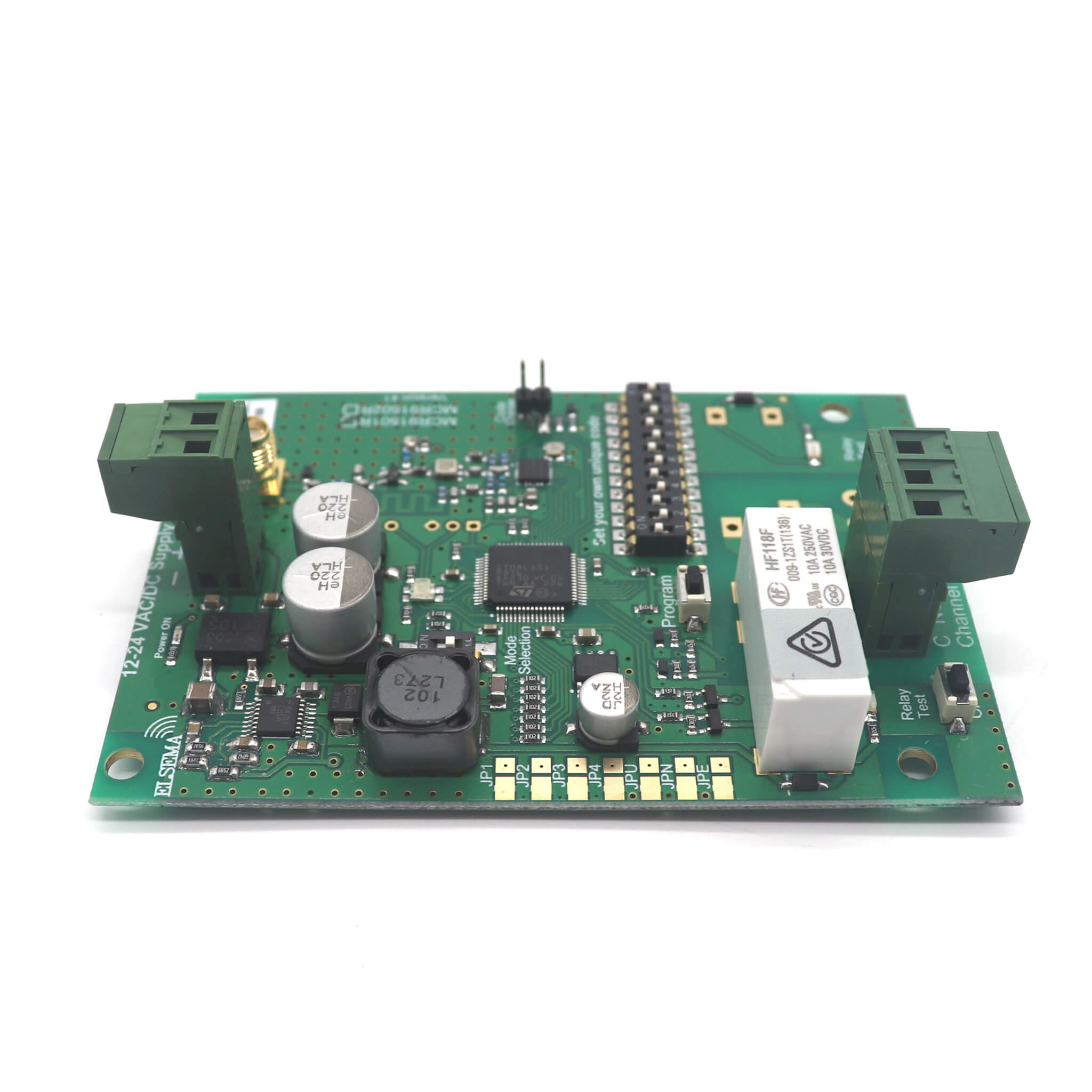

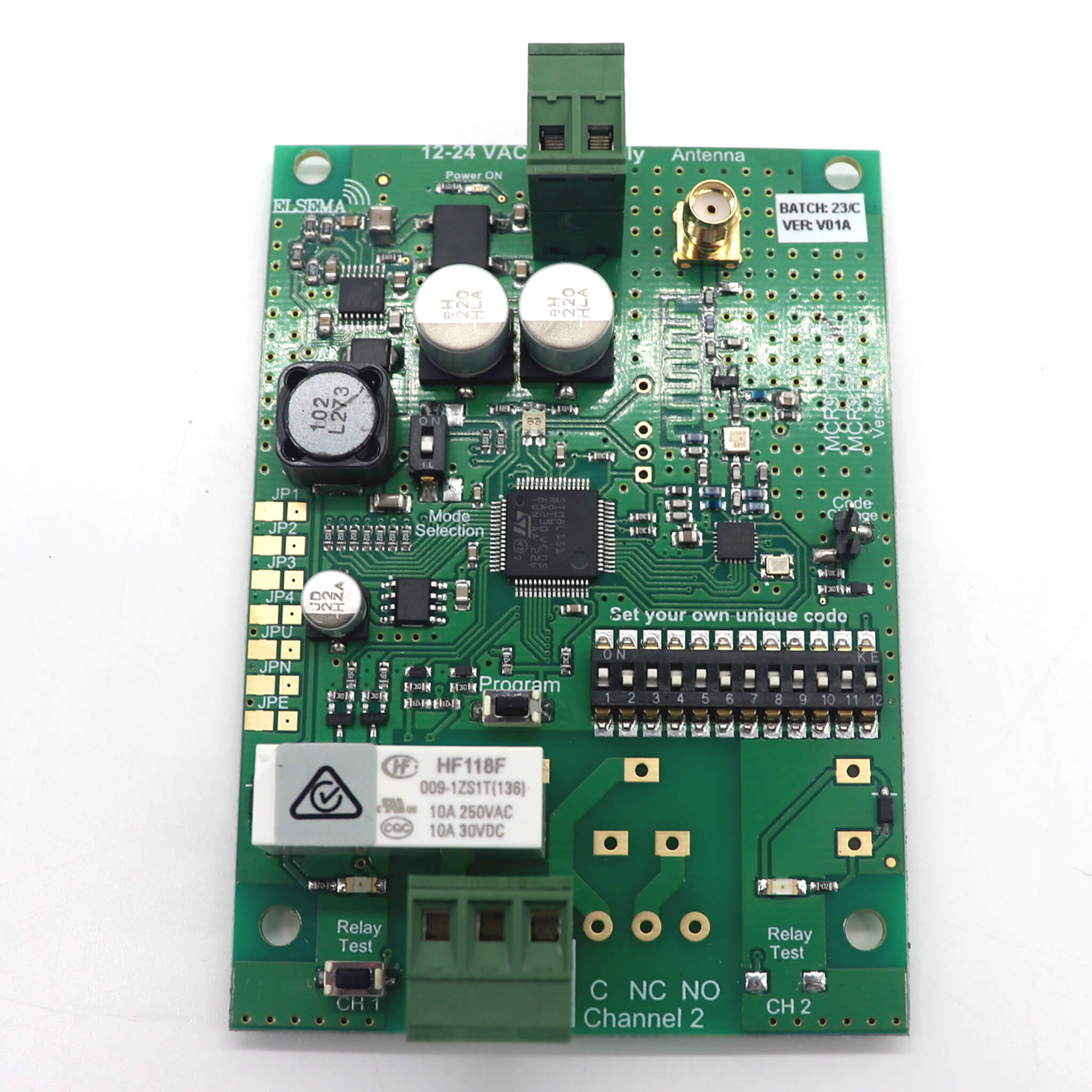

Elsema Multicode 915MHz 1 Ch Receiver MCR91501R
$111.95
95 in stock
1 Channel Multicode Receiver (915MHz)
The Elsema MCR91501R is a high-performance 1-channel Multicode Series Receiver designed for secure, interference-free control in industrial, commercial, and automation applications. Featuring a robust relay output rated at 8 Amps @ 240VAC, this receiver delivers reliable operation across a wide range of systems.
Equipped with Multicode Technology (MCT), the MCR91501R supports both encrypted coding for enhanced security and a simple 12-way dipswitch setup for quick programming. Coupled with Frequency Hopping Spread Spectrum (FHSS) technology, the receiver ensures resistance to interference, jamming, and eavesdropping—features typically reserved for military and medical-grade equipment.

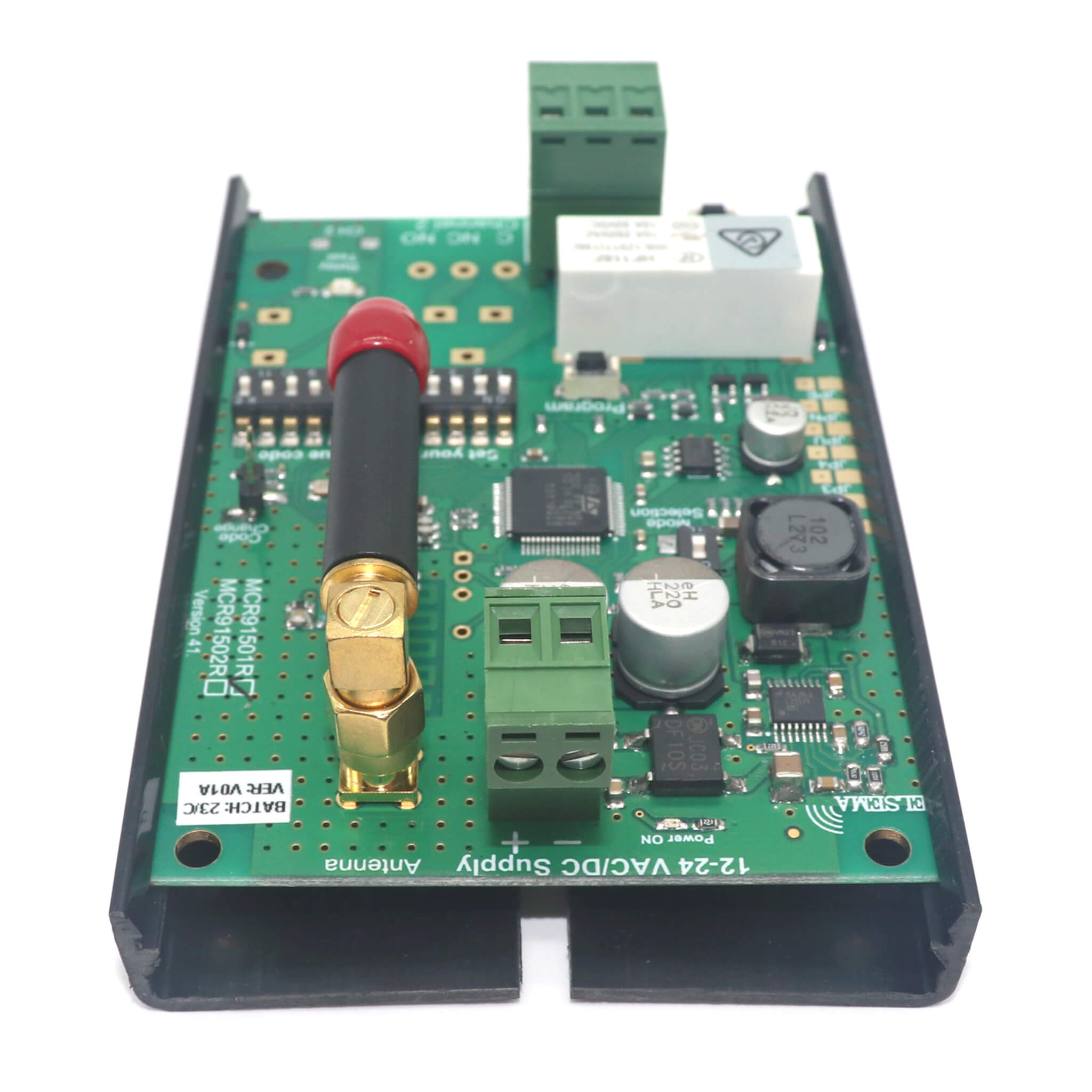

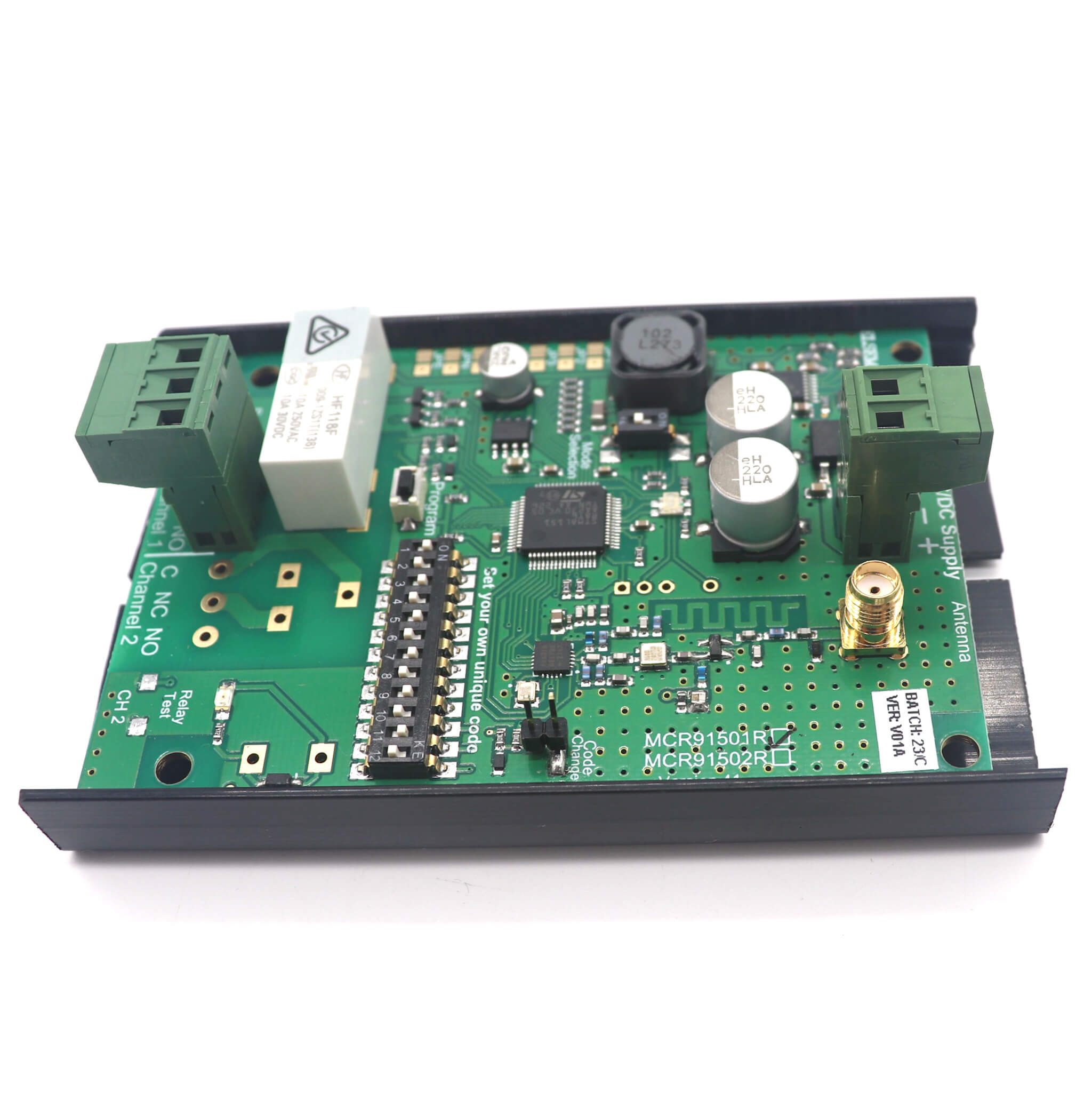

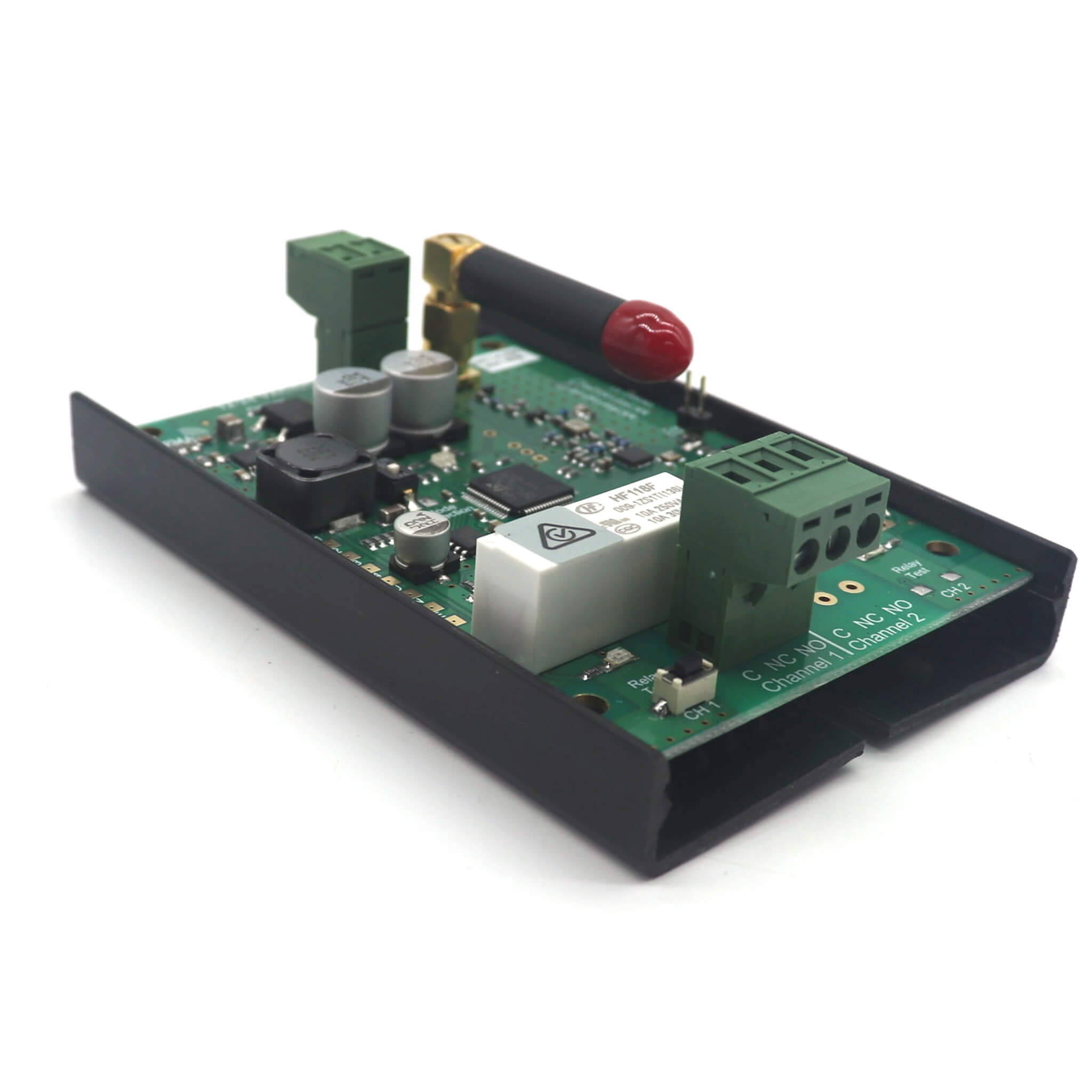

Designed for flexibility and ease of installation, the unit includes pluggable terminal blocks, a high-quality SMA antenna connector, and a Quick Mount (QM100) bracket.
What’s included:
- Genuine Elsema MCR91501R – 1 Channel Receiver with Relay Output
- 1 x Quickmount
- 1 x Micro Antenna
- Easy-To-Follow Detailed Programming Instructions
Commonly used on Water Pumps, Water Trucks, Concrete Pumps and Tow Truck Winches.
The Elsema Multicode 915MHz 1 Ch Receiver MCR91501R is a premium quality Industrial Remotes from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58911. Secure your Elsema Multicode 915MHz 1 Ch Receiver MCR91501R today with confidence!
Key Features:
- Frequency Hopping: Operates between 915-929MHz for reliable performance
- Dual Coding Options: Choose between 12-way dipswitch coding or encrypted wireless coding (over 16 million codes)
- Selectable Output Modes: Momentary or latching, configurable via dipswitch
- Long Range: Up to 400m operating distance with Elsema MCT915 series transmitters and Antennas
- High Stability: Crystal-controlled for accuracy and consistent performance
- LED Signal Indicatory: On-board red LED confirms signal reception
- Flexible Power: Wide voltage range (12-24V AC/DC) with low current consumption

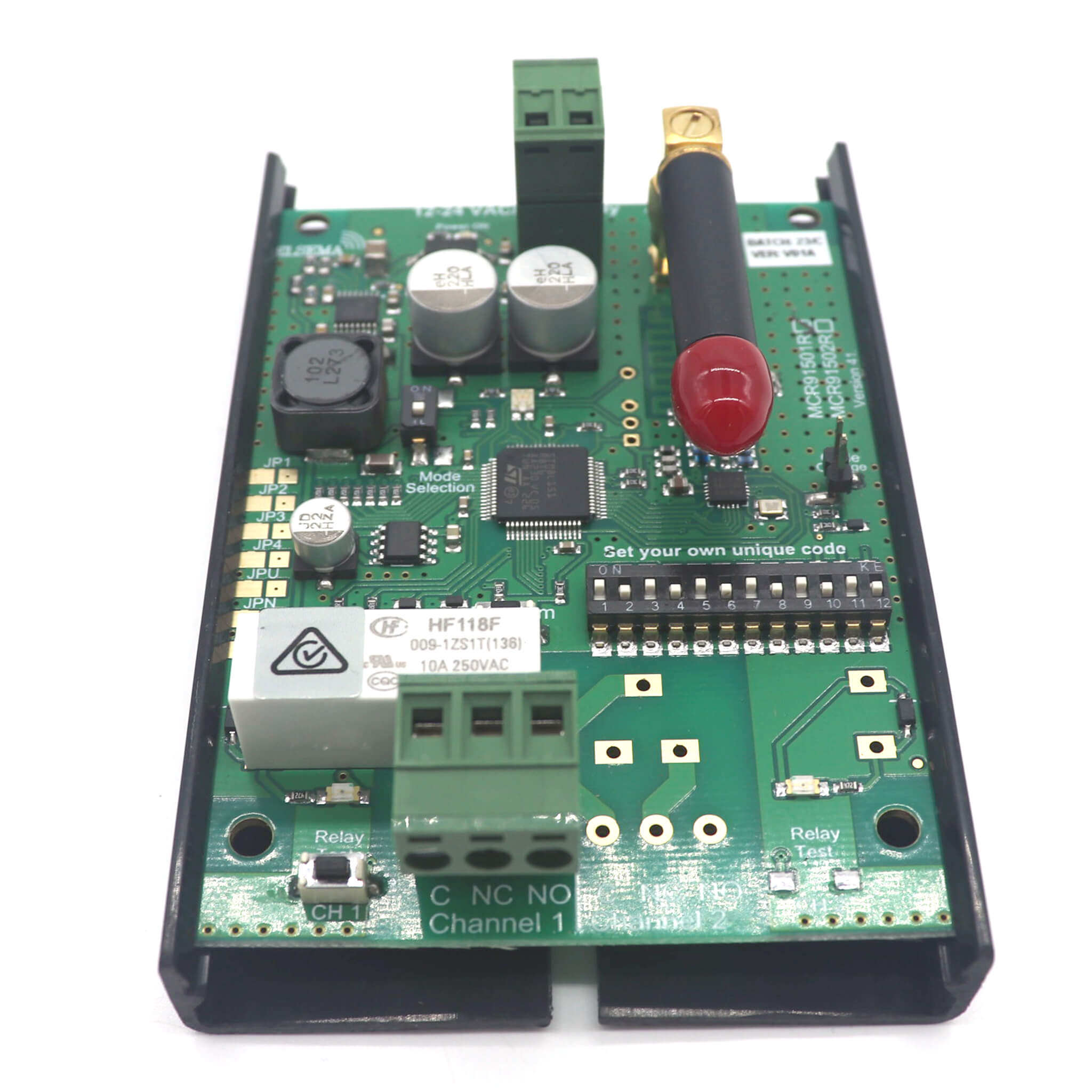

- Robust Relay Output: 1 x changeover relay (C, NC, NO) rated at 8A @ 240VAC
- Australian Compliance: Meets local frequency regulations for Australia*
Compatible with:
- MCT91501
- MCT91502
- MCT91504
- MCT91508
- MCT91512
- MCT91516
Ideals Applications:
- Domestic & Residential Use - Automatic Gates, Garages, Roller Shutters, Garden Lighting and Home Security
- Industrial Applications - Factory Automation, Machinery Equipment
- Construction Industry - Concrete Pumps, Heavy Machinery operation, Site Lighting
- Commercial Applications - Security Systems, Lighting, Access Control
- Agricultural Applications - Irrigation systems, Pump and Motor Control, Spraying reels, gates and machinery
- Healthcare Applications - Nurse and Emergency Calls,
- Entertainment Applications - Stage Lighting, Field Lighting, Scoreboards
- Transport and Marine - Remote operation of car stackers, winch operation, anchors and marine equipment control
- Mining and Quarrying - Water cart filling and spraying shaft roads, equipment control
- Solar Farms and Energy - Remote switchover of solar grids,
Technical Specifications:
| Supply Voltage | 12 – 24 Volts AC or DC |
| Current Consumption | 30 mA stand by at 12VDC |
| Frequency Band | 915 to 928 MHz for Australia |
| Operating Temperature Range | -5 to 50°C |
| Decoding Systems | On board 12-way code switch (4096 Codes) Encrypted coding (Over 16 million codes) |
| Outputs | One change over relay outputs, rated at 8 Amps 240VAC |

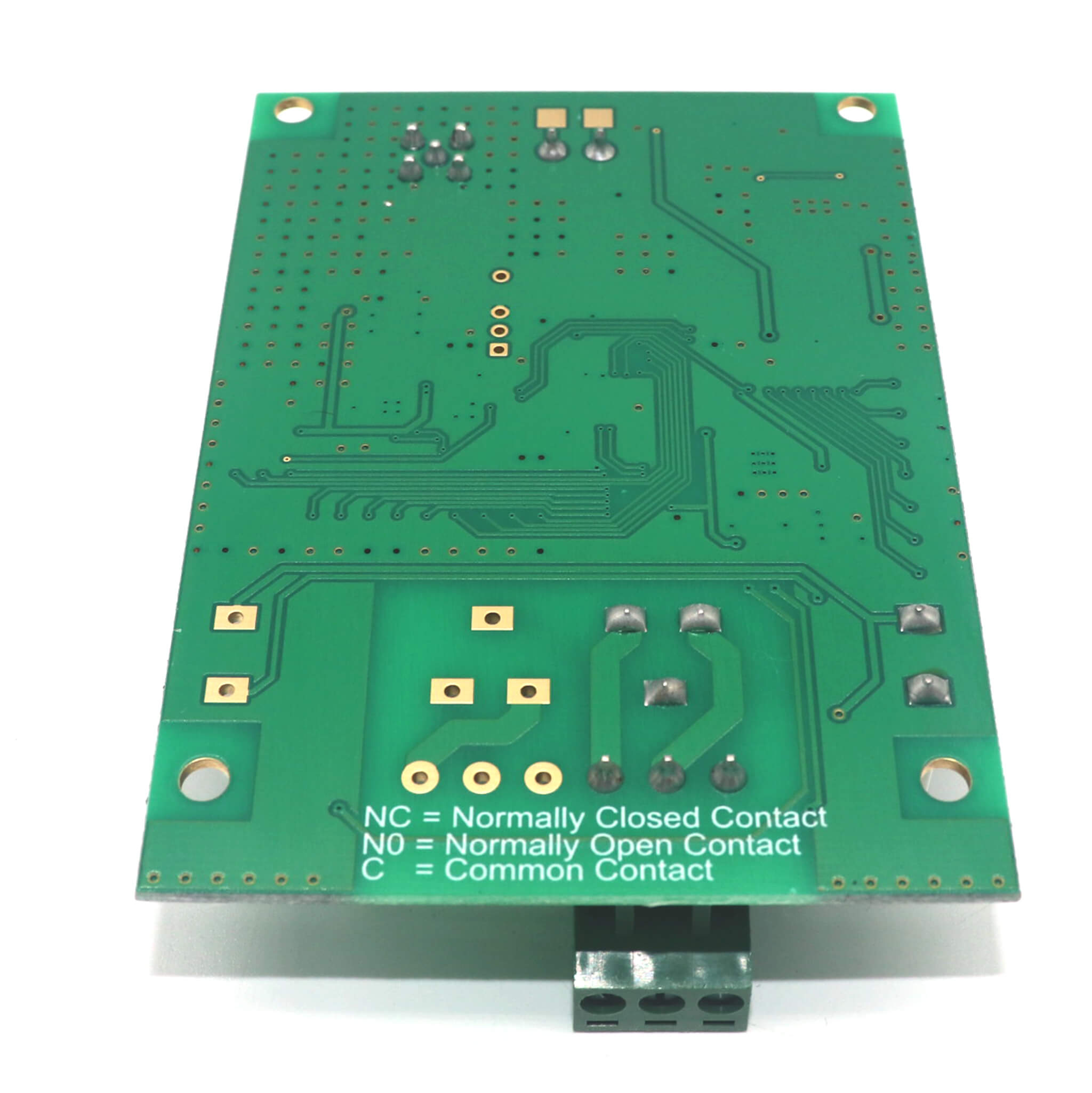

| Relay Contacts | Common (C), Normally Closed (NC) & Normally Open (NO) |
| Operating Range | Up to 400m |
| Mounting Hole Size | 3.97 mm or 5/32" |
| Dimensions | 95 x 70 x 30 mm |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Additional information
| Weight | 0.22 kg |
|---|---|
| Brand | |
| Channels | |
| MPN | |
| UPC |
