Elsema 151MHz 1 ch TRANSMITTER FMT15101E

Brand: Elsema

Elsema Logo
Elsema 151MHz 1 ch TRANSMITTER FMT15101E
Elsema FMT15101E

Elsema 151MHz 1 ch TRANSMITTER FMT15101E

Brand: Elsema

Elsema Logo

Includes:

  • Genuine Transmitter in enclosure
  • Programming Instructions
  • 2 Years Manufacturers Warranty*
  • Free Shipping Australia-Wide*

$144.95

Availability:

In stock

Availability:

In stock

Includes:

  • Genuine Transmitter in enclosure
  • Programming Instructions
  • 2 Years Manufacturers Warranty*
  • Free Shipping Australia-Wide*

Features:

  • Long range – up to 5km.
  • 100mW Transmitter with current consumption of 85mA
  • Not affected by Natural or man-made electrical interference
  • Specially programmed micro-controller
  • Simultaneous channel transmission is possible; i.e. more than one channel can be activated at a time.
  • 2 Years Manufacturers Warranty*
  • Free Shipping Australia-Wide*

Includes:

  • Genuine Transmitter in enclosure
  • Programming Instructions

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we’ll be happy to assist!

Suited for:

  • Pump Control
  • Long distance panic button
  • On/Off applications in agricultural devices
  • Security alarm
  • Basic Telemetry eg. Water level indication



Type

Brand

Elsema

Frequency

151

151 Series

Transmitter

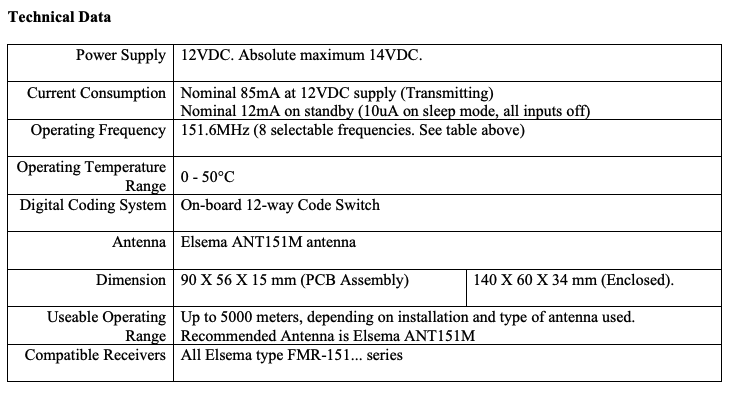

Power Supply11 to 13.6 VDC (for constant RF-Output) , screw type terminal

Absolute maximum 14VDC

Current ConsumptionNominal 85mA at 12VDC supply (Transmitting) Nominal 12mA on standby (10uA on sleep mode, all inputs off)
Operating Frequency151.6MHz (8 selectable frequencies)
Operating Temperature Range0 – 50°C
Type of EmissionNarrow-band-width Frequency Modulation
R.F. Output Power100mW, into 50 ohms SO239 socket
Baud Rate40 to 4800bps
Digital Coding System On-board12-way Code Switch
AntennaSO239 socket is provided
Dimension90 X 56 X 15 mm

(PCB Assembly)

140 X 60 X 34 mm

(Enclosed).

Mounting Hole Size4.00 mm or 5/32 ” (PCB Assembly)4.76 mm or 3/16″
Mounting Hole SpacingLength 76 mm (3.00″) Width 45 mm (1.77″) (PCB Assembly)Length 125 mm (4.92″) Width 45 mm (1.77″) (Enclosed).
Weight85 grams (PCB Assembly)225 grams (Enclosed).
Useable Operating RangeUp to 5000 meters, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M

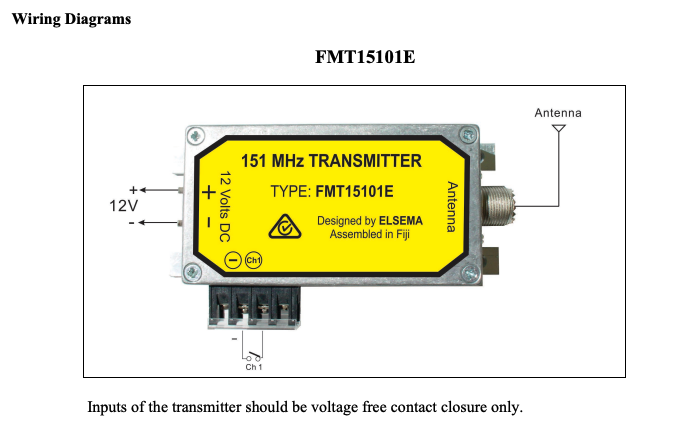

Programming Instructions for the FMT15101E
