Elsema 433 Antenna 40mm - ANT433LP

Brand: Elsema

Elsema Logo

Elsema 433 Antenna 40mm – ANT433LP

Brand: Elsema

Elsema Logo

Includes:

  • Low Profile Antenna – 4cm Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket
  • Free Standard Shipping Australia-wide*
  • 2 Years Manufacturers Warranty*

$69.95

Availability:

In stock

Availability:

In stock

Includes:

  • Low Profile Antenna – 4cm Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket
  • Free Standard Shipping Australia-wide*
  • 2 Years Manufacturers Warranty*

Features:

  • Tuned to the 433MHz band
  • SMA termination
  • Short length at 40mm
  • High Impact Delrin Plastic
  • UV Stabilised
  • Free Standard Shipping Australia-wide*
  • 2 Years Manufacturers Warranty*

Includes:

  • Low Profile Antenna – 4cm Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we'll be happy to assist!

The ANT433LP is a Low Profile antenna with a length of 40mm and protected with a tamper proof casing. The antenna comes standard with a universal mounting bracket for wall or roof installations and includes 3.6 metres of low loss coaxial cable terminated with a SMA connector

Weight.250 kg
Brand

Elsema

MPN

GIGALINK 433.92Mhz

UPC

Does not apply

Type

Warranty

2 Years*

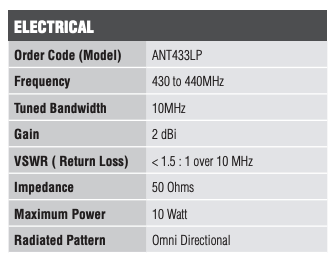

Electrical

Order CodeANT433LP
Frequency430 to 440MHz
Tuned Bandwidth10MHz
Gain2.0 dBi

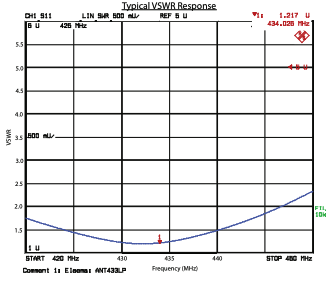

VSWR (Return Loss)< 1.5 : 1 over 10 MHz
Impedance50 Ohms
Maximum Power10 Watt
Radiated PatternOmni Directional

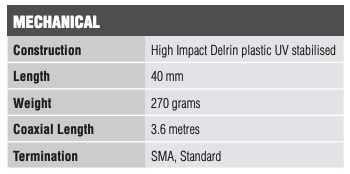

Mechanical

ConstructionHigh Impact Delrin plastic UV stabilised
Length40mm
Weight470 grams
Coaxial Length3.6 metres Standard
TerminationSMA, Standard







Elsema 433 Antenna 40mm Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Features:

  • Tuned to the 433MHz band
  • SMA termination
  • Short length at 40mm
  • High Impact Delrin Plastic
  • UV Stabilised
  • Free Standard Shipping Australia-wide*
  • 2 Years Manufacturers Warranty*

Includes:

  • Low Profile Antenna – 4cm Long
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket

Please note: Although this item is marked as in stock, our Elsema stock is consistently replenished to meet demand. Due to frequent bulk orders, stock levels can be challenging to determine in real-time. If you need an estimated time of arrival (ETA), please feel free to contact us, and we'll be happy to assist!

The ANT433LP is a Low Profile antenna with a length of 40mm and protected with a tamper proof casing. The antenna comes standard with a universal mounting bracket for wall or roof installations and includes 3.6 metres of low loss coaxial cable terminated with a SMA connector

Weight.250 kg
Brand

Elsema

MPN

GIGALINK 433.92Mhz

UPC

Does not apply

Type

Warranty

2 Years*



Electrical

Order CodeANT433LP
Frequency430 to 440MHz
Tuned Bandwidth10MHz
Gain2.0 dBi
VSWR (Return Loss)< 1.5 : 1 over 10 MHz
Impedance50 Ohms
Maximum Power10 Watt
Radiated PatternOmni Directional



Mechanical

ConstructionHigh Impact Delrin plastic UV stabilised
Length40mm
Weight470 grams
Coaxial Length3.6 metres Standard
TerminationSMA, Standard
